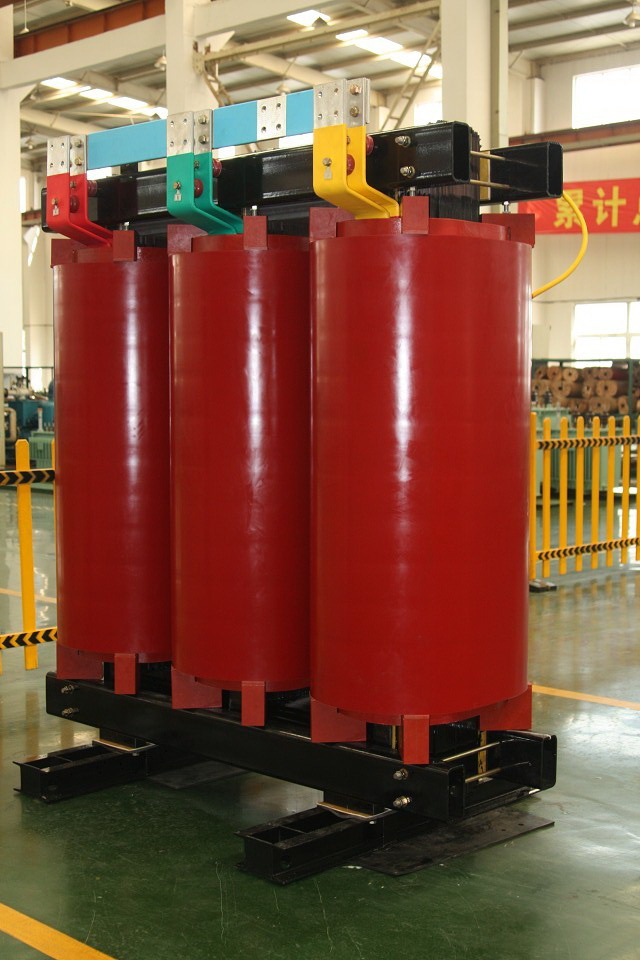

Self Cooled Distribution Transformer
Product Specifications
| Prod Model: |
ET-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
50-5000kVA |
| High Voltage: |
6.3, 10, 22, 35kv |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
Product Description
Detailed Product Description:
Features: Low loss, Low noise, No leakage, Easy installation, Maintenance free.
| Item Model | Capacity (KVA) | Voltage Combination (KV) | Vector Group | Po (W) | PK 120°C (W) | Io (%) | UK120°C | Sound Level (dB) | Weight (Kg) |
| HV | LV |
| SC10-30/10 | 30 | 6±5% | 0.4 | D,yn11 | 180 | 725 | 1.6 | 4 | 42 | 270 |
| SC10-50/10 | 50 | 250 | 985 | 1.2 | 400 |
| SC10-80/10 | 80 | 355 | 1160 | 1 | 630 |
| SC10-100/10 | 100 | 390 | 1500 | 0.8 | 700 |
| SC10-125/10 | 125 | 460 | 1800 | 0.8 | 730 |
| SC10-160/10 | 160 | 530 | 2100 | 0.8 | 44 | 900 |
| SCB10-200/10 | 200 | 6.3±2×2.5% | 605 | 2500 | 0.8 | 1070 |
| SCB10-250/10 | 250 | 720 | 2740 | 0.7 | 1200 |
| SCB10-315/10 | 315 | 875 | 3440 | 0.7 | 46 | 1440 |
| SCB10-400/10 | 400 | 970 | 3960 | 0.7 | 1650 |
| SCB10-500/10 | 500 | Y,yn0 | 1150 | 4515 | 0.7 | 1940 |
| SCB10-630/10 | 630 | 1320 | 5800 | 0.6 | 2100 |
| SCB10-630/10 | 630 | 1290 | 5750 | 0.6 | 6 | 48 | 2240 |
| SCB10-800/10 | 800 | 1510 | 6920 | 0.6 | 2680 |
| SCB10-1000/10 | 1000 | 1790 | 8080 | 0.6 | 3140 |
| SCB10-1250/10 | 1250 | 10 | 2080 | 9550 | 0.5 | 50 | 3700 |
| SCB10-1600/10 | 1600 | 2400 | 11600 | 0.5 | 52 | 4500 |
| SCB10-2000/10 | 2000 | 3300 | 13400 | 0.5 | 54 | 5490 |
| SCB10-2500/10 | 2500 | 3920 | 17100 | 0.5 | 56 | 5900 |
Eternoo machinery Co., Ltd is a comprehensive manufacturing and trading company. Our cooperative factory has land coverage of over 8.13 million square meters, fixed assets of about USD 200 million, and a staff of over 3200. In recent years, over 0.4 billion yuan for technical transformation was invested, mainly used to imported advanced CNC and other modern equipment from Germany, United States, and Switzerland. Now there are over 3800 sets of machines in the factory, forming multiple product line. At present, the factory has formed stronger production capacity in precision machining, standard machinery work, large equipment manufacturing etc.
Our product line mainly around the development and construction of hydropower stations including relative hydro-power equipment, substation and auto-control equipment, penstock and engineering machine, lifting equipment, steel structure and relative construction material. Besides various products manufactured by our factories, we also have a member of affiliated companies that provide us with items to be marketed overseas. Our company has independent import and export rights.
For the hydro-power equipment, our supplying ability can be up to 200MW, except the turbine-generator, we also can supply hydro-power station the complete set of mechanical & electric system from water to wire, including water turbine-generator system, governor, excitation system, technical water supply system, drainage system, measurement equipment system, DC power supply system, auxiliary AC power distribution system, high-voltage switch cabinet, integrated automation system, metering system, computer protection system, grounding devices and booster station switching equipment etc.
The productions enjoy popularity in many places in China, and export some countries and districts such as Middle East, south American, Africa, and east-south Asia.
We have a first-class technical service and installation team who can provide quality installation service and good after-sales service.
Advanced ISO9001 quality control system to ensure the quality and reliability of our products, and sincerely hope to cooperate with you!
