Product Specifications
Prod Model: |
BMY1500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
Placing Form Of Template: |
Horizontal |
Imprinting Type: |
Platen |
Die Cutting Tool: |
Steel Plate |
Automatic Grade: |
Semi-Automatic |
Application: |
Paper Packaging Materials |
Product Description

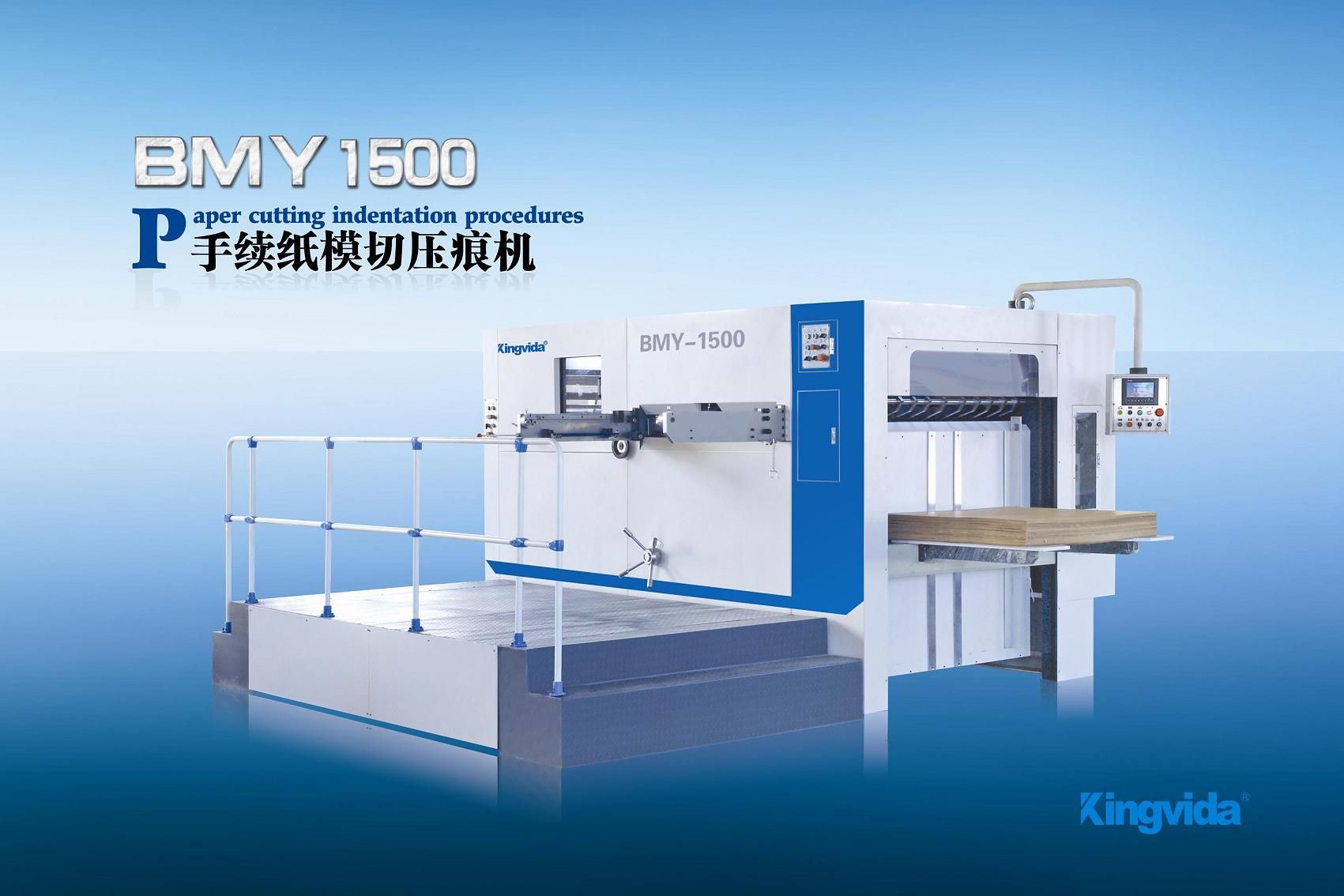

SEMI AUTOMATIC DIE CUTTING MACHINE (SEMI AUTOMATIC DIE CUTTER )
Main specification:
BMY1500 Semi-automatic die cutting machine
1, Die cutting style flat to flat
2, Max. Paper size 1510mm× 1120mm
3, Min. Paper size 550mm× 550mm
4, Max. Die-cutting size 1500mm× 1100mm
5, Max. Die-cutting pressure 350T
6, Paper processed cardboard 1— 9mm
7, Max. Die-cutting speed 4500sheets/h
8, Main motor power 11KW
9, Total power 17KW
10, Weight 16.5T
11, Dimensions 6300mm× 4500mm× 2500mm
Kingvida Co., Ltd is a manufacturer specializing in printing & packing machinery, which owns a series of modern and standard workshop as well as creating a wealth of experience in sales and manufacturing.
The company provide customers with quality and quantity of various types of products including flute laminator, die-cutting machine and folder gluer and so on. The company has won a very high reputation of customers from domestic and abroad while the machines have been export to many countries and areas all around the world.
