Product Specifications
| Prod Model: |
E400-700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Size: |
Large |
| Certification: |
CE |
| Condition: |
New |
| Application: |
Egg |
Product Description

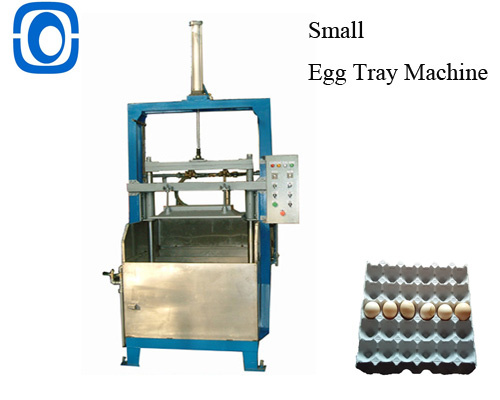

E400-700 egg tray/egg box/egg carton reciprocation machine (Semi automatic)
One piece of forming platen and transferring platen equipped. Platen size: 750*400mm. It can be mounted 2sets of 30-cell egg tray mold on the platen (2pcs/cycle). Cycle time: 15-20 seconds/cycle.
Features
Occupation: about 400m2.Requirement for the
Workshop: height ≥4.5m, width≥10m, length≥45m.
Total power for the production line: 61KW.
Workforce for the egg tray machine: 1-2 people/shift.
Capacity
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
capacity (PCS/HR) |
400 |
400 |
400 |
400 |
800 |
200 |
500 |
Consumption
NO. | DESC | CONSUMPTION PER HOUR |
| 1 | Waste Paper | 30-32kg |
| 2 | Electricity | 70-76kw |
| 3 | Water | 0.4-0.6T |
ZH Molded Pulp Co., Ltd is a manufacturing company specializes in manufacture and research of pulp molding machinery. It was established in 1986 on the basis of Hunan pulp molded company that was known as the first company in this field.
With 20 years in this field, ZH Molded pulp Co., Ltd has cultivated the best technology team and a research, manufacture, after-sale serving team which is full of innovation and energy. Now we have developed four series and over 30 pulp molding machineries. Multi-layer dry line we created in 2008 was received by customers worldwide for its energy-saving and covering less. The machineries mentioned above have sold domestic and overseas market because of energy-saving, environmental-protection, advanced design. The overseas market includes South America, Africa, Russia, Middle East etc.
Our promise: We will meet our clients' requests with the best technology, and provide services including consultancy service/design of the workshop/installation of the equipments.
