Product Specifications
| Prod Model: |
QTD-76 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Qtd-76 |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Hose Crimping Machine |
| Type Of Tire Machinery: |
Hose Crimping Machine |
Product Description

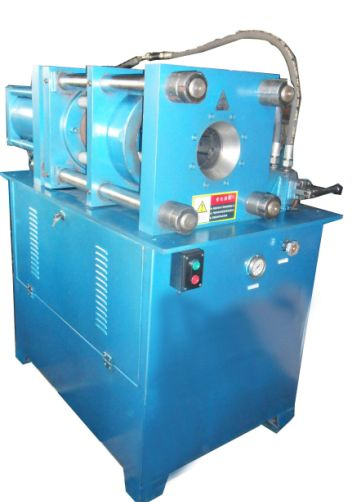

High pressure hose crimping Machine:
1. Crimp pressure: 8000KN;
2. The motor power: 5.5KW;
3. Hydraulic oil pump: 25YCY;
4. Openness: ± 40mm;
5. The hose range: ID10mm~ID76mm;
6. The precision: ± 0.2mm;
7. Max. Working pressure of hydraulic system: 15MPA;
8. The oil tank capacity: 200L.
All machines come with regular die sets included,
However extra sets and less commonly used dies included can be purchased as extras.
Tianjin Pengshunfa Hydraulic Equipment Co., Ltd. is a research and development, production and sales service as onelocaled in Tianjin, China, one of the hydraulic machinery pneumatic professional enterprises, since 1995 Since its establishment, the growing size and products, updates, now the company experienced a number of technology solution pressure in the modern professional office plant, site continuously develop, produce new products: Insulator crimping machine, flat vulcanizing machine, silicone injection machine, tensile testing machine, torsion testing machine, hydraulic hose crimping machine, hose cutting machine, hose skiving machine and so on. Can also be designed according to different requirements of customers making special hydraulic, pneumatic equipment.
