Semi-Automatic Packing Machinery for Paperboard (MJSGL-2)
Product Specifications
| Prod Model: |
MJSGL-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Machines Of Line: |
Single Facer, Roll Stand, Cutter |
| Paperboard Type: |
2-Layer |
| Working Width: |
1400mm 1600mm 1800mm 2000mm |
| Heating Method: |
Electrical Heating/Oil Heating / Steam Heating |
| Economical Speed: |
40-60m/Min |
| Compress-Air Pressure: |
0.4-0.9MPa |
| Standard Flute: |
UV Flute |
| Standard Spec.: |
a,B,C,E,F |
| Type: |
Carton Production Line |
| Automatic Grade: |
Automatic |
Product Description

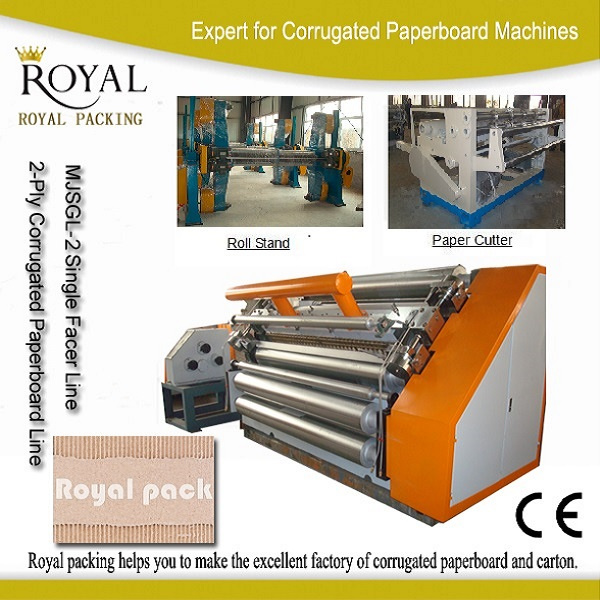

MJSGL-2 Single Facer Line
(2-layer corrugated paperboard production line)

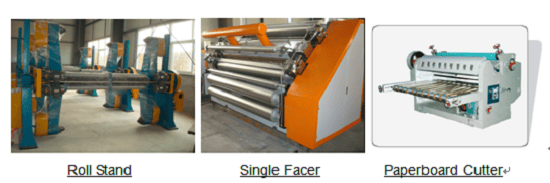

Note: For the Single Facer line, we can produce different model roll stand, single facer, and paper cutter as customer's requirements. Introduction:Single facer line is also called 2-layer corrugated paperboard production line. The Single facer Line is composed of Paper Roll stand, Single facer machine, circumvolve paper cutting machine. To use the web paper material single face machine production line, producing and cutting single face corrugated paper as required sizes, it forms the corrugated board with no need drying. This unit has the advantages of reasonable fabric, advanced technology, high quality of production, high efficiency, low workmanship, operation and maintenance easy. This is the preferred equipment for the production of corrugated cardboard of the cardboard factories. Technological Parameter:| Working Width | 1400mm | 1600mm | 1800mm | 2000mm |
| Heating method | Electrical heating/Oil heating / Steam heating |
| Design speed | 60m/min |
| Economical speed | 40-50 m/min |
| Compress-air pressure | 0.4-0.9MPa |
| Flute type | Standard flute | UV Flute |
| Standard spec. | A,B,C,E,F |
| For other type and model, we can produce as customer's requirement. |
Detail introduction:
| Electrical heating/Oil heating / Steam heating |
| Design speed | 60m/min |
| Economical speed | 40-50 m/min |
| Compress-air pressure | 0.4-0.9MPa |
| Flute type | Standard flute | UV Flute |
| Standard spec. | A,B,C,E,F |
| For other type and model, we can produce as customer's requirement. |
Detail introduction:
MJSF-270V Single Facer Characteristics
1) The structure is symmetrical, can load two rolls raw paper at the same time, can change the paper roll without stop the machine. The tighten, loosen, up and down, move for center, left and right moving all use electrical control.
2) Effective working width: 1600mm, 1800mm,2000mm, 2200.
3) Max. raw paper diameter: Ø1400mm
4) Min. raw paper size: Ø400mm×900mm
5) Max. load of single arm: 1500kg.
6) Each roll sand has two paper roll sending rails, two paper roll up dolly. Rail is made from the welding of the 12# channel steel and direction-leading pole. The dolly is made from 12# channel steel, the length of the rail is 4500mm.
7) Use disk model brake, have handle and electrical models. (can choose.)
8) The clip head is cast-iron finial model or automatic double expanded model. (can choose.)
9) Electrical elements are centralized controlled, this highly improves the production efficiency.
Technological parameters:
1. Paper roll frame working model: Mechanical electrical operation.
2. Paper roll length scope: Max.: 1600mm Min.:900mm
3. Paper roll diameter scope: Max.: 1400mm Min.:400mm
4. Single side max. load: 1500kg.
5. Motor power: (all are planet cycloid motor)
Clip motor: 0.75KW 4units 380V 50HZ
Up and down motor: 2.2KW 1unit 380V 50HZ
Paper roll up-dolly and rail
1) On the dolly have direction-leading wheel, can send the paper roll stably.
2) Rails are installed inside of the floor, main body is made from 12# channel board and Ø12 cold drawl steel, the length of the rail is 4500mm.
3) Each roll stand has two paper roll sending rails, two paper roll up dolly, it can load the paper roll in two sides at the same time. 2. MJSF-270V Single Facer 1600mm
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.
Characteristics:
1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. Independent transmission box, transmit by shaft coupling.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.
6. Manually regulate or electrically regulate the display device.
7. Lubricated by high temperature lubricate grease.
8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.
9. Pressure roll is medium- frequency quenched and chrome-plated.
10. Maximum speed 100-120m/min, width 1400mm~2000mm.
11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
Technological Parameters:| Working Width | 1400mm | 1600mm | 1800mm | 2000mm |
| Heating method | Steam heating |
| Design speed | 100m/min |
| Economical speed | 80 m/min |
| Compress-air pressure | 0.4-0.9MPa |
| Flute type | Standard flute | UV Flute |
| Standard spec. | A,B,C,E,F |
| For other type and model, we can produce as customer's requirement. |
| Corrugated roll diameter (mm) | 268 |
| Type | Vacuum Absorb, gimbal drive. |
| Roller material | 48CrMo alloy, Heat treated, chrome coated |
| Machine Size packing (mm) | 3000*1300*1700 | 3300*1300*1700 | 3550*1300*1700 | 3800*1300*1700 |
| Machine Weight | 4000kg | 5000kg | 6000kg | 7000kg |
|
|
|
|
|
|
|
|
MJSD-1 Paperboard Cutter Machine (Heavy model)Introduction
MJSD-1 Series Rotary Die-Cutting Machine (Heavy model) is used for the transverse and vertical cutting of the paperboard as customer's requirement. The machine use chain model drive, have big turning moment. The machine has reasonable structure, the cutting precision is high and adjust is fast.
1. The machine is electromagnetism speed adjust, continuous feeding, mechanical control, it can work together with the single facer machine as single facer line for producing the 2-layer corrugated paperboard.
2. The knives quantity can be required by the customer.
3. Transversely cut 400-2400mm.
`
Technological Parameters| Model | MJSD-1-1700 | MJSD-1-2000 |
| Max. Cutting width. | 1700mm | 2000mm |
| Cutting length | 200-2000mm | 200-2000mm |
| Cutting times | 20-120times/min | 20-120times/min |
| Power | 4kw | 4kw |
| Working Speed | 0-70m/min | 0-70m/min |
| Machine Size | 2850*1450*1500mm | 3350*1450*1500mm |
| Weight | About 1500kg | About 1700kg |
ROYAL is mainly engaged in the R and D, Design, Produce and Trade of Corrugated Paperboard production machinery and Carton Machinery, Pharmaceutical Equipment, API & Intermediate, Custom Synthesis. We are located in Hangzhou city, Zhejiang Province. Neighboring Shanghai port, Ningbo port, Hangzhou Xiaoshan Int'l Airport and Shanghai Pudong Int'l Airport, our office is 700m from the biggest fast train station in Asia (Hangzhou Dong Station), the transportation and environment are excellent!
We are mainly focus on:
1. Corrugated paperboard machinery, Packing Machinery, Single Facer line, Flexo printing machine, folder gluer, Stitcher, Laminating machine, Rotary Die-cutting machine, Flat Die-cutting machine, Slitting and rewinding machine, Paperboard sheeter, A4 paper production line, and all related spare parts.
2. Pharmaceutical Machinery: Distilled water machine, Reverse Osmosis, Frame filter press, Pure steam Generator, MVR, CIP system, Mixing tank, Mixer machine, Sterilizer, Centrifuge, MEE and so on.
3. API, Pharmaceutical Intermediate, Custom synthesis service.
4. Export agent ---- Specially we have Kunlun bank account for Iran business.

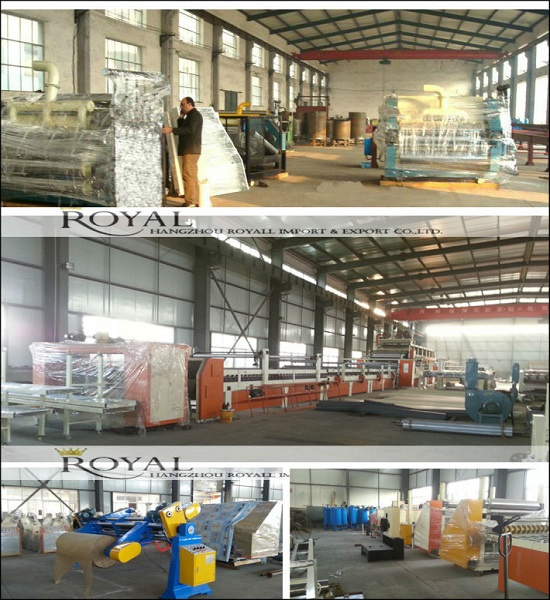

We have two own factory in Hebei Province and Ningbo city, China. We have high quality employee team, we have special engineers, and special operators for export work of machines. We are now cooperated with many special factories who produce good quality machines to fulfill our products library. With good quality products and high efficiency service, and the competitive prices, our products are welcomed by many users. ROYAL is happy to offer the technological service for you all the time.
ROYAL has Import and Export Office in Hangzhou and have established well market channels both domestically and overseas. And we have our Sales branch in Tehran city, Iran, In Amman city, Jordan. ROYAL products are exported to many countries such as USA, Germany, Mexico, Korea, Dominica, Italy, Austrilia, Russia, Iran, Jordan, Sudan, Egypt, Samoa, Vietnam, India, Turkey and so on. Our products are popular in the world market, and enjoy a good reputation from our customers. Based on the Technology, Developed by Innovation, joining hands with friends, ROYAL highly welcomes friends from all over the world to cooperate with us, and share our development and progress together.
ROYAL ---- Your Best Partner In China!

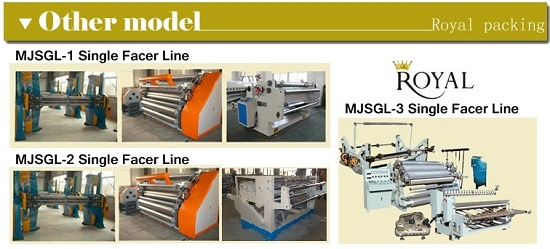

Other Products From This Manufacturer
