Product Specifications
| Prod Model: |
SY-machinery |
| Markets: |
Southeast Asia,Africa,Eastern Asia |
| Power(W): |
450 |
| Warranty: |
One Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Working Method: |
Semi-Automatic or Full Automatic |
| Raw Material: |
Hardwood or Saw Dust |
| Capacity: |
5000m3-60000m3 |
| Working Time: |
22.5h/Day, 3 Shifts; 300days/Yr |
| Finished Products: |
Particle Board, OSB, Chip Board |
| Finishied Board Size: |
48FT, 69FT or as Your Demand |
| Cylinder: |
Made in Wuxi |
Product Description
product description

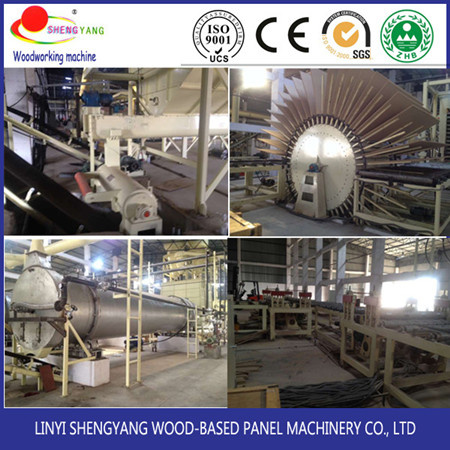

1.wood shavings preparation section
short and long logs of small diameter are fed into long-log flaker by the feeding conveyor, which sliced into qualified shavings at once, then the flakes will be sent to wet flake bin.as for short branches and other materials, what will be sent to feeding belt conveyor of drum chipper.raw material are whittled to qualified chips by chipper, then wind send these to wood bin as intermediate storage.wood chips then pass the ring flakers to be qualified wood shavings, and will be sent to the wet flake bin by wind.
2.drying and sieving section
the flakes discharged from the wet flake bin are conveyed to the rotor dryer through screw conveyor.qualified flakes are screened in screening machine.screw conveyor of dryer is equipped with spark detection devices, once alarms, dry materials will be discharged outside the system automatically.qualified core flakes are stored in core flake bin;oversize flakes will resent to mill to be re-crushed, and transported to surface flake bin.
3.glue mixing and applying section
this section includes the wax emulsion and hardener solvent's preparation and transportation, additive storage and glue mixing and spreading system.after scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently in their glue mixers respectively.
4.forming and hot-pressing section
the surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly.after processes of mental remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press.rough boards after pressing are pushed to unloader via pallet.
5.cooling and sizing section
the rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.
6.sanding section
the storage board are sended into sanding system(include hydraulic lifters, roller conveyors, wide belt sander).then sanded, checked and stored.
7.PLC system
the main controlling room is set in this particle board production line, through this you can realize operating all machines automatically and manually from wood shavings measured, spreading, shaping, hot press to trimming processes.besides, set controlling console (box) in the operating scene for each section(except hot press section) to control and monitor each machine's operation.
tips:our factory can also product the different sizes of the particle board making machine according to our customers' requirements.
packaging & shipping
we can send the goods you ordered with well packing container from qingdao port.
why choose us
1. we are factory ( not a dealer)
we sell production machines designed together with clients, so it will be just and only for you, my dear. all machineries from manufactory are
made by ourselves, with lower price, good quality and assured full after service.
2.we provide best service
pre-sale services: enthusiasm and profession
we provide best service according to your demand, such as prophase
plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
in-sale services: be your assistant and servant
send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. you can come to our factory to study for free.
after-sale services
we provide oneyear warranty to make sure your machine runs consistently. we always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
please contact us
contact perpon: doris du
tel: 86-15020372402
company information
linyi lanshan shengyang wood-based panel machinery factory,founded in 1996,is a professional manufacturer which developed and manufactured all kinds of man-made machinery and equipments.our main products are fully automatic particle board production line,melamine laminate hot press machine,short cycle lamination hot press machine and variety of new high-end hot press machine,cold press,dryer,planking machine,saw machine...etc. full set wood-based panel production machinery and equipments.
after more than twenty years' continuous innovation and development, shengyang machinery has become an outstanding enterprise along with strong power, advanced technology and excellent quality. products are sold nationwide, exported to Asia, Europe, Africa and Oceania...etc. more than 20 countries and regions, also supported and praised by clients and friends all over the world.
shengyang machinery first passed ISO9001-2000 international quality certification system in the same industry, and also has repeatedly been rated as "municipal contract and trustworthy enterprise", "scientific and technological innovation star enterprise" and other honorary titles.
we "shengyang men" always adhere to "succeed through quality, walk on the path of development of superior quality and high efficience" as business philosophy, "to have a foothold in China and head for the world" as development goal, "honesty first in business, being man before on business" as shengyang spirit. we will carry on serve you with the more excellent products' quality, more stringent management system and much better service system, and hand in hand, and share success with you.
trust us! once cooperative, long-term friends!
all we "shengyang men" welcome your visit!
FAQ
1.requirements validation we can design and produce any kind of woodworking machine according to the customer's requirements or drawings. you can contact us by telephone or internet. please make sure tell us the detailed description, types and specifications of the product you need.
2. product validation we recommend that you come to our company to see the goods, to verify the real situation of the products, and know more about our company. if you are far away, we can take real photographs for you to meet your requirements.
3. product prices the price depends on the customer's requirements and the latest steel prices .we make sure to make you be satisfied with the product price, quality and after-sales service,
4. contract signing if you're satisfied with the products and our service, you can sign the contract with us, pay the deposit. then we'll produce the machines as soon as possible. if you are far away, we can sign the contract by fax. we will ensure the quality of the products and the accessories are complete
5. delivery of products when the product is ready, it can be delivered to you after your full payment. we'll provide technical guidance.
