Product Specifications
| Prod Model: |
by order |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
2000bph |
| Bottle: |
200-2000ml |
| Certificate: |
CE, SGS |
| Warranty: |
1 Year |
| Control: |
PLC |
| Type: |
Injection Blow Molding Machine |
| Raw Material: |
PET |
| Making Method Of Parison: |
Injection Blowing |
| Automation: |
Non-Automatic |
| Computerized: |
Non-Computerized |
| Certification: |
SGS |
Product Description

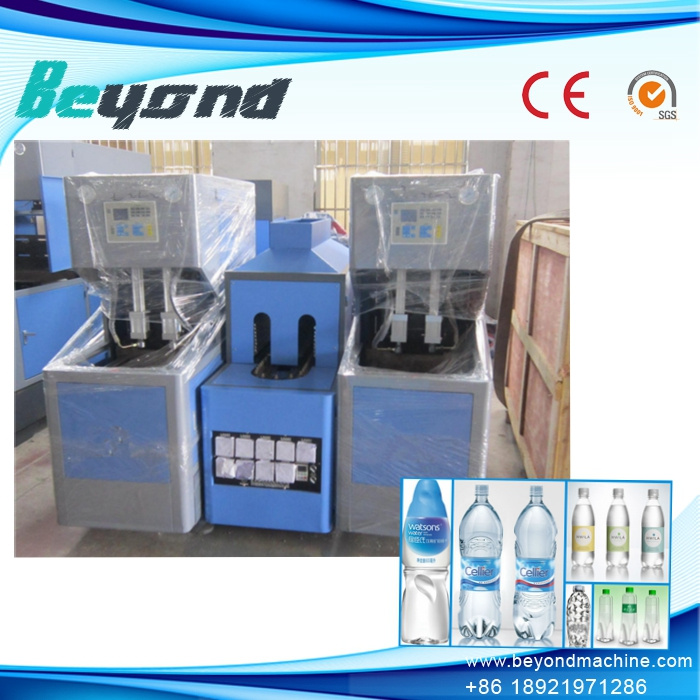

Semi automatic pet bottle blowing machine
Semi-automatic blow moulding machine
Use integated mic computer controler,with OMRON control chip, the response speed is very quickly and the timing very precisely.Use life durable and failure rate very low.It's the revolutionary product of industrial control.
High responsiveness pneumatic components, action timely and precisely
Thorough safe operation mechanism, start-up with two hands, avoid the accident during the operation
Infrared heating technology, safe and energy conservation, no pollution of the environment.With the 8 rates adjustable temperature controller, make the temperature suitable for blowing.
Specification
BY-12L:
Name |
Item |
Details |
Unit |
Blowing machine |
Dimension |
1900*700*1900 |
mm |
Weight |
830 |
Kg |
Bottle volume (max) |
12 |
L |
Bottle volume (min) |
5 |
L |
Preform length(max) |
700 |
mm |
Preform length (min) |
15 |
mm |
Preform inner diameter(max) |
150 |
mm |
Preform inner diameter(min) |
15 |
mm |
Number of Cavities |
1 |
Mold |
Production output |
800-1000BPH |
pcs/h |
Clamping force |
150 |
KN |
Mold thickness |
320 |
mm |
Mold Dimension |
380*380 |
mm |
Working pressure |
0.8-1.0Mpa |
Mpa |
Blowing pressure |
2.0-3.0Mpa |
Mpa |
Voltage/Power |
220V/1KW/380V/1KW |
V/KW |
Pre-heater |
Dimension |
2000*630*1380 |
mm |
Weight |
330 |
Kg |
Voltage/Power |
220V/380V/10KW |
V/KW |
BY-99A:
Container volume(ml) |
2000 |
Electrical system(V) |
220v/50-60Hz |
Cavities |
2 |
Clamping stroke(mm) |
135 |
Max thickness of mold (mm) |
160 |
Max container height(mm) |
350 |
Max container diameter(mm) |
105 |
Theoretical output(bph) |
1000-1800 |
Weight (KGS) |
600 |
Size(m) |
1.6*0.6*1.57 |
BY-5P(5gallon):
Max .Volume Of Product |
7-20(L) |
Production Capacity |
70-80 b/h(5gallon) |
Neck Size Of Product |
<120 mm |
Useful Area Of Mould Plate |
430*650mm |
Max. Mould Thickness |
400mm |
Min. Mould Thickness |
350mm |
Mould Stroke |
330mm |
Clamping Force |
330kn |
Stretching Stroke |
430mm |
Working Pressure |
0.8Mpa |
Blowing Air Pressure |
≤4.0Mpa |
Power Of Main Blower |
2kw |
Power Of Preheater |
18kw |
Weight Of Main Blower |
1000kgs |
Weight Of Preheater |
380kgs |
Measurement Of Main Blower |
1550*820*2000mm |
Measurement Of Preheater |
2420*650*1600mm
|
Technology advantage:
Special design, high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation, no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke, quick action
All ZG45 casting, with long timing process, very small transformation, can meet your precise request 100%High dead-weigh, ensure the steady during the operation.
