Product Specifications
| Prod Model: |
ROY-05B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Roy-05b |
| Voltage: |
380/220V |
| Facility Weight: |
1t |
| Shrink Film Material: |
PE\PVC\POF |
| Shrink Film Thickness: |
0.03-0.15mm |
| Packaging Type: |
Cartons |
| Type: |
Self-Propelled Wrapping Machine |
| Driven Type: |
Electric |
| Application: |
Oil |
| Automatic Grade: |
Semi-Automatic |
Product Description

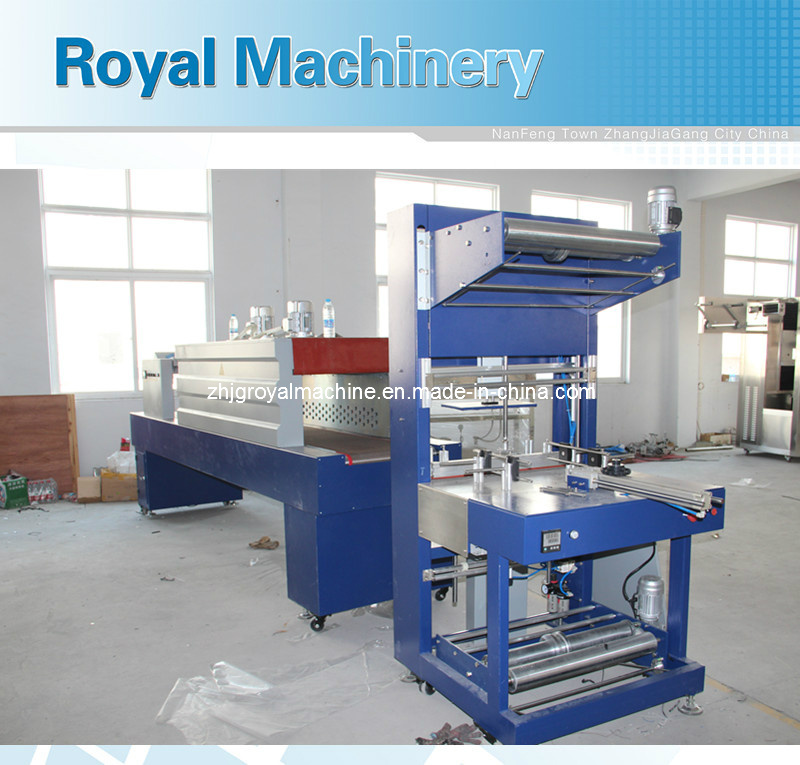

Semi-automatic shrink-wrapping packing machineTechnical data
Facility type ROY-05B
| External dimension of the facility | L5050× W900× H2100mm |
| Max. Dimension of wrappage | L600× W400× H350mm |
| Shrink film material | PE\PVC\POF |
| Shrink film thickness | 0.03-0.15mm |
| Thermo-shrink tunnel max. Temperature | 160-260° ( can be adjusted freely) |
| Max. Output per minute | 5-8PCS |
| Facility power | 18Kw |
| Actual power | 15Kw/h |
| Voltage | 380/220V |
| Facility weight | 1T |
Fan 1.1Kw 380V 2units, 6.5Kw 380V 4units
The general specification of the machine:
Taiwan AIRTAC pneumatic component 1set
Taiwan Telta frequency converter 1 set
Stainless iron wing type heating tube 12 pieces
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed transmission.
South-Korea Autonics proximity switch.
Thermo sealing knife cast aluminum heating board has the character as even temperature, long life, is our special product.
Whole machine outer plastic-sprayed, the frame is made of high-quality carbon steel, main part adopt to stainless steel.
Wooden case and film packed separately.
Speed adjusted by frequency converter, two segment bottle convey device.
Pushing the bottle, thermo sealing and cutting are adopt pneumatic system.
Proximity switch control the length of film.
Double-wind cycling fan machine, ensure the temperature in shrinkage tunnel evenly.
Super wind-volume cooling system, ensure get into shape quickly.
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
Frequency unlimited speed adjustment and belt convey structure.
Convey belt height can be made according to client's requirement, adjustment range: ± 50mm
Wing type stainless iron heating system, endurance used.
The product-bearing stack device can meet with product instant stop requirement to ensure production line work continuous.
Royal Company is the professional and well-known company of automatic labeling machine, packaging machine in the domestic sleeve labeling machine industry.
Since the establishment, our company has always been committed to fully automatic packaging machines, sleeve labeling machine R & D and manufacturing in food, beverages, cosmetics industry. With advanced design concepts and many years of production experience, the company has developed 30 sets of fully automatic labeling machine according to market demand. Our productivity amounts to 600 bottles/min with a domestic industry-leading level and numbers of patented technologies. The products are widely used in various bottle types of fruit juices, tea beverages, dairy products, purified water, condiments, beer, sports drinks, cosmetics and other industries.
The company's products are exported to the United States, Japan and Africa, Europe, Southeast Asia and other thirty countries and regions. Our company has become the international famous brand.
Our goal is to become a trusted enterprise with the best quality which is leaded by technology content. We also strive to become a well-known international outstanding enterprise!
