Product Specifications
| Prod Model: |
JST-4B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Semi-Automatic Shrink Wrapping Packing Machinery |
| Packing Speed: |
0-4 Groups / Minute |
| Packing Film: |
PE Film |
| Power: |
25kw |
| Application: |
Medical |
Product Description

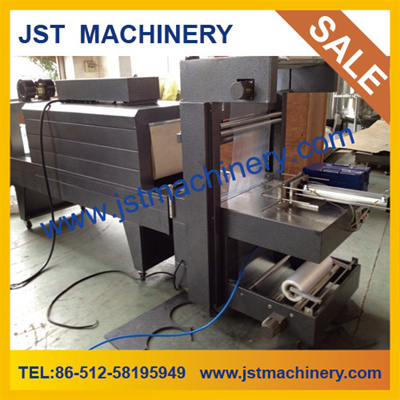

Semi-automatic Shrink Wrapping Packing Machinery
Technical data for semi-automatic shrink wrapping machinery
Facility type: JST-4B
External dimension of the facility L3050× W900× H2100mm
Max. Dimension of wrappage L600× W400× H350mm
Shrink film material: PE\PVC\POF
Shrink film thickness 0.03-0.15mm
Thermo-shrink tunnel max. Temperature: 160-260° ( can be adjusted freely)
Max. Output per minute: 0-4PCS
Facility power 18Kw
Actual power 15Kw/h
Voltage 380/220V
Facility weight 1T
Fan 1.1Kw 380V 2units, 6.5Kw 380V 4units
The general specification of the shrinking packing machinery:
Taiwan AIRTAC pneumatic component 1set
Taiwan Telta frequency converter 1 set
Stainless iron wing type heating tube 12 pieces
China-America cooperation Teflon convey belt.
Shanghai Hemei electric-motor and Zhejiang Taili worm speed transmission.
South-Korea Autonics proximity switch.
Thermo sealing knife cast aluminum heating board has the character as even temperature, long life, is our special product.
Whole machine outer plastic-sprayed, the frame is made of high-quality carbon steel, main part adopt to stainless steel.
Machine brand: Jst machinery
Wooden case and film packed separately.
Speed adjusted by frequency converter, two segment bottle convey device.
Pushing the bottle, thermo sealing and cutting are adopt pneumatic system.
Proximity switch control the length of film.
Double-wind cycling fan machine, ensure the temperature in shrinkage tunnel evenly.
Super wind-volume cooling system, ensure get into shape quickly.
Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
After-sales service for shrink wrapping machinery:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months
FAQ for Automatic thermal semi-automatic package machine
1. What kind of bottle will you pack?
2. What is the capacity(per hour) you want?
3. How many bottles in a group? 3*4or 4*6 or? ?
4. Sole machine or whole production line? :
Zhangjiagang JST Machinery Co., Ltd. Was founded in 1995, starting with the beverage machinery. We are located in Leyu Industrial Town, Zhangjiagang City. We devote ourselves to the development, research and production of liquid food and beverage packing and filling products.
Our main products include: Mineral water and purified water producing lines, carbonated beverage producing lines, 3-gallon & 5-gallon producing lines, oil filling lines and so on.
We have many clients, such as: Tanzania, Bolivia, Brunei, Albania and Suriname, Iraq, and so on.
We welcome clients to inquire for more information.
