Product Specifications
| Prod Model: |
solder paste printing machine GSD-YS350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solder Paste Printer: |
Semi- Automatic |
| PCB Size: |
Max:400*240mm |
| Printing Area: |
500*320mm |
| PCB Fixed System: |
Pin Positioning |
| Frame Size: |
L(550-650)*W(370-470) |
| Adjusting For Table: |
Front/Rear±10mm,Left/Right±10mm |
| Printing Accuracy: |
±0.2mm |
| PCB Thickness: |
0.2-2.0mm |
| Air Source: |
4-6kg / Square Centimeter |
| Net Weight: |
230 Kg |
| Precision: |
High Precision |
| Demoulding: |
Automatic |
| Mould Life: |
300,000-1,000,000 shots |
| Function: |
High Temperature Resistance |
| Customized: |
Customized |
| Condition: |
New |
| Automatic Grade: |
Automatic |
| Certification: |
RoHS |
| Heating System: |
Pid Infrared Ray |
| Warranty: |
4 Years |
Product Description

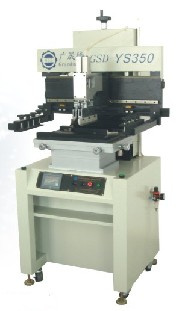

GSD-YS350Semi-automatic solder paste printer
Features:
1...PC control, touch screen display and menu operation interface
2...Floating scraper. Similar to automatic printer, the scraper can be floated freely up and
Down and can be adjusted automatically to level with the steel grid.
3...The pressure of the scraper is adjustable. The pressure of the scraper on the steel g
Rid is adjustable according to the length of the scraper.
4...The process of the stell gird removing from the PCB can be adjustable from 0 to 5seconds
5...Use both of your hands to press the button to operate so that the safety and reliabil
Ity are ensured.
6...The stopping time of the scraper at top left or bottom left, and top right of bottom right,
As well as the overall stopping time of the steel gird at top or bottom can be independently
Set in the touch screen menu.
7...The PCB can be localized and fastened by base hole, base side, both base hole and
Base side, and template localization.
8...Time can be displayed on the touch screen and the count of the printing time can be
Recorded.
9...The scraper speed at left and right is adjustable and can be stopped in emergency.
|
ITEMS |
SPECIFICATION |
|
PCB size |
Max:400*240mm |
|
Printing area |
500*320mm |
|
PCB fixed system |
Pin positioning |
|
Frame size |
L(550-650)*W(370-470) |
|
Adjusting for table |
front/rear±10mm,left/right±10mm |
|
Printing Accuracy |
±0.2mm |
|
Repeating Accuracy |
±0.2mm |
|
PCB thickness |
0.2-2.0mm |
|
Air source |
4-6kg / square centimeter |
|
Power supply |
AC220V 50HZ |
|
Dimension |
L800*W700*H1700 |
|
Net weight |
230kg |
Grandseed is specialized in researching, developing, manufacturing and marketing lead free wave soldering, relow soldering, SMT peripheral equipment, and other electronic equipment. The company is well known in China depending on its quality products, complete product variety and considerate after-sale service from its powerful technical strength and advanced detecting measures.
The utility model lead free tin furnace is a patent product of the company on which it has the independend intellectual property. The unique anti-oxidation device equipped in the furnace has greatly reduced the cost of electronic manufacturing, and has made big contribution to the improvement of the PCB soldering workmanship in the field.
The company believes in an after-sale policy of "high efficiency and low charge", and always tries to satisfy every demand of all customers. We will continue to improve the company in the aspects of honesty integrity, and team work spirit, so as to gradually satisfy the requirements for an international standard enterprise. With the purpose of rewarding the country, honest operation and practical development, we will try our best to make Grandseed a famous international brand.
