Product Specifications
| Prod Model: |
LD-808AL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Vertical Screen Printing Machine |
Product Description

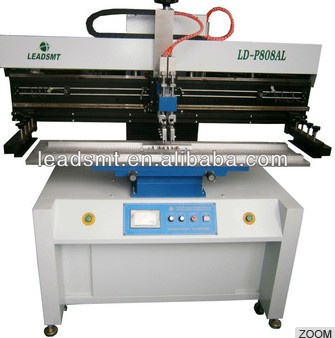

*LD-P808AL adopts import guide rail and geared motor drive the scraper seat, it can print preciously;
* Suspend scraper can auto-balance squeegee pressure, prolong the life of scraper and steel toil, ensure reliable print quantity;
* Four points steel toil orientation, auto-lock for air cylinder, print repeat accuracy is ± 0.02mm, use different size toil for move toil frame;
* Scraper pressure number display, it is suitable for lead-free process of stainless steel scraper, 200-250 can be chosen;
* Industry products computer plc control, it is stable and reliable;
* Beehive bottom board, thimbles move support board, agile orientate PCB, easy to print dual sides PCB;
* Print table angle can be micro-adjusted by coordinate;
* Simple set print parameters, scraper speed on LCD, SANLING PLC and touch-screen control mmi;
* Precision linearity rail move and ensure to print exactly and high repeat precision.
Max board size 1200× 300mm
Printing table size 1280× 320mm
Screen frame size 440× 370mm~1400× 550mm
Squeegee speed 0-100mm/sec
Power requirements 220v 1P 50/60hz
Power for operation 100w
Positioning system pc outer or pin positioning
Adjusting for table Front/back± 10mm
Right/left± 10mm
Printing accuracy ± 0.02mm
Repenting accuracy ± 0.02mm
Air used 4-6kg/cm2
Machine dimension 1600x900x1650mm
Shenzhen leadsmt technology Co., Ltd., found in aug. 2002, is a high-tech and very powerful enterprise in Asia. Leadsmt design, manufacture and sale wave soldering machine, reflow soldering machine and other supporting facilities. It's technology advanced in the world after researching for some years, leadsmt has 100 workers and 60 designing and manufacturing engineers.
