Product Specifications
| Prod Model: |
RSCG01-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Sterilization Equipment |
| Process: |
Thermal Processing |
| Processing Material: |
Liquid |
Product Description

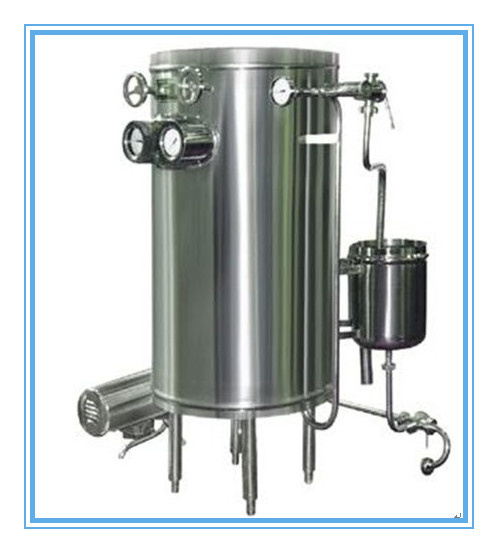

Description of RSCG01-1 type ultra-temperature instantaneous sterilizer
The equipment is mainly used in the sterilization of liquid material such as fresh milk, juice, beverage and alcohol as well as soybean milk and fluid machinery.
Semi-auto？ultra-temperature？instantaneous？sterilizer
Usage:？The？ultra-temperature？instantaneous？sterilizer？is？used？to？sterilize？to？the？juice？by？
instantaneous？super-temperature？heating.？The？temperature？will？reach？between？115degree
and？135degree,？so？the？effect？of？sterilization？is？very？good.？And？the？time？of？sterilization？is？very？
short？so？that？the？product？keeps？high？quality.？It？is？widely？used？in？the？production？of？fresh？
milk,？soybean？milk,？juice,？beverage,？and？so？on.
|
High temperature holding time |
4-6s |
|
Out material temperature |
<65 |
|
Out material temperature |
<45(add cooling pipes) |
|
Air consume |
<0.15g/L |
|
Power of motor |
1.5kw(adopt one a-centric pump)
3kw(adopt two a-centric pumps) |
|
Weight of equipment |
410kg |
|
Air pressure |
<0.78Mpa |
Using area |
0.9m2 |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
