Product Specifications
| Prod Model: |

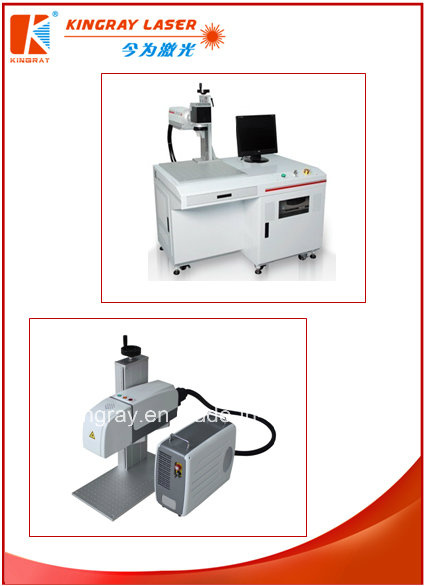

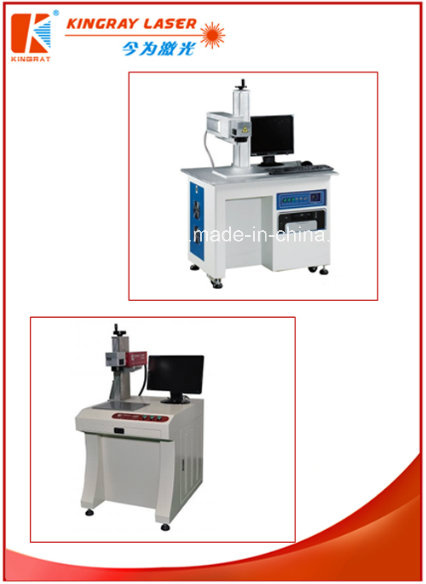

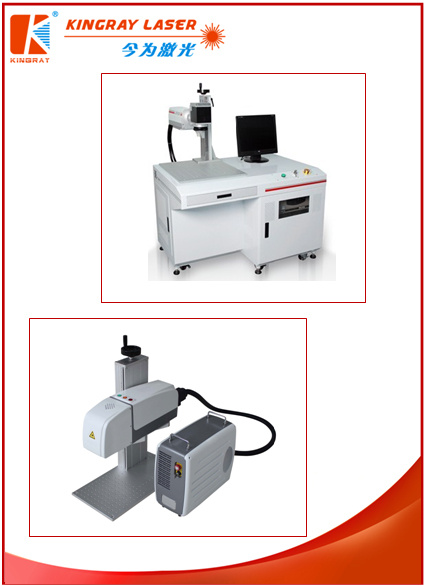

KREP Semiconductor Laser Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Semiconductor 808mm |
| Laser Output Power: |
12W / 25W |
| Marking Area: |
50mm*50mm - 300mm*300mm |
| Marking Speed: |
500c/S - 600c/S |
| Condition: |
New |
| Warranty: |
12 Months |
Product Description
EXCELLENT QUALITY, PROFESSIONAL SERVICE, PRODUCT WARRANTY
Features:1. It adopts imported end-pump semiconductor which has high photoelectric conversion rate and high beam quality because of coupling with fiber.
2. Unique cavity structure makes narrower pulse width and higher peak power, compact structure and dual-temperature control optimal design make its performance more stable and reliable.
3. Hyperfine marking effect is achieved by the perfect beam quality, especially have absolute advantage in white ground plastic spraying products to do light transmitting effect.
4. Environmental friendly as no intermediates in marking process, completely conform with ROHS standard.

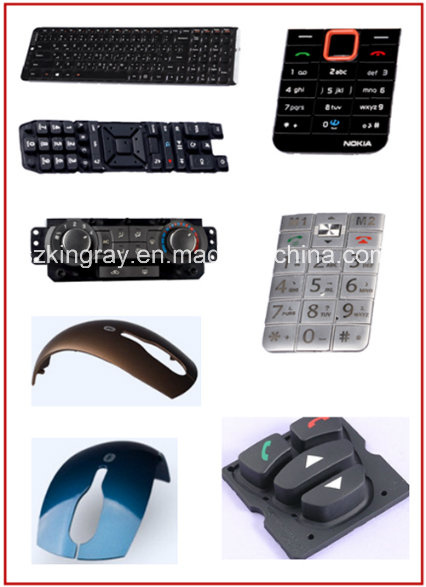

Application Industries:Widely used in electronic components, integrated circuits, electrical appliances, mobile communications, metal hardware products, tools and accessories, precision machinery, glassware and horologe, jewelries, auto parts, plastic keys, building materials, sanitary ware and PVC pipes, especially for products highly required with precision, speed and depth.
Suitable Materials:Suitable for various kinds of metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), rare metals and alloys (gold, silver, titanium), metal oxides (available for all kinds of metal oxides), special surface treatment (phosphating, aluminum anodized, surface electroplating), ABS material (electrical appliances outer casing, commodity), printing ink (plastic keys, printing products), epoxy resin (electronic component packaging, insulation layer)
Technical Parameters:| Type/Parameter | KR-EP-12 | KR-EP-25 | Type/Parameter | KR-EP-12 | KR-EP-25 |
| Laser type | Semiconductor 808mm | Marking area | 50mm×50mm-300mm×300mm |
| Laser rated power | 12W | 25W | Q-switched frequency | 5KZ-500KHZ |
| Wavelength | 1064nm | Overall dimension | 800mm×680mm×120mm |
| Beam quality | <1.1 | <1.5 | Electric requirement | 220V±10%50HZ/10A |
| Min. character size | 0.1mm | 0.1mm | Cooling method | Air Cooled |
| Min. line width | 0.01mm | 0.015mm | Total weight | 120KG |
| Repetition accuracy | ±0.001mm | Power consumption | 500W | 800W |
| Marking speed | 500C/S | 600C/S |
|
|
Shenzhen Kingray Laser Equipment Co., Ltd is located in Bao'an district, Shenzhen, the high-tech coastal city in China. Kingray was founded in 2008 (previously named Tongchuang Laser, founded in 2005), a high tech enterprise specialized in design, manufacture, marketing and post-sale service of industrial laser applications such as UV laser for micro cutting, precision fiber laser cutting, various types of laser welding and laser marking, integrated seamlessly industrial robot for production lines.
Kingray has equipped the most advanced production and testing equipment like Renishaw laser interferometer & 2D photogrammeter, Coherent laser power meter and etc. Kingray has a professional develop&research team with staffs in optics, electron, precision machinery and software control. Kingray has got the ISO quality system identification and holds dozens of patents and two software copyright in laser equipment filed. Kingray's products are with excellent performance, easy to operate and maintain, widely used in LED lighting, auto parts, plumbing, sanitary ware, electromagnet&cell, sensors, precision machinery, jewelries, fiber glass, engraving of bamboo ware & wood, gifts, food packaging, tobacco packaging, Logo marking, engraving, welding and precision cutting of 3C digital parts like iPhone, Samsung, Huawei, Lenovo.
Through the efforts of our professional R&D team, we have developed several types of industry specific laser machines that are integrated seamlessly with industrial robot, and have broken through the tranditional manual operation laser process equipments to provide labor-saving and financial-saving to our customers, and earned high recognition from clients.
