Product Specifications
Product Description

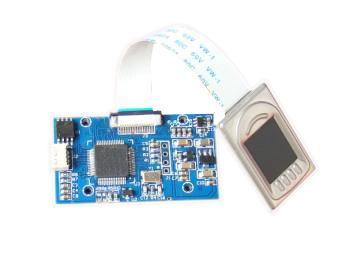

Fingerprint reader R305F(semiconductor)
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.
3. Wide Temperature Range: Suit to quite cold and hot areas
4. Slim volume: Can be embedded into a variety of end products
5. The main application areas: Can be embedded into a variety of end products, such as: Access control, attendance, safety deposit box
Specification:
Fingerprint sensor R305F (semiconductor)
Interface: USB 1.1 and RS232 (TTL)
Communications baud rate (UART): (9600 × N) BPS where N = 1 ~ 12 (default N = 6, ie 57600BPS)
Dimension: 48*32mm
Fingerprint reader module size: 20 * 32 (mm)
Effective collection area: 12 * 15 (mm)
ScanningSpeed < 0.3 second
Verification Speed < 0.5 second
Matching Method: 1: 1; 1: N
Resolution 363 DPI
Voltage: DC 3.3-6.0V
FRR (False Rejection Ratio): ≤ 0.01%
FAR (False Acceptance Ratio): ≤ 0.0001%
Fingerprint capacity: 250 (Default)
Antistatic capacity: 15KV
Abrasive resistance intensity: 1 million times
Peak power consumption: 140 mA
Work environment: -25° C ---50° C
Work Humidity: 0-90%
