Product Specifications
Product Description

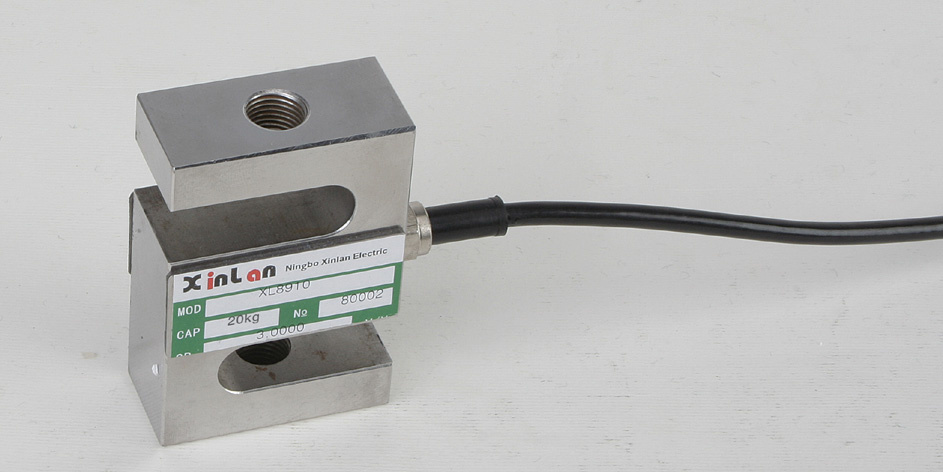

Load Cell(XL8910):
Standard Capacity: 1, 1.5, 2, 5T
Rated output: 2.0Mv/v± 0.1%
Non-linearlity: 0.02%F. S
Hysteresis: 0.02%
Non-repeatability: 0.01%F. S
Creep in 30 minutes: 0.03%F. S
Temperature effect span: 0.02%F. S/10K
Temperature effect zero: 0.02%F. S/10K
Operating temperature range: -30º C~70º C
Zero balance: ± 1%F. S
Input resistance: 400± 5Ω
Output resistance: 352± 1Ω
Safe overload: 150%F. S
Ultimate overload: 300%F. S
Excitation voltage: 10-12VAC/DC
Maximum excitation voltage: 15VAC/DC
Insulation resistance ≥5000MΩ(50V DC)
Environmental protection: IP67
Materal: Alloy tool steel
(inch/mm)
Close to Ningbo University and Material Research Institute of Chinese Academy of Science, Ningbo Xinlan Electric Applicances Co., Ltd is located in Zhenhai, Ningbo, the window of Yangtse River Delta, where the water, land and air transportation is convenient and the economic is developed.
Having a ground aera of 3000 square meters and introducing advanced technology in moderm management mode, our company researchew and manufactures Load Cell products, Expecting the futuer, we provide high quality products to wide clients with the management ideal"aborative management, extractive production, perfect products and sincere service" and the first class service. We welcome new and old clients to come here to have a business talk!
