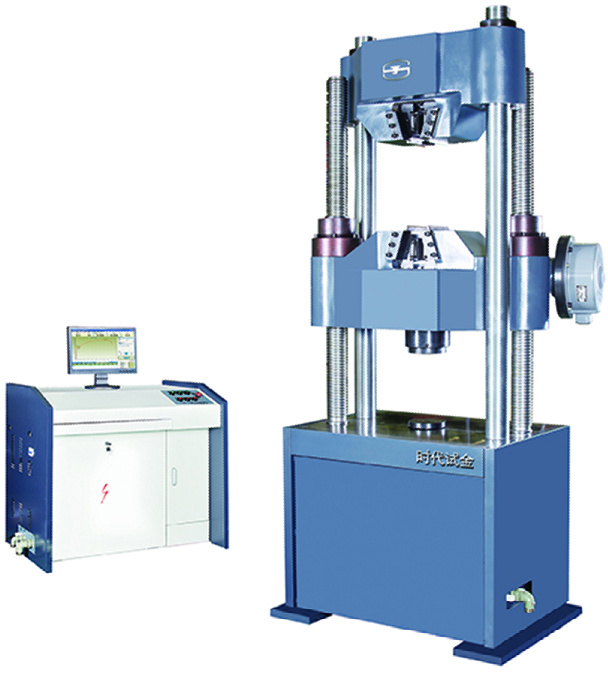

Brief Introduction: WAW-600C computer controlled servo hydraulic universal testing machine is mainly used to execute the tension, compression, bending, flexural etc. Test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Standards: In accordance with or exceed the requirements of the ISO6892.
C Type Load Frame: The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by the motor and gear inside it to realize the adjustment of testing space. The leading screws are fixed into the machine seat And never turn during the space adjusting & testing to guarantee the machine stability and longer life span.
Measuring System: The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The computer is timely collecting the testing parameters like loading force, stroke etc. Our Winwew software based on Windows system is able to display the load, load peak value, deformation, testing curves etc. Very easily, and can make automatic calculating of test results, i. e. Tensile strength, up / low yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in your needed format.
Applications: It is widely used in different steel works, engineering areas, quality control department, Universities and institutes as well as other areas and works.
Features:Full computer controlled testing process.
Adopt oil-hydraulic automatic clamps which can be operated from separate control box.
Wedge tension jaw processed by advanced technology; Increase the stiffness of crosshead under high load and High intensity tests.
Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing Standards.
Report Guide will create your testing report in only three steps.
Programable testing software makes LCF testing or cyclic testing become available.
Overload protection will secure operators.
WAW Series is computer controlled servo hydraulic universal testing machine. The space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic universal testing machines.
WAW Main Technical Specifications: |
Specifications |
300C |
500C |
600C |
1000A |
1000C |
1000D |
2000A |
Max. capacity (kN) |
300 |
500 |
600 |
1000 |
1000 |
1000 |
2000 |
Relative error of reading |
≤±1% |
Measuring range |
2%-100% of FS |
Clamping method |
Hydraulic clamping |
Round specimen clamping range (mm): |
Φ10-Φ32 |
Φ13-Φ40 |
Φ13-Φ40 |
Φ13-Φ60 |
Φ12-Φ60 |
Φ13-Φ60 |
Φ15-Φ70 |
Flat specimen clamping range (mm): |
0-15 |
0-30 |
0-30 |
0-40 |
0-55 |
0-40 |
0-50 |
Flat specimen clamping width (mm) |
76 |
80 |
80 |
125 |
70 |
125 |
140 |
Max. tension test space (mm) |
600 |
600 |
600 |
780 |
600 |
600 |
850 |
Max. compression test space (mm) |
500 |
500 |
500 |
650 |
500 |
470 |
720 |
Load frame dimension (including piston stroke) (mm) |
1000 x 600 x 2330 |
1180 x 750 x 2633 |
1180 x 750 x 2633 |
1255 x 660 x 3900 |
1320 x 800 x 2965 |
1100 x 960x 2510 |
1510 x 1040 x 4700 |
Motor power (kW) |
3.8 |
4.1 |
4.1 |
2.3 |
6 |
2.1 |
9.2 |
Load frame weight (kg) |
2300 |
3000 |
3000 |
5000 |
6800 |
5000 |
10400 |
Column clearance (mm) |
530 |
650 |
650 |
675 |
760 |
565 |
900 |
Compression platen size (mm) |
Φ125 |
Φ125 |
Φ125 |
204 x 204 |
Φ160 |
204 x 204 |
204 x 204 |
Span of bending rollers (mm) |
350 |
600 |
600 |
1000 |
800 |
800 |
1000 |
Width of bending rollers (mm) |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
Allowable camber (mm) |
100 |
100 |
100 |
150 |
150 |
150 |
190 |
Max. piston stroke (mm) |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
Max. piston speed (mm/min) |
Approx. 70 |
Approx. 80 |
Approx. 80 |
Approx. 50 |
Approx. 50 |
Approx. 50 |
Approx. 50 |
Max. crosshead speed (mm/min) |
Approx. 120 |
Approx. 150 |
Approx. 150 |
Approx 150 |
Approx 150 |
Approx 150 |
Approx. 200 |
Power supply |
380V, 50/60Hz, 3 Phases |
