Product Specifications
| Prod Model: |
DY811 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: |
OEM |
| Speed: |
60m/Min |
| Warranty: |
12 Months,Lifelong Service |
| Certification: |
CE |
| Dimension(L*W*H): |
2000*700*1400mm |
| Power: |
1500W |
| Material: |
Top 304 Stainless Steel |
| Voltage: |
380/220V 50Hz |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Weight: |
180kg |
| Automatic Grade: |
Automatic |
| Type: |
Automatic Labeling Machine |
| Driven Type: |
Electric |
| Applicable Industry: |
Toy |
| Application: |
Dairy Products |
| Classification: |
Circumferential Surface Labeling Machine |
| Packaging Type: |
Case |
| Packaging Material: |
Export Pack |
Product Description

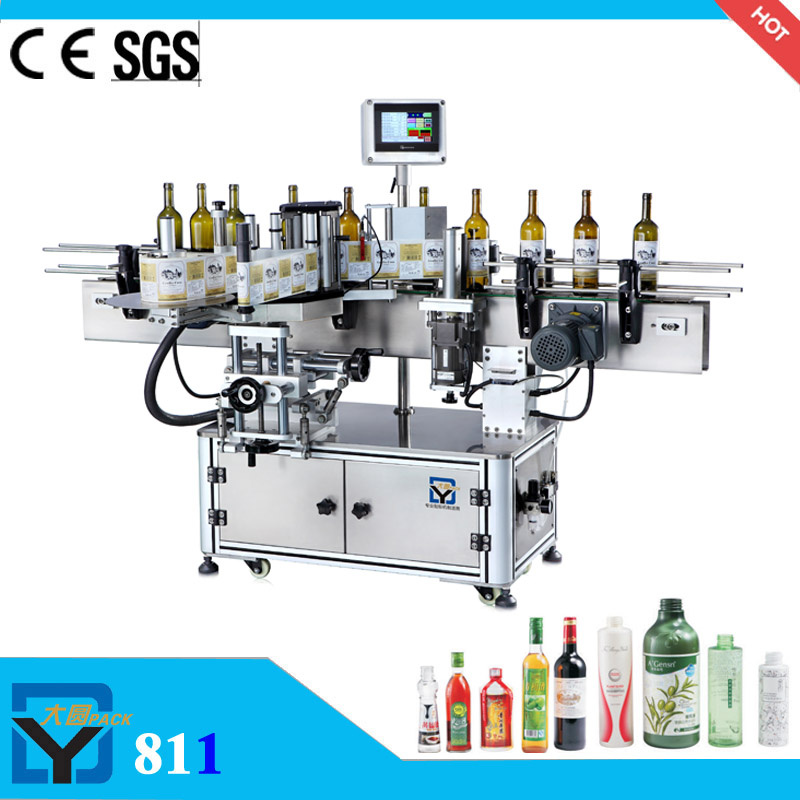

Servo motor automatic labeling machinery
Feature:
1. This DY811 machine is applicable to label cylinder bottles for daily chemicals, beverages, pharmaceuticals etc.
2. The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.
3. The machine is particularly applicable to circular label for big round bottles, high repeat
Accuracy, without air bladder, with special design, no need the structure of separate bottle it makes
The system easier, higher efficiency the range of label is extended because of high-power servo motor. It solves the common problem of the insufficient strength.
4. The machine adopts our company patent technology. The inaccurate labeling is eliminated because of the structure of three rollers capable of locating labeling position, automatically.
5. It can be choose to label one piece or two pieces, and it can label the washing hand liquid Bottles in front and back at the same time.
6. The advanced kind human interface system, on-line helping system, really human-machine communicating, It is easy to operate so the worker can operate the machine in several hours
Specification:
|
Model |
DY811F |
|
Production speed |
45m/min |
|
Labeling accuracy |
±1mm |
|
Label max width |
200mm(can be raised according to the require) |
|
Bottle diameter |
Φ25-Φ120mm |
|
Label inner diameter |
Φ76.2mm |
|
Label outer diameter |
Φ350mm |
|
power |
220V /380V 50Hz 1200W |
The height of the conveyor line
chain plate to the ground |
900mm±50mm(can be produced according to customer requirements) |
|
Operating pressure |
3-5kg 30L/min |
|
weight |
180kg |
|
size |
2000*700*1400mm |
Guangzhou DaYuan Machinery Equipment Co., Ltd. is a professional manufacturer of labeling equipment, focusing on research and development of automatic labeling machine, manufacturing, sales and technical services. And the machine is widely used in food, beverage, pharmaceutical, liquor, daily chemicals, electronics, smart card and tobacco, and so on.
DaYuan company has professional design team, the designers and engineers have more than 10 years labeling research work experience, strong technical force. We will supply customers the complete solution, and meet the market requirement of labeling equipment currency and fast speed.
DaYuan company main sales high-speed rotary labeling machine, three header labeling machine, non-standard labeling machine, double sides labeling machine, flat labeling machine, round bottle labeling machine and horizontal small round bottle labeling machine, with its superior durability and stable performance, perfect intimate the service has won wide acclaim from users.
Management philosophy: Integrity, innovation, win-win.
