Servo Precision High Speed Sheet Cutter
Product Specifications
| Prod Model: |
JRX1400/1700/1900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Style: |
Upper Blade Cutting, Down Blade Fixed |
| High-Precision: |
Single Knife Cutting Machine |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Electric |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
Product Description

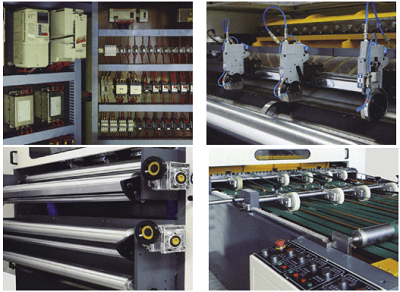

JRX 1400/1700/1900 Servo Precision high speed sheet cutterServo Precision high speed sheet cutter apply the advanced technique of Germany and England,the machine computer control system apply KEB Servo motor from Germany and AC transducer from Japan which are both international of Top brand ,the conveyer belt apply NITTA from Japan ,The pneumatic vibrator apply FINDEVA form switzerland,the electrical system adopts Schneider&Omron.It leads to the speed of cutting paper is so fast and stable.Germany precise bearing and cutting knife asssure the high cutting precision,the controller of soft-touch computer screen is simple and convenient by operation,the anti-curve rack assure the paper flat.This machine is the paper processing machine which is very popular in the paper making and printing industry.
Standard Configuration
1.High-precision single knife cutting machine
2.Prismatic adjustment system for paper
3.Equipment of Electrostatic elimination
4.Middle slitting and waste collection system
5.Automatic counting and label inserting equipment
6.Paper transporting equipment
7.Automatic paper trimming and collecting machine
8.Electrical controlling system
9.Driving motor system
10.Accessory by machine
11.Double arm oil pressure shaftless paper rack
12. Automatic directing and paper tension controller
13.Epuipment of automatic vacuum
14.Operation system:LCD panel by operator
15.Main drive system:AC servo motorSpecification| Model | JRX-1400 | JRX-1700 | JRX-1900 |
| Cutting style | Upper blade cutting, down blade fixed |
Upper blade cutting, down blade fixed | Upper blade cutting, down blade fixed |
| paper | 60-550g | 60-550g | 60-550g |
Max paper
diameter | 1650mm(65")Max | 1650mm(65")Max | 1650mm(65")Max |
Max paper
width | 1400mm(55")Max | 1700mm(67")Max | 1900mm(75")Max |
| Cutting size | 450-1300 mm | 450-1300 mm | 450-1300 mm |
| Accuracy | Cutting size Within
1,000mm,±0.5mm | Cutting size Within 1,000mm
±0.5mm | Cutting size Within 1,000mm
±0.5mm |
Cutting size above 1.000mm,
±0.1% | Cutting size above 1.000mm
±0.1% | ±Cutting size above 1.000mm
0.1% |
| Speed | 300cuts/min | 300cuts/min | 300cuts/min |
| Line speed | 300m/min | 300m/min | 300m/min |
Our company Qingdao Jieruixin Int'l Trading Co., Ltd. is specialize in the carbonless copy paper industry company. The principal products of business are base paper, offset paper, chemical for NCR and thermal paper, machine for paper.
Our goals are: To develop the company in NCR paper and Thermal paper areas with constant enhancement of the efficiency and lower the operational cost.
"Honesty, equity, and customer' satisfaction" is JIERUIXIN promise to their customers. Let's hand in hand to a better future!
