| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |

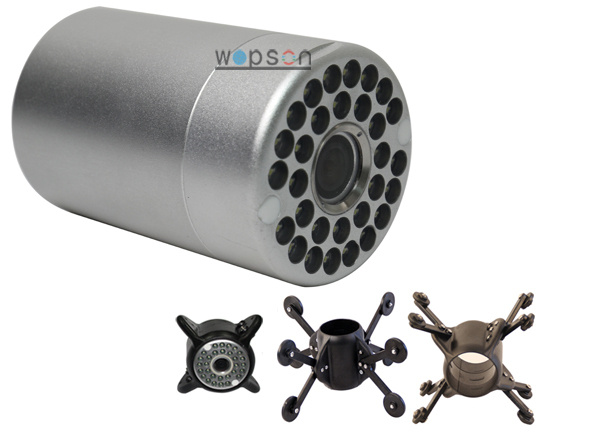

Camera | |
Camera Size | Φ50mm*76mm |
Camera Housing Material | Stainless steel |
Camera Lens Material | Sapphire glass |
Sensor Size | 1/4 inch |
Total Pixels | PAL:720*576 NTSC:720*480 |
View Range | 120 °C |
Illumination | 30PCS white LEDS |
Waterproof Level | IP68 |
Camera Work Current | 100MA |
Camera Power Supply | DC 12V |
Operating Temperature | -10°C to +50°C |
Monitor | |
Monitor Size | 9 inch digital color monitor |
Physical resolution: | 800*480 60Hz |
Monitor Power Supply | DC 12V |
OSD Language | English |
Synchronization range: 30-80 KHz horizontal,55-75 Hz vertical | |
16:9 model |
|
Shock absorber hinges also acts as sun visor | |
Waterproof Connector |
|
Operating Temperature | -10°C to +50°C |

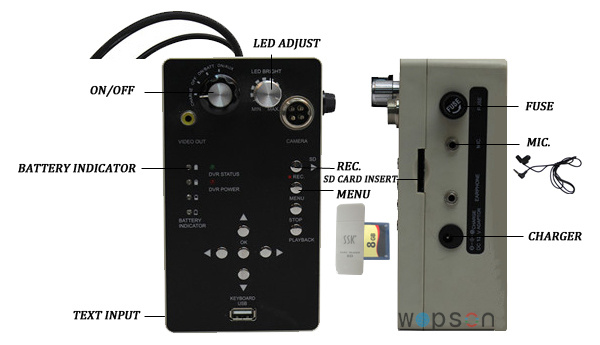

DVR | |
DVR Power Supply | 12V |
DVR Work Current | 200MA |
Storage Medium | SD card (max32G), provide 8G SD card and Reader |
Digital Clock and Digital Calendar | |
Battery Level Display | |
Total Pixels | 720*567(D1) |
Picture Sanp and Movie Record | |
Movie Format | AVI |
Microphone Audio Record | |
Stereo Earphone Output | |
Cable Wheel | |
Cable Size | Φ770(L)*371(W)*810(H) |
Wire Material | Fiberglass rod |
Fiberglass Length | 60m/120m(standard) & as your requirement |
Fiberglass Diameter | Φ9mm |
Meter counter | meter/foot available |
Fiberglass Color | Yellow |
Storage Battery | |
Charger time: | 10hours |
12V 12AH battery | |
Used Time | >260minutes |
Charger | |
Input | AC100-240V~50/60Hz |
Out Put | DC 12V/1000MA |
DC Plug Diameter | 2.1m |
Roller SKIDS Size | |
SKIDS1: Φ220mm | SKIDS2: Φ150mm |
SKIDS3: Φ110mm |
|
| |
Case | |
Case Size | L520*W430*H200 mm |
Case Material | Engineering plastics |
Empty Case Weight | 5.9KG |
Case Color | Black / green/orange |
| Prod Model: | WPS-912DNK |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
| Camera Size: | Diameter 50mm*L76mm |
| Sensor Size: | 1/4inch |
| Camera Viewing Angle: | 120degree |
| Light Rescource: | 30PCS White LEDs |
| Waterproof: | IP 68, Can Work Under 10m Deep Water |
| Cable Length: | 60m/120m(Standard), as Your Requirement |
| Fiberglass Diameter: | 9.5mm |
| Warranty: | 12 Months |
| Certification: | CE, FCC, RoHS |
| Suitable To Inspect The Pipe: | From 60mm to 400mm Diameter(2'' to 16'') |
