Introduction

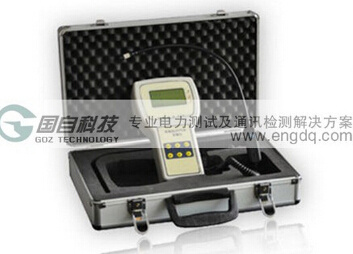

GOZ-JL-III SF6 gas leak detector is a new device to measure product gas leak. With imported sensor, it has high sensitivity, good stability, fast response, simple operation, a large range of movement, accurate qualitative and quantitative detection of SF6 circuit breakers, GIS leak points and annual leakage rate.
The device is suitable for the electricity sector, installation and maintenance units and electric power research institute. It is also very suitable for high-voltage switchgear plant, as SF6 SF6 electrical equipment and imported products, which improved the overall quality of the product. GOZ Technology can meet requirements like China State Grid Electricity Power Research Institute and other relevant authorities' inspection, and issue a SF6 gas leak detector system report.
Features
1. Small size, light weight, serpentine portable handheld probe, connection increasing pliable nature
2. High sensitivity: Super induction, halogen gases subtle response, detectable leakage of gas annually over 3g
3. Wide measurement range: Can detect leakage of SF6 leak rate in the same range with SF6 switchgear
4. High accuracy: Adopting advanced calibration method, giving high accuracy calibration lines to increase the credibility of the results of SF6 leak detection and quantification
5. Intuitive display, sound and light alarm: Digital LCD display with backlight, with a simple and intuitive results. When SF6 existing, the device alarms with light.
6. Fast response and short restore time: Using the new circuit structure, improving response speed and restore time, convenient for on-site detection
7. Rechargeable Nimh batteries with more than five hours of continuous using time, very suitable for on-site high voltage switch factory and research institutes.
Parameter
1. The minimum detection value: 1ppm (× 10-6 by volume)
2. Detection range: 1 ~ 1000ppm (× 10-6 by volume)
3. Response time: <1 second
4. Recovery time: <10 seconds
5. Indication error: ≤ ± 3%
6. Repeatability: ≤ 1%
7. Maximum sensitivity of the sensor at rest: 3g / year
8. Direct way: LCD and multi-frequency sound alarm
9. Gun detection probe length: Handheld serpentine stretch to one meter
10. Continuous working time: 5 hours
11. Instrument Power Supply: Rechargeable nickel-metal hydride batteries, both AC and DC
12. Environment: Temperature: -5 º C ~ 50 º C relative humidity: ≤ 85%
13. Weight: 2 kg
14. Dimensions: Length × Width × Height = 230mm × 130mm × 46mm
