Product Specifications
| Prod Model: |
RT-B10LC3-C00 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
SFP+ Bidi Lr Module |
| Application: |
10g Ethernet |
| Data Rate: |
10g |
| Distance: |
10km |
| Wavelength: |
1270nm/1330nm |
| Media: |
SMF |
| Ddm/Dom: |
Yes |
| Transceiver Type: |
SFP+ |
| Source: |
Dfb |
| Operating Temperature: |
0 to +70 Degree |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
ODF |
| Condition: |
New |
Product Description
Specifications

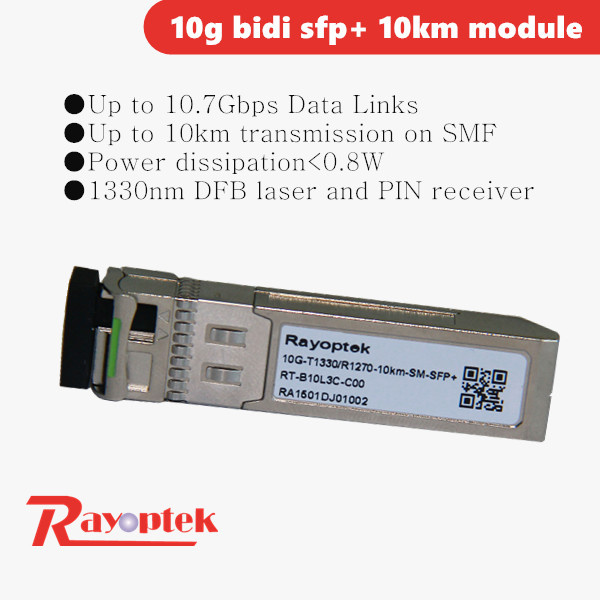

· 10G BIDI SFP+ 10km Fiber Module
· Condition: New Original
· Manufacturer: RayOptek
· OEM and ODM,Buyer Label Offered
· RoHS Compliant
FEATURES
Up to 10.7Gbps Data Links
Up to 10km transmission on SMF
Power dissipation<0.8W
1270nm DFB laser and PIN receiver
EEPROM with Serial ID Functionality
2-wire interface with integrated Digital Diagnostic monitoring
Single Mode LC Receptacle Bi-directional Transceiver
Compliant with SFP+ MSA with duplex LC connector
Single + 3.3V Power Supply
Case operating temperature: 0ºC~+70ºC
APPLICATIONS
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
STANDARD
Compliant with SFF-8472 SFP+ MSA.
Compliant to SFP+ SFF-8431 and SFF-8432.
Compliant to 802.3ae 10GBASE-LR.
RoHS Compliant.
PRODUCT DESCRIPTION
RT-B10LC3C-00 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 10km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Ordering information
| Part Number | Product Description |
| RT-B10LC3C-00 | T1270/R1330, 10Gbps, LC, 10km, 0°C~+70°C, with DDM |
