Wuhan Rayoptek Co., Ltd. >> SFP+ Bidi Lr 1330/1270nm Fibre to Ethernet

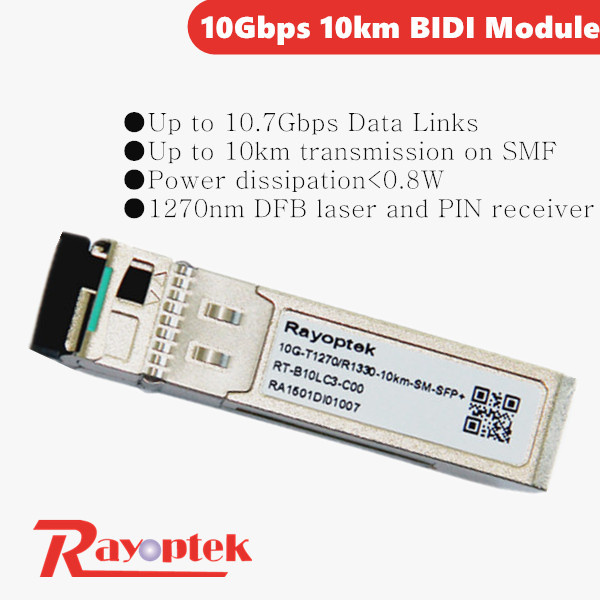

SFP+ Bidi Lr 1330/1270nm Fibre to Ethernet

Name: SFP+ Bidi Lr 1330/1270nm Fibre to Ethernet
Brand: china-manufacturer-directory.com
SKU: 705214882
Availability: InStock
Rating: 4.8 (98 reviews)

Supplier:	Wuhan Rayoptek Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RT-B10L3C-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Bidi SFP+ 10km
Application:	10g Ethernet
Data Rate:	10g
Distance:	10km
Wavelength:	1330nm/1270nm
Media:	SMF
Ddm/Dom:	Yes
Transceiver Type:	SFP+
Source:	Dfb
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

Product Description

Specifications
· 10Gbps SFP+BiDi 10km Fiber Module
· Condition: New Original
· Manufacturer: RayOptek
· OEM and ODM,Buyer Label Offered
· RoHS Compliant

FEATURES

Up to 10.7Gbps Data Links
Up to 10km transmission on SMF
Power dissipation<0.8W
1330nm DFB laser and PIN receiver
EEPROM with Serial ID Functionality
2-wire interface with integrated Digital Diagnostic monitoring
Single Mode LC Receptacle Bi-directional Transceiver
Compliant with SFP+ MSA with duplex LC connector
Single + 3.3V Power Supply
Case operating temperature: 0ºC~+70ºC

APPLICATIONS

10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s

STANDARD

Compliant with SFF-8472 SFP+ MSA.
Compliant to SFP+ SFF-8431 and SFF-8432.
Compliant to 802.3ae 10GBASE-LR.
RoHS Compliant.

PRODUCT DESCRIPTION

RT-B10L3CC-00 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 10km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Part No	Data Transfer Rate	Max Distance	Wavelength
RT-B10L3CC-00	10G	10km	1330nm/1270nm
Form Factor	Fiber Type	Connector	DDM
Single Mode QSFP+	Single mode fiber (SMF)	LC	With DDM
Device Type	Warranty	Interface Type	Operating Temperature
Transceiver module	1 ~ 3 Years	Plug-in module	0 ~ 70 °C

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
