Wuhan Rayoptek Co., Ltd. >> SFP+ Zr Fibre to Ethernet

SFP+ Zr Fibre to Ethernet

Name: SFP+ Zr Fibre to Ethernet
Brand: china-manufacturer-directory.com
SKU: 705215032
Availability: InStock
Rating: 5 (33 reviews)

Supplier:	Wuhan Rayoptek Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RT-P10Z15-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	10GB/S 80km SFP+ Zr
Application:	10g Ethernet
Data Rate:	10g
Distance:	80km
Wavelength:	1550nm
Media:	SMF
Ddm/Dom:	Yes
Transceiver Type:	SFP+
Source:	Eml
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

Product Description

Specifications

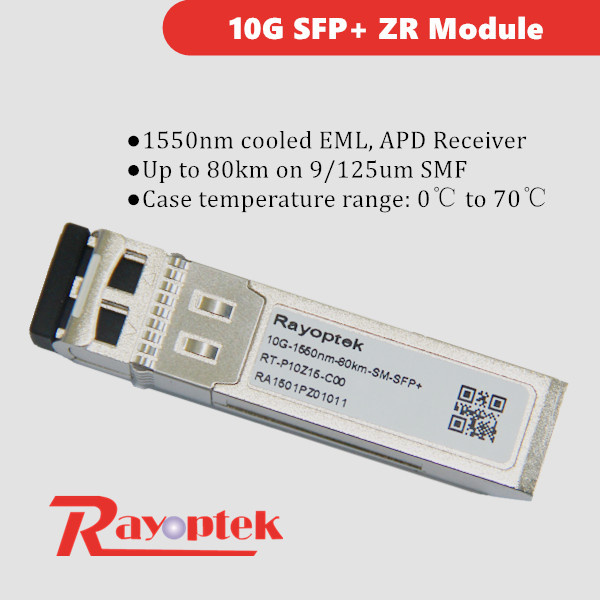

· 10Gb/s 80Km SFP+ ZR Optical Transceiver
· Condition: New Original
· Manufacturer: RayOptek
· OEM and ODM,Buyer Label Offered
· RoHS Compliant

PRODUCT FEATURES
1550nm cooled EML, APD Receiver
Up to 80km on 9/125um SMF
SFP+ MSA package with duplex LC connector
SFI High Speed Electrical Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Case temperature range: 0ºC to 70ºC.
2-wire interface for management and diagnostic monitor
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW
Power dissipation < 1.5W

APPLICATIONS
10G Base-ZR/ZW
10G Fiber Channel
10G Storage system

STANDARD
Compliant to SFF-8431 and SFF-8432
Compliant with SFF-8472
Compliant with IEEE 802.3ae 10GBASE-ZR and 10GBASE-ZW
Compliant with IEC 60825-1 Class 1 laser eye safe
RoHS Compliant

PRODUCT DESCRIPTION
RAYOPTEK's SFP+ ZR transceivers is 1550nm cooled EML laser and APD photo-detector receiver based 10Gigabit SFP+ transceiver, which is designed to transmit and receive optical data over single mode optical fiber for link length up to 80km.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Part No	Data Transfer Rate	Max Distance	Wavelength
RT-P10Z15-C00	10G	80km	1550nm
Form Factor	Fiber Type	Connector	DDM
Single Mode QSFP+	Single mode fiber (SMF)	LC	With DDM
Device Type	Warranty	Interface Type	Operating Temperature
Transceiver module	1 ~ 3 Years	Plug-in module	0 ~ 70 °C

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
