Sfsp Water-Drop Type Wood and Feed Hammer Mill

Product Specifications

Prod Model:	SFSP56*36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Jlne Hammer Mill
Power:	22/30kw
Output:	0.5~1t/H
Rotor:	560mm
Grinding Chamber Width:	360mm
Hammer Quantity:	20PCS
Color:	Multi
Certificate:	CE
Apply For 1:	Wood
Apply For 2:	Corn/Bean
Type:	Hammer Crusher
Object:	Wood
Drive:	Electric
Crushing Degree:	Fine Grinding Machine
Crushing Style:	Grinding and Impact
Principle:	Fixed Culling
Finished Surface:	Outer Surface Process
Cutter Material:	Forge
Compressive Strength (',For Crushing):	//
Tongs' Features:	//

Product Description

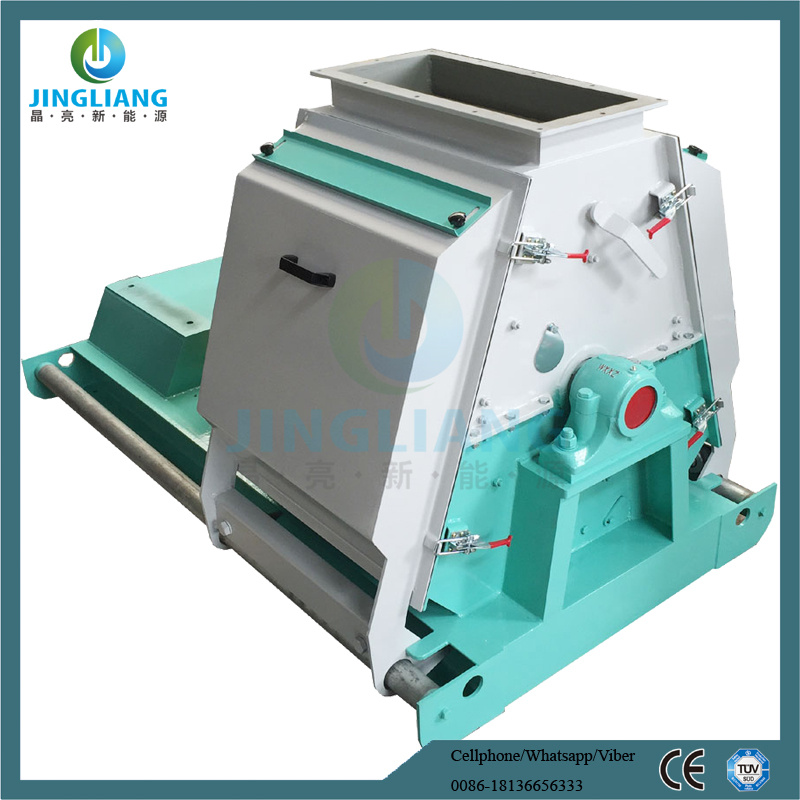

SFSP wood and feed hammer mill

Among the whole wood/feed pellet production line,the SFSP hammer mill plays a very important role,it mainly used to grind large size particle to propor size,make ready for pelletizing step.

suitable for 1	wood shaving,wood chipper,small branch
suitable for 2	agricultural product,like corn,wheat,bean,cereal
the difference	grinding chamber is different,while wood and feed hammer mill looks same in appearance



SFSP wood hammer mill main features:
1.adopt imported bearing in high quality,when working,it has low temperature rising.

2.using famous brand motor to make sure long service life.

3.the special rotor design to replace broken hammer beater easily and quickly,save time and labor.

4.the hammer beater using forge material to prolong hammer mill working time.

5.adopt direct transmission,the reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness.

6.the secondary grinding chamber is assembled in this machine,the base has ood rigidity and little vibration.

7.the SFSP series hammer mill can be equipped with the temperature indicator that can show the working condition.

8.various thickness screen sieve sizes are selectable,quick-starting type door opening machinery,make it fast to change the new screen,easy to operate and convenient to maintain.


SFSP wood hammer mill data:

Model	SFSP56*36
Main power	22/30kw
Output	0.5~1t/h for wood material
Griding chamber width	360mm
Hammer quantity	20pcs
Leadtime	7working days
Warranty	2years excep spare parts
Contact us	Cellphone 0086-18136656333

FAQ for our hammer mill

Question 1	Are you trading or manufacturer?
	We are manufacturer with over 10years experience,we installed many lines oversea and China market.
Question 2	where is your factory?
	our factory is located is JiangSu province,China,the birth-place of ring die pellet mill.Almost all high quality machine from China are produced in this province.

Pls tell your questions,JLNE team are happy to serve&ready to be your business partner at 24/7!Office number 0086-18136656333.
