Product Specifications
| Prod Model: |
SFT |
| Usage: |
Meter for Industry and Home Use |
Product Description

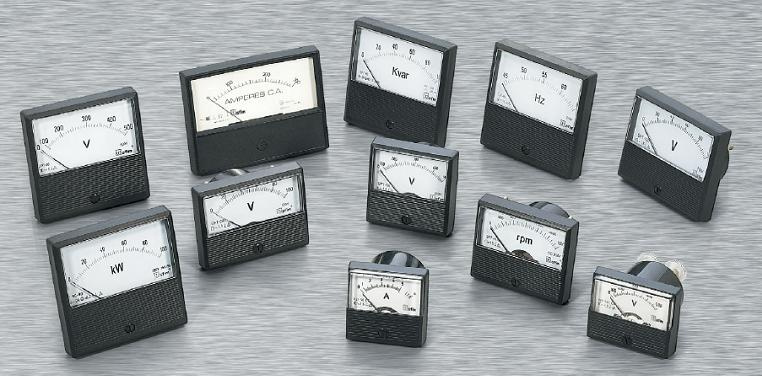

Model: SFT-W80 SFT-60 SFT-670 Ammetrs
Accuracy: Class 1.5
Specification:
Voltage: Single phase: 100V 220V 380V
Three phase three wire: 100V 220V 380V 415V
Three phase four wire: 100V 220(380)V 240(415)V
Above-mentioned can be connectd directly. The following shoude be connected with voltage transformers: 380/100V 500/100V 3K/100V 6K/100V 10K/100V 15K/100V 35K/100...
Current: 1A, 5A
The voltage circuits of the meter connected with voltage transformers. Which secondary voltage is 100V. The current circuits connected with current transformers, whic secondaty current is 5A or 1A. Wattmeters and Varmetes with converter for three-phase three wires or four wire and single phase, which can be used for the balance and unblance burden circuit.
Heat resistance: Case of non-combustible plastic material.
Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side
External converter with size: 72mm*87.2*65mm
Zhejiang tianqi electric Co., Ltd., with 10 years experience in electrical industry, is one of the leading manufacturer of distribution boxes and panel meters in China. Founded in China 1998, located in the beautiful land scape of the largest China bamboo sea in anji economic development zone which place is in the north of zhejiang, covers an area of 100, 000 square meters and has 500 employees.
T&j's product range consists of wall mounting enclosures, floor standing cabinets, stainless steel enclosures, plastic enclosures, terminal boxes, power distribution cabinets, floor standing modular cabinets, console systems, analog panel meters, digital panel meter, DIN rail panel meter, current transformer, shunt.
We also got the quality system certificate of CE, rosh, IP65 and ISO 9002 for our products. It has established the good commercial relations with America, west-europeam, east-Asia, Africa etc.
All kinds of electronics products and its accessories will be designed and manufactured according to the customer' s special requirement.
Sticking to the policy as "no quality, no future!
