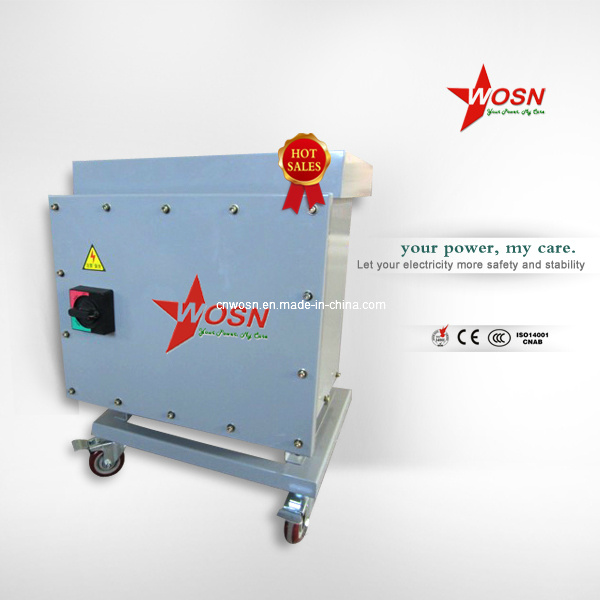

Sg-50kVA Three Phase Power Transformer

Name: Sg-50kVA Three Phase Power Transformer
Brand: china-manufacturer-directory.com
SKU: 728825265
Availability: InStock
Rating: 4.6 (52 reviews)

Supplier:	Wenzhou WOSN Electron Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10Pieces
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Wosn/OEM
Model Number:	Dg/Sg 200kVA
Certificate:	CE, ISO9001
Package Details:	Export Standard or as Your Requirements
Delivery Details:	Within 30 Days After Receive 30% Deposit
Port:	Ningnbo/Shanghai Port
Warranty:	2 Years
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Application:	Power

Product Description

DG/SG Dry Type Transformer DG and SG series single - phase and three - phase dry type transformer adopts high quality material and advanced technology , it has advantages of damp - proof and convenient maintenance, it can be applied to such power transmission and distribution places like underground railway , high building, airport, station, wharf, enterprise, tunnel, etc. It is mainly used in power supply occasions of AC 50~60Hz and voltage less than 500V. All the input and output voltage , connection group and capacity of tapped winding can be designed and produced according to users' requirements. Working Conditions 1.Ambient temperature: -15°C~+40°C 2.Altitude: <1000m 3.Relative humidity: <90% 4.Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer's insulation seriously, also explosive or corrosive medium is not allowed. 5.If any special working conditions that are not in line with the above stipulations, user shall negotiate with us. Main Technical Characters 1.Input voltage: rated voltage ±10% 2.Output voltage: rated voltage +5% (no load) 3.Efficiency: ≥95% 4.Waveform distortion: no additional waveform distortion 5.Function: indication of input voltage, output voltage and current. 6.Protection: over-current protection 7.Can operate itself without anybody attending for a long term 8.Insulation resistance: ≥5MΩ 9.Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min 10.Overload capability: for 1min under two times of rated current

Spec.	Body Size (cm)	Shell Size (cm)	Weight (kg)	Spec.	Body Size (cm)	Shell Size (cm)	Weight (kg)
SG-1-10KV SG-10KVA	... 52× 42× 52	... 70× 35× 77	... 115	SG-150KVA	85× 37× 68		750
SG-15KVA	52× 42× 52	70× 35× 77	165	SG-180KVA	95× 45× 83		930
SG-20KVA	55× 28× 65	80× 40× 87	176	SG-200KVA	95× 45× 83		1080
SG-30KVA	55× 28× 65	80× 40× 87	200	SG-250KVA	95× 45× 83		1180
SG-40KVA	60× 26× 38	80× 40× 87	245	SG-300KVA	105× 45× 95		1450
SG-50KVA	60× 26× 38	80× 40× 87	270	SG-320KVA	105× 45× 95		1700
SG-60KVA	65× 30× 45	90× 50× 95	330	SG-350KVA	105× 45× 95		1950
SG-70KVA	65× 30× 45	90× 50× 95	360	SG-400KVA	115× 55× 105		2150
SG-80KVA	75× 35× 68	100× 50× 105	430	SG-450KVA	115× 55× 105		2450
SG-100KVA	75× 35× 68	100× 50× 105	500	SG-500KVA	120× 60× 115		2700
SG-120KVA	75× 35× 68	100× 50× 105	580	SG-600KVA	120× 60× 115		2950

Wenzhou Wosn Electron Technology Co., Ltd. is a manufacturer specialized in developing, producing and marketing voltage regulators, Distribution Box, Power inverter.

Since the foundation of our company, we have been persisting in taking science and technology as forerunner and abundant technology as backing, and actively introducing overseas advanced technology to unceasingly improve product quality. With many years' specialized management, our products are now best-selling in China and are also exported to Bangladesh, Indonesia, Thailand and other countries in Southeast Asia and Africa. Some of them are well sold to all over the world meanwhile receiving high praise from the majority of customers. All the times, we insist on the "top quality and competitive price". Our manufacture is the one of most famous of voltage stabilizer in Egypt market.

Accorcing to the social progress and development. Our compny devote to the green power. Right now our power inverter have been sold in Euro. And Americal market. Especially the on gird inverter (Gird Tie Inverter ). We made great progress and develop by virtue of our mature technology innovation.

With the new energy industrial developing, we believe the solar power inverter will be more and more popular in the future. We are willing establish good cooperate with all friends in the world.

Our Mission: "Your Power, My Care ".
