Model

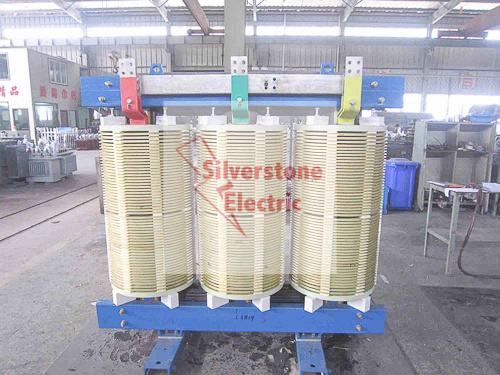

Sg (B) 10 Grade H Insulated Non-Enclosed Dry Type Power Transformer
Rated capacity: 30~2500kVA
Rated HV: 3~15KV
High short-circuit resistant ability
Low loss
Low partial discharge
Low noise
High mechanical strength
Easy installation
Maintenance free
30 Years in Electrics Equipment OEM Manufacturing
Standards
GB6450-1986, GB/T10228T1997, GB/T17211-1998
GB1094.3-2003, GB4208-1993, GB/T10008-1999, JB/T56009-1998
Working Conditions
Ambient temperature:
Maximum: +40 centigrade degrees
Minimum: -25 centigrade degrees
Maximum average monthly temperature: +30 centigrade degrees
Relatively humidity: at 25 centigrade degrees
Daily average RH: not more than 95%
Monthly average RH: not more than 90%.
Altitude: ≤1000m
Shockproof:
≤3m/s2 horizontally
≤1.5m/s2 vertically
Installation Environment:
No obvious dirtiness, no explosive and corrosive gas or powder. The installation site should have good air ventilation and no furious vibration and shocking forces.
Our Transformer Product Range
S10 S11 S13 oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer
SZ10 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, on load tape changer
SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer:F grade insulation
SGB10 SGB11 11KV dry type transformer:H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
S13-M 1full sealed oil immersed power transformer
Dry type reactor
S(B)H15-16 Amorphous Transformer
BKSC(G)Dry-type shunt reactor
QKSC Dry Startup reactor
Smoothing reactors
KD-LK-type low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer
Note: we can design and manufacture special transformer as customers' requirements.
Ordering Instruction: 1.product model; 2.rated capacity; 3.voltage range; 4.regulation range; 5.frequency; 6.connection symbol; 7. Technical specs for customized transformer.

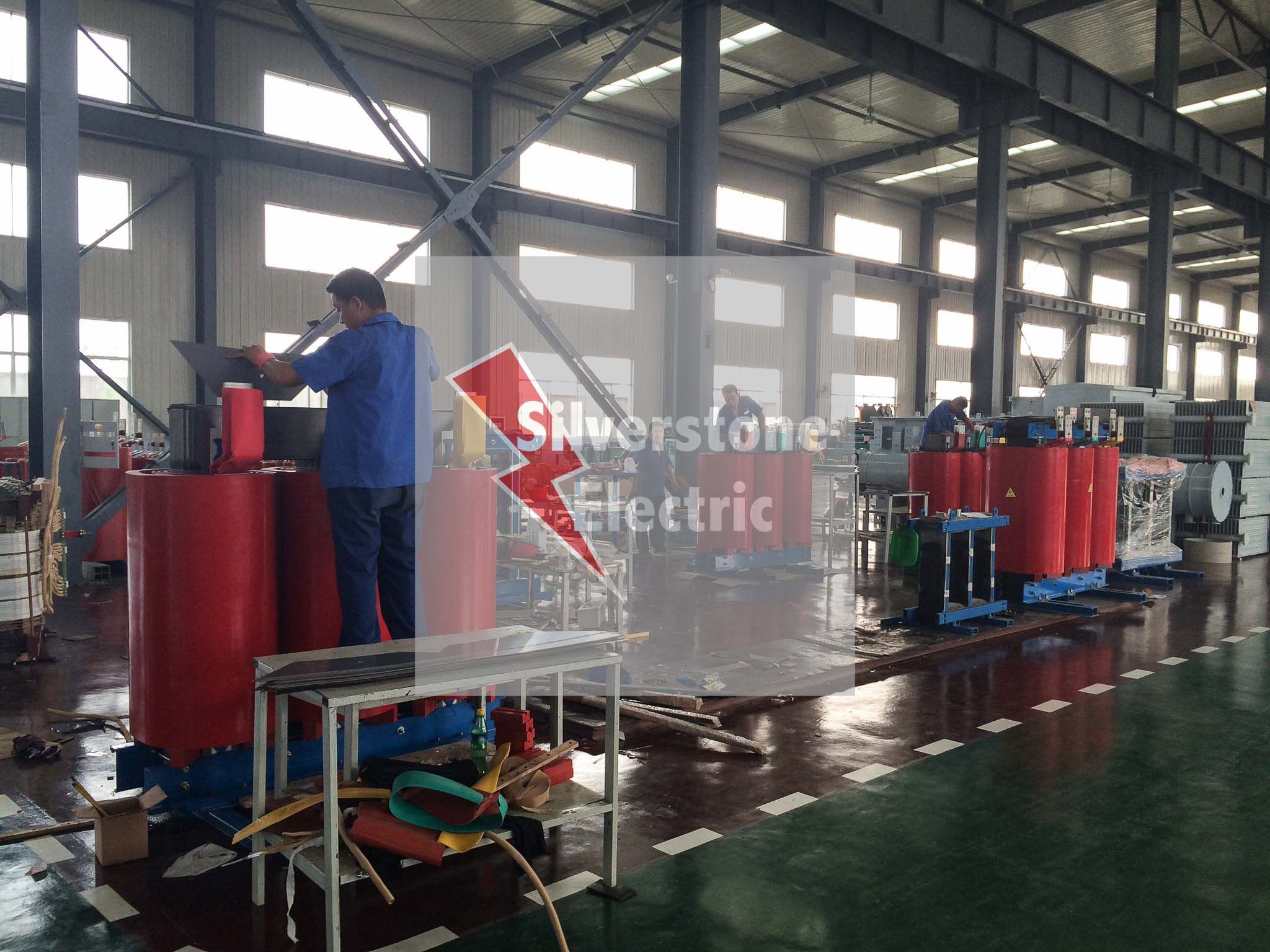

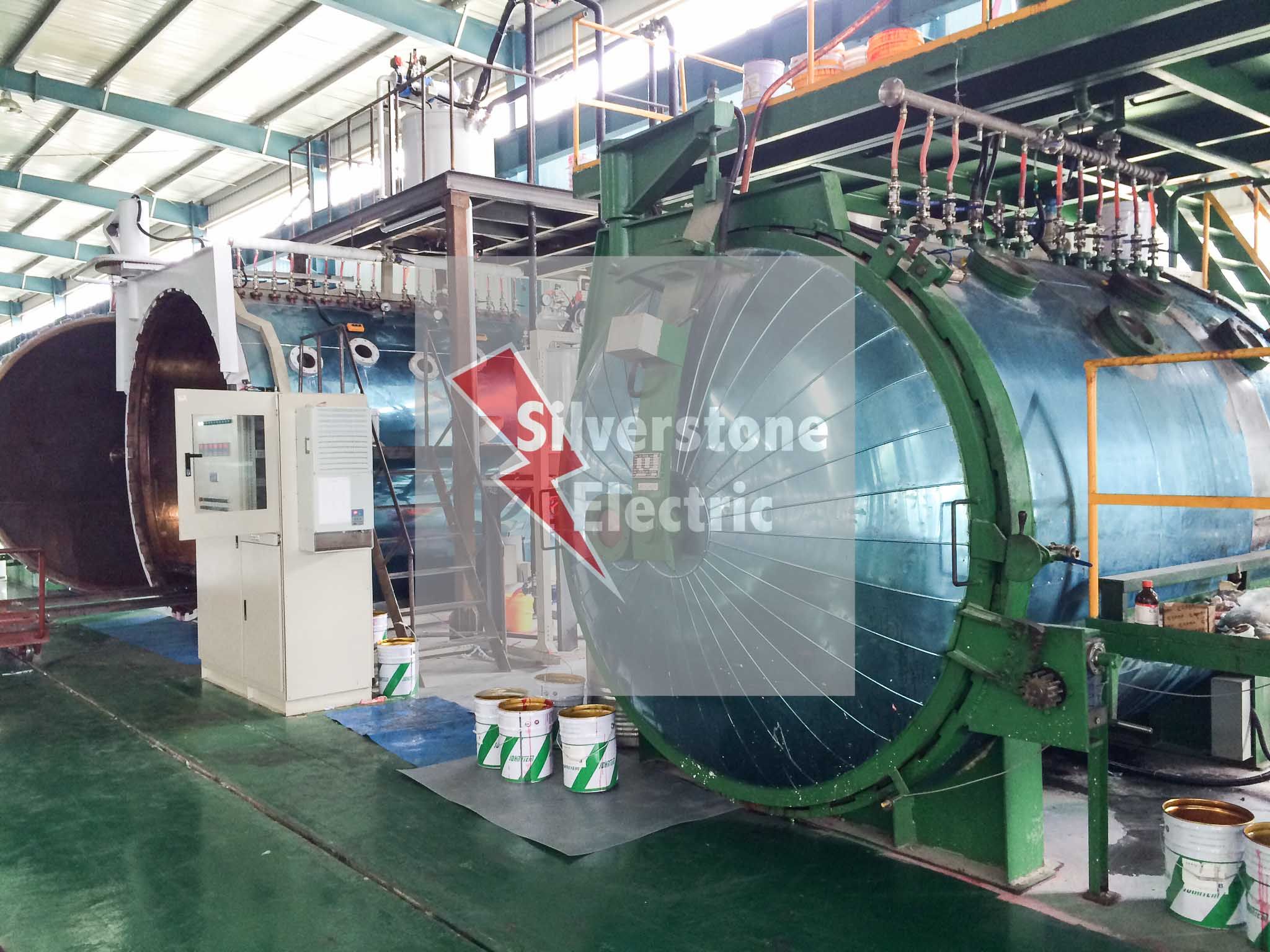

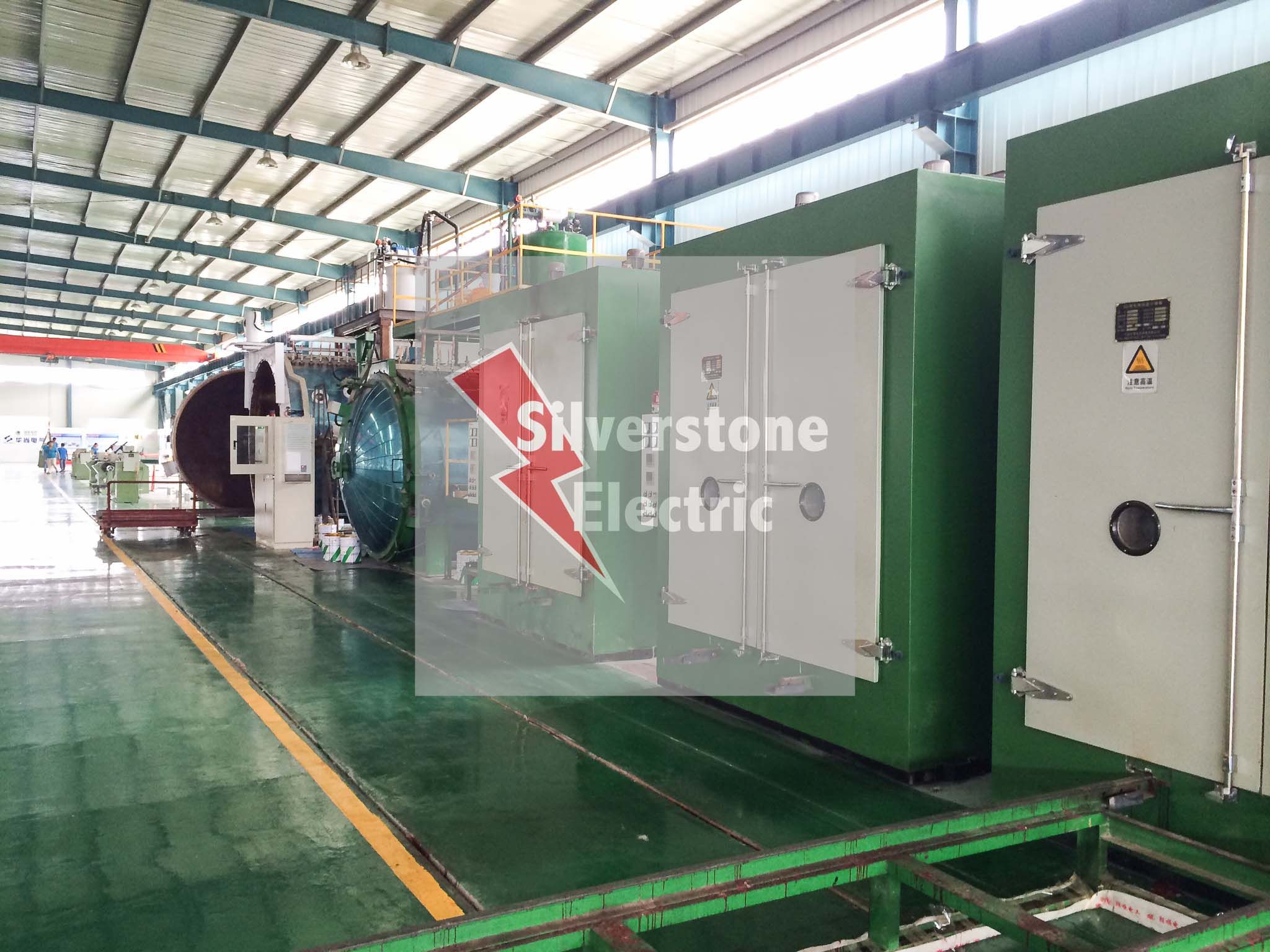

Workshop
Model | Voltage combination | Connection Symbol | No-load loss (W) | On-load loss(w) 154 | On-load loss(w) 75 | No-load Current % | Shirt-circuit Impedance % | ||
HV (kv) | Tapping range | LV (kv) | |||||||
SG10-100/10 | 3 5.5 6 6.3 6.6 10 10.5 11 15 | ±5% ±2X2.5% | 0.4 | Yyn0 Dyn11 | 400 | 1880 | 1530 | 0.8 | 4 |
SG10-160/10 | 540 | 255 | 2080 | 0.8 | |||||
SG10-200/10 | 620 | 3100 | 2530 | 0.8 | |||||
SG10-250/10 | 720 | 3600 | 2940 | 0.7 | |||||
SG10-315/10 | 880 | 4600 | 3750 | 0.7 | |||||
SG10-400/10 | 970 | 5400 | 4400 | 0.6 | |||||
SG10-500/10 | 1160 | 6600 | 5380 | 0.6 | |||||
SG10-630/10 | 1290 | 7900 | 6440 | 0.6 | 6 | ||||
SG10-800/10 | 1520 | 9500 | 7750 | 0.5 | |||||
SG10-1000/10 | 1760 | 11400 | 9300 | 0.5 | |||||
SG10-1250/10 | 2080 | 12500 | 10190 | 0.5 | |||||
SG10-1600/10 | 2440 | 13900 | 11340 | 0.5 | |||||
SG10-2000/10 | 3320 | 17500 | 14270 | 0.4 | |||||
SG10-2500/10 | 4000 | 30300 | 16550 | 0.4 | |||||
Prod Model: | SG10 Dry Type Transformer with H Grade Insulation |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
