Product Specifications
| Prod Model: |
SGA-S2-K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Paint Spray Gun |
Product Description

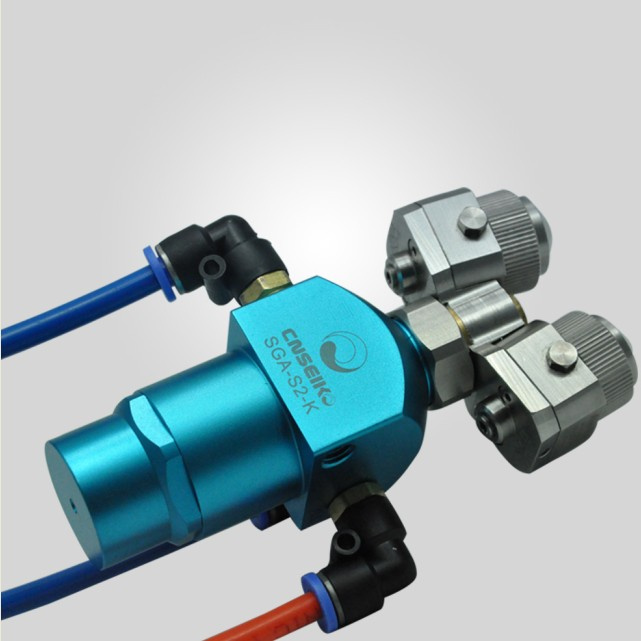

Double grouping gun, also known as double head spray gun, consists of two circular or fan-shaped liquid atomization cap injection main head, two-component material mainly used for injection, two-color spray, nano-spraying, laser color and high precision electronics industry. Fan-shaped and circular liquid atomization cap is selected depending on the use environment. The gun can be of different viscosity in accordance with the jet stream, individually adjustable injection angle, pressure, atomization and flow rate. Air line (pressure control and physical and chemical use) Barrel, direct injection head. Meanwhile, the raw material inlet and the adjustment means designed in the nozzle mouth portion, the gas-liquid conduit separately into each nozzle, uniform pressure to the control of liquids and gases by an independence hair. Our gun is a high precision use tools. Please keep the gun clean before and after use and use and minimal Barrel pollution. In order to prolong the life of the gun.
Eight advantages
1, green
2, operating safety
3, suitable for automation, batch
4, color diversity
5 recyclable
6, can be positioned spraying
7, the workpiece is not the limit of the size and shape of the
8, the operation is simple
General application
1, handicrafts surface spraying
2, mobile phone shell plating
3, a video surface spraying
4 heel surface spraying
5, spray material surface spraying
6, the surface treatment of all products
1, based on the selected fluid viscosity and we spray products, the caliber of the gun can choose as diameter 0.5 to 2.0 selectable.
2, the air cap of the spray gun can be selected circular and fan. The round angle is generally 15 ° , the angle of the fan cap is generally 45 ° , 60 ° And 90 ° Of the fan nozzle spray gun during the installation without a local effect, can be installed in the air compressor can be exposed to any one location.
1, size: 135 mm X 66 mm X 120 mm
2, weight: About 490 g
3, rated pressure 5 Bar/Min
4, the gun body: Import anodic alumina materials
5, nozzle/liquid take: 316 stainless steel
6, nozzle regulator: 316 stainless steel
Cnisoo Hong Kong Industry Limited, is the only firm to get the world famous brand association enterprise (WTB) of the units in this line.
Dong guan Cnisoo Spraying Tools Co, Ltd, is the branch of Cnisoo Hong Kong Industry Limited, located in Hardware industrial city--- Chang 'an towm Dong guan.
We are specializing in exporting and manufacturing of various of air automatic, manual spray gun, declicated pump, removable, portable water curtain cabinet, painting dedicated accessornes. They have been enjoying high reputation for their superior quality and competitive price in America, Europe unious, south-east, Asia Africa and etc.
At present, market trends have in general emphasized the need for enviromental protection and elimiation of panting coatings.
Less wastes and better sfficiencies does not mean extra costs for you.
Choose us, choose environmental protection and energy conservation.
