Product Specifications
| Prod Model: |
FS-A058 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
BS |
| Trademark: |
Carbon Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Bolt Connection |
| Type Of Steel For Building Structure: |
Cold Forming Sectional Steel |
| Type: |
Light Steel Structure |
| Member: |
Steel Structure H Beams and Columns |
| Carbon Structural Steel: |
Q235B, Q345b Steel Structure |
| Residential Wall Structure: |
Sandwich Panels or Corrugated Steel Sheet |
| Application: |
Mining Industry |
Product Description

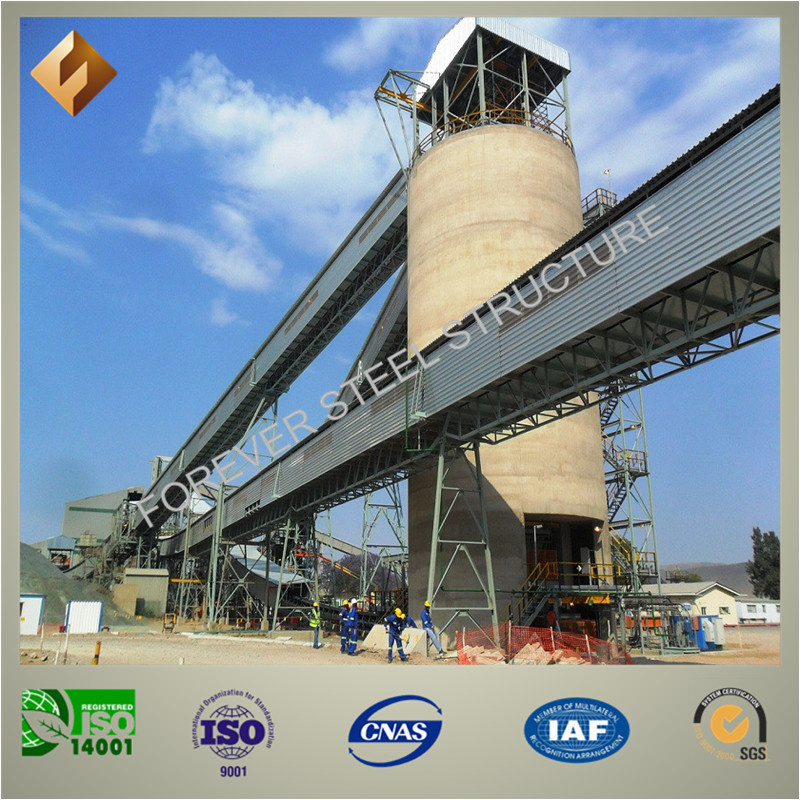

General description of SGS certificated mining conveyor steel structure:
Conveyor system is widely used in mining, metallurgy industry to transport both of bulk materials and end products. According to different technology it can be used in single, multiple or combined with other equipment to form horizontal or incline transportation system to satisfy different production line arrangement needs.
1. Components of conveyor steel structure:
1) Intermediate frame:
Inter mediate frame is part of belt conveyor, used for installing cross beam of idler and the entire idler. Generally made of box iron or angle steel, it is fixed together with H-frame from below. Length: 3-6m. Specification of box steel and angle steel varies with different breadth of belt conveyor.
2) H frame II type (landing leg):
It is more firm by adding two inclined struts to H frame I type. Normally, H frame I type and H frame II type are used in rotation.
3) Adjustable Landing leg:
To adjust the height of the conveyor, some landing legs (H frame) are made adjustable. Thus making it convenient to adjust the height during installation. Telescopic upright post, made of steel tube or U steel, is used to adjust the height of landing legs. The number of required posts is up to the terrain where the belt conveyor is used.
4) Carling:
The underground belt conveyor often replaces the intermediated frame with steel tube, which is generally called carling. Caring is used for supporting idler. Under normal circumstances, each section of steel tube is m in length. Carling is likened by quick coupling with H frame. On each section of steel tube hang two sets of trough-shaped idler. Specification of steel tube varies with different breadth of belt conveyor, such asφ 60, φ 75.5, φ 89.
Our Advantages of steel structure:
1. Long History and Rich Experience in steel structure industry:
We have more than 9 years' experience with steel structure designing, manufacturing and steel building projects running. Now our projects stand in more than 40 countries around the world.
2. Advanced Equipment and Professional Production Line with Well-trained workers:
More than 200 skilled workers running the 6 steel structure production lines all year round to ensure the project finished on time. All equipment is up to standard and all the facilities are maintained periodically by professional technicians.
3. Wide Range of Steel Structure Products:
Our products almost include all kinds of steel structure buildings, such as light steel workshops and warehouses, heavy industrial steel structure buildings, steel commercial buildings, prefab houses, container houses, steel structure aircraft hangars, space frame and pipe truss roofs, and mining belt conveyor galleries.
4. Solid Design and Management Ability:
We have more than 20 experienced engineers who are familiar with the structure design and management procedures of all steel structure projects. There is a high-qualified, high-efficiency and professional technical team ready to find best solutions for you at any time.
5. Best Service and Qualified QC Management:
Every one of our marketing managers is well trained and willing to provide best services. And we have a strict standard for finished products testing, to ensure the quality of all our steel structures. Meanwhile we have also passed the ISO 9001 quality management system certificate.
Qingdao Forever Steel Structure Co., Ltd lies in the City of Qingdao, a prosperous port for international shipping lines and hometown of many world-famous industry brands. Established in the year 2005, Forever has been specializing in the design, fabrication, exporting and installation on varied kinds of steel structures for 9 years.
There are 6 production lines for steel fabrication that all consists of advanced equipment in a total plant area of 100, 000 square meters. Different kinds of structural steel parts including welded H beams, T beams, "+" beams, box beams, steel pipe parts, angle steel parts, lattice beams, special shaped steel components, etc. Are fabricated here with an annual production capacity of 50, 000 metric tons. More than 200 experienced workers are busy with the production every day.
Qingdao Forever Steel Structure Co., Ltd has a professional technical team of more than 20 experienced engineers who are familiar with the structure design, local condition, customers' preference, governments' codes, etc. For overseas markets. Our team can help to design the structures of light steel gabled frames, commercial buildings, industrial platforms, pipe truss & space frames, petroleum pipe galleries and trestle structure for coal conveyors.
Forever has acquired the ISO9001 quality management system certificate and ISO14001 environmental management system certificate. With inherent honesty and growing strength that never stops, Forever has attracted customers from all over the world and our products have been shipped to more than 10 countries in Northern Asia, Middle East, Africa, Australia and Latin America.
