Product Specifications
| Prod Model: |
LT-222 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter After DIP: |
2.0-4.0mm |
| Hole Size: |
60*80 80*100 100*120mm |
| Cage Size: |
1*1*1m 2*1*0.5m 2*1*1m, etc |
| Tensile Strength: |
400-800 Mpa |
| Zinc Coating: |
50G/M2 High Zinc---200G/M2 |
| Package: |
100 Sets Into a Bundle, or Mesh in Rolls |
| MOQ: |
2000 Squre Meter |
| Side Wire: |
3.5mm |
| Tie Wire: |
2.2mm |
| Production: |
2000m2 Per Day |
| Hole Shape: |
Hexagonal |
| Application: |
Gabions |
| Material: |
PVC Coated Steel Wire |
| Surface Treatment: |
PVC Coated |
Product Description

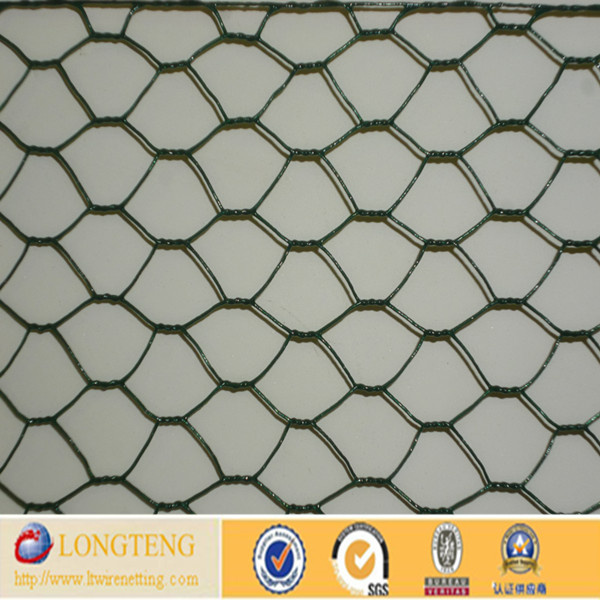

SGS Factory PVC Coated Hexagonal Wire Netting
Company Information
Hebei LONGTENG Metal Products Co., Ltd. Is engaged in producing various wire mesh products as well as wire mesh further processing.
Product Description
Anping Longteng Metal Products Co., Ltd supply galvanized woven gabion basket, it also known as wire cage rock wall, retaining wall wire mesh, widely used in water conservancy projects, roads, railway, embankment protection project.
Wire cage rock retaining wall material:
(1) Galvanized wire: Diameter 2.0MM-4.0MM, tensile strength >380Mpa
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa
(3) Coated galvanized wire: PVC coated
(4) Zinc 5% Aluminum
Complete wire cages size:
1*1*1m
2*1*0.5M (1 Partition in the middle)
2*1*1M (1 Partition in the middle)
3*1*0.5M (2 Partitions )
3*1*1M (2 Partitions)
4*1*1m (3 Partitions)
Normal wire cage rock retaining wall details:
Wire diameter: 2.5-3.0MM
Side wire: 3.5MM
Tie wire: 2.2MM
Hole size: 6*8cm 8*10cm 10*12cm
Zinc coating: 50G/M2 high zinc---200G/M2
Hexagonal wire mesh Weaving
Straight twist, reverse twist, double twist, the first series after plating, after plating the first series, hot galvanized, zinc and aluminum, galvanized, PVC plastic bag and so on.
Features and applications:
PVC wire cages with firm structure, flat surface, corrodion-resisting, oxidation-resisting, overall flexibility and stability features. Widely used in water conservancy projects, roads, railway, embankment protection project.
Hexagonal wire mesh Features
Rugged, flat surface, with good corrosion resistance and oxidation resistance.
(1) easy to use, simply mesh tiled walls, building cement can be used;
(2) the construction is simple, no special techniques;
(3) has a strong ability to withstand natural damage and corrosion resistance and resistance to adverse climate impacts;
(4) can withstand a wide range of deformation, but not collapse from a fixed thermal insulation effect;
(5) excellent technology foundation to ensure the uniformity of coating thickness, corrosion resistance stronger;
(6) to save transportation costs. It can be shrunk to a small volume and moisture-proof paper packaging involved, taking up very little space.
Hexagonal wire mesh purpose
For raising chickens, ducks, geese, rabbits and zoo fence, machinery and equipment protection, highway guardrail, sports venues fence, the road green belt protection. The screen in the production of a box-shaped containers, cages filled with rocks, etc., can be used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering, flood control and fighting a flood.
Package:
30/ gross, directly into container in bulk packaging; Or 50-100 pieces mounted into a bundle of plastic film packaging.
If have interests in our products, welcome to contact me for gabion basket prices, thanks!
Tel: 86-318-7798188
Fax: 86-318-7599198
Mobile: 13273325376
size |
mesh (MM) |
diameter (MM) |
diameter(PVC)/
inner dia/coated
diameter(MM) |
MAX width (M) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4.3 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4.3 |
