Product Specifications
| Prod Model: |
GSRHC TYPE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Inductive Choke |
| Type: |
Choke Inductor |
Product Description

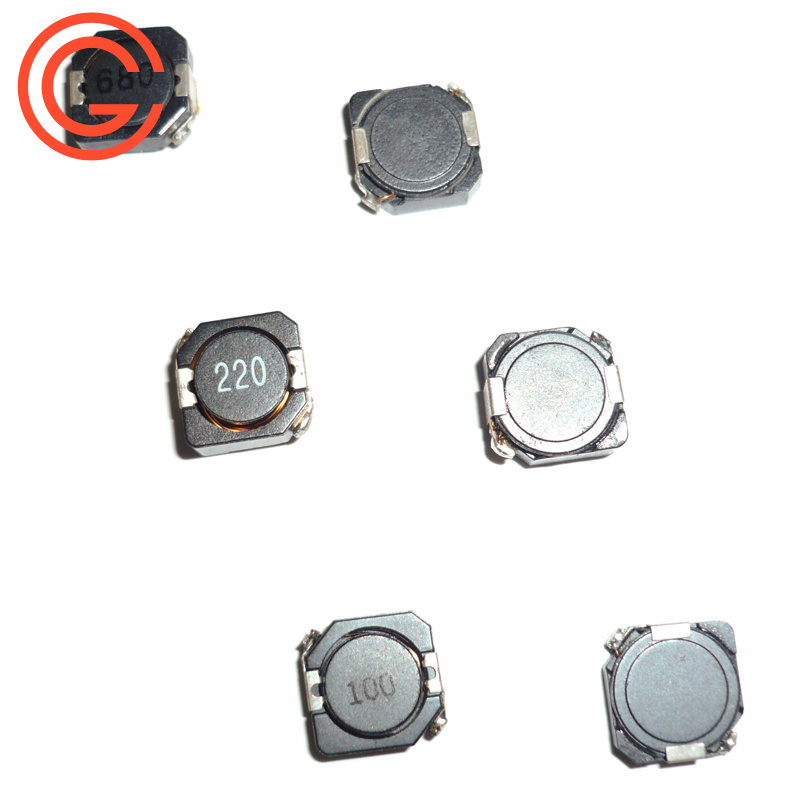

GSRHC TYPE (SMD POWER INDUCTOR)
Test Equipment and Conditions
1. Maximum allowable DC current is that which causes a 35% inductance reduction of the initial value or coil temperature to rise 30º C. Whichever is smaller (Reference ambient temperature 20º C)
2. Maximum allowable DC current is that which causes a 30% inductance reduction of the initial value or coil temperature to rise by 40º C. Whichever is smaller (Reference ambient temperature 20º C)
3. Operating temperature: -25º C~+85º C
FEATURES
A. Magnetic shielded surface mount inductor with high current rating.
B. High inductance High power inductor.
C. Wire burst resistance due to special construction.
APPLICATIONS
A. DC-DC converter transformer.
B. Digital camera.
C. LCD television set.
Product identification
Gsrht4d28 1RO M
(1). Product type code and size code
(2). Indutance code
(3). Inductance tolerance (k± 10%, l± 15%, m± 20%, n± 30%)
G-chen will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
At Generic, we design and manufacture a wide range of high quality electronic components for customers all arotumd the world.Our product line includes from off the shelf RF chokes, coils and SMD inductors to custom made transformers.
Understanding our customer needs and meeting customer' s demand, is a priority.By working closely with our partners, we are able to keep the lines of comntmication open and provide a more personalized service.Generic.' s extensive technical support group works directly with our customer to ensure their needs are met, saving them considerable time and money.
Since our incorporation in 1986, we have grown considerably and have facility in Dong Guan, Fujian and Suzhou China which allows us to significantly expand our supports and products to all our customer' s facilities in China and other parts of the world.With om' HQ still in Taiwan, China plants will be the primary msnufacturing sites for our line of SMD chips & Inductors, power chokes, coils and transformers.
With our engineering ingenuity, and talented employees, we proudly maintain the following pledge to all our customers:
Competitive pricing at all times
JIT delivery
Extensive technical support and project design assistance
Quality without compromise
State of the art manufactm'ing
Prototypes availability
Extra savings on high volume quantity
