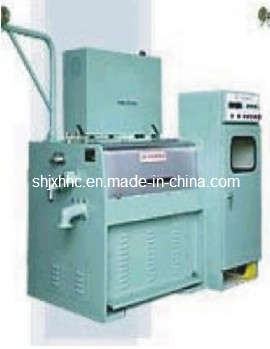

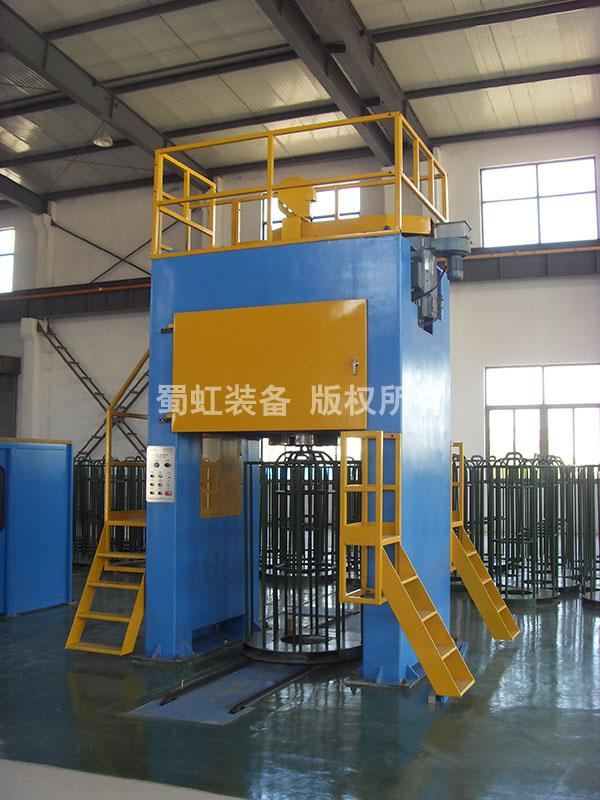

SH-22DT Copper Fine Wire Drawing Machine With Inbuilt Annealer
Product Specifications
| Prod Model: |
SH22DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customize |
| Type: |
Horizontal Metal Drawing Machine |
| Usage: |
Standard Parts |
| Max.Inlet Wire Dia.: |
0.6mm |
Product Description
1. Application: Copper wire softening and tooling etc.,
2. Inlet diameter: Φ 0.6 _ Φ 1.2mm
3. Outlet diameter: Φ 0.1 _ Φ 0.32mm
4. Mechanical speed: 2000 MPM/ MAX
| No. | Name | Specification |
| 1 | Inlet diameter | Φ 0.6 _ Φ 1.2mm |
| 2 | Outlet diameter | Φ 0.1 _ Φ 0.32mm |
| 3 | Mechanical speed | 2000 MPM/ MAX |
5. Number of dies: 22(prepared by users), dies externaldia: Φ 25mm× 6_10mmT.
6. Mechanical elongation: The 1st ~21st die: 15%: The 22ND die: 8%
7. Elongation type: Stand with 4 bearings, continuous stretching
8. Main motor power: 11KW AC motor controlled by transducer.
Reel motor: 4KW AC motor controlled by transducer.
9. Equipment structure: Steel welding, inside pressure dealing methods
10. Transmission; Whole transmission is flat belt transmission.
11. Expanding pulley: Spraying Chromium oxide drawing wheel.
12. Expanding lubricating system: Drawing oil volume 40kl/min
(Without water pump)
Eye die and drawing wheel up-down spraying.
13. Reeling shaft size: Bottom dia. Φ 217mm outside dia. Φ 300mm
Winding load copper wire volume: 50kg.
14. Up-and-down shaft:
15. Reverse: Motor drawing with 60W belt working at the same time, the width of the drawing wire is 250mm.
16. Reeling controlling method: With tension buffer rod and automatic control
17. Safety guard: Transmission area Security cover net style hole.
Drawing area Security cover is Stainless steel plate. Winding area Security cover is whole closed with 3 Observed windows.
18. Brake: 10kg Electromagnetic brake.
19. Operation panel and controlling box
