Shampoo Multilane Four-Side Sealing Sachet Packing Machinery
| Price: |
US $ 22000-25000Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,Money Gram |
DXDO-J500E Catsup Four-side Sealing & Multi-line Packing Machine
Additional Info.
a. Control with servo motor
b. Machine shell adopts AISI 304 Stainless, Material touching parts: AISI 316 stainless steel.
c. Guarantee: guarantee for one year, within this period if spare parts national broken differ from artificial broken, seller supply spare parts with free. The customer should be responsible for the express fee.
Main Application:
1. Advanced performance, high power, low noise, compact structure, Operate steadily , easy to maintain, and has a long life span.
2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
3. A high degree of automatic.machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing,notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.
4. High precision whole rolling type heat sealing roller are adopted as sealing mould. 4-side sealing, multi-line sachets form. Because catsup material will easily leak in sealing side, an extra smooth bag shape, delicate and beautiful, packaging with high efficiency.
5. Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface.
6. Accurate in measurement, According to different paste viscosity, specifically designed of reciprocating plunger pump with rotate valve controlling, matched with stroke adjustment air cylinder feeding, each line's dosage can be adjusted easily and accurately.
7. This machine can according to customer's request, add variety of feeding device, one machine also can fill variety of liquid material.
8. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function..
9. Adaptability of the package film. the sealing temperature of machine is with automatic control, and with high control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, as PET/AL/PE,PET/PE,NY/AL/PE,NY/PE and so on.
10. Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting knife or abnormal shape knife. Printing can can choose embossing(hard batch) or ink wheel printer. And the matching of alarm requirements and so on.
Usage:
Suitable for packing catsup, thick paste material in the pharmacy(medicine), food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste,Curry sauce,Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.

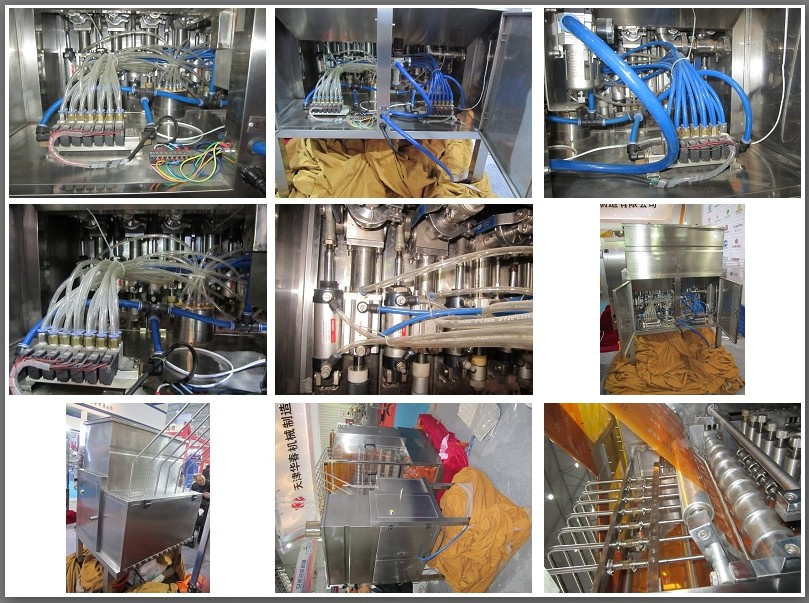

Detail picture of machine :

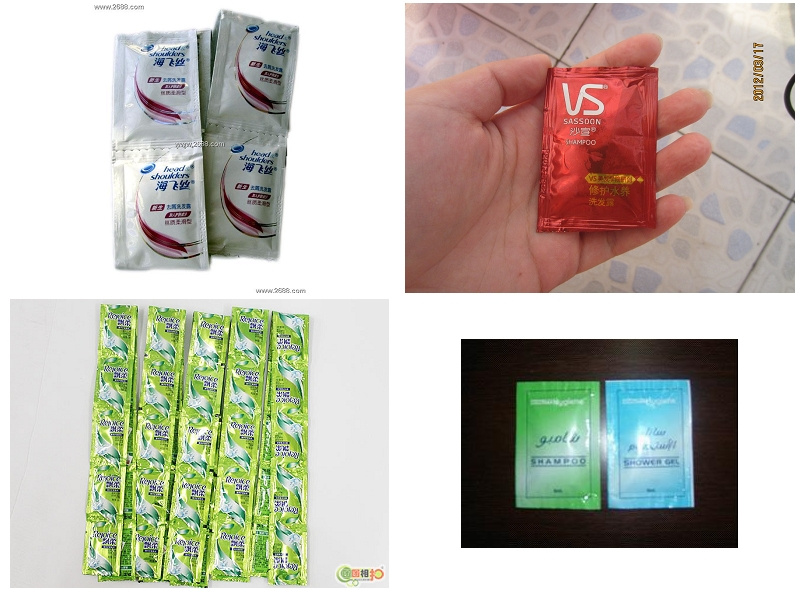

Shampoo Sample:
| Items / Model | DXDO-J500E |
| Pouch length | 50~300mm |
| Pouch width | 32~105mm |
| Packing speed | 20~40times/nim(depend on pouch size and material) |
| Measuring range | 1~100ml |
| Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
| Max width of film roll | 500mm |
| Max film roll diameter | Φ420mm |
| Film roll core diameter | Φ75mm |
| Power voltage | 380V50Hz(do as customer's) |
| Power | 12 Kw |
| G.W | 1500kg |
| Package size | 1680x1280x1950mm(L*W*H) |
| Prod Model: |
DXDO-J500E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE,ISO9001 |
| Applicable Industry: |
Different Kind of Industry |
| Application: |
and So on |
| Type: |
Catsup/Paste Packing Machine |
| Automatic Grade: |
Fully Automatic |
| Driven Type: |
Servo Motor |
| Packaging Type: |
Sachet |
| Packaging Material: |
Composite Film Materials |
| Material Type: |
Sauce Material |
