Shanghai Harse Electromechanical Technic Co., Ltd. >> Shanghai Indoor Full Color LED Display (HX-IF5)

Shanghai Indoor Full Color LED Display (HX-IF5)

Name: Shanghai Indoor Full Color LED Display (HX-IF5)
Brand: china-manufacturer-directory.com
SKU: 709907395
Availability: InStock
Rating: 4.8 (104 reviews)

Supplier:	Shanghai Harse Electromechanical Technic Co., Ltd.
Price:	US $ 800/Square Meter
Min Order:	5/Square Meter
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	HX-IF5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Application:	Stage Performance
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	5mm
Certification:	FCC
Pixel Density:	40,000 dots / m²
System Operating Platform:	WIN2000
IP Rating:	IP21

Product Description

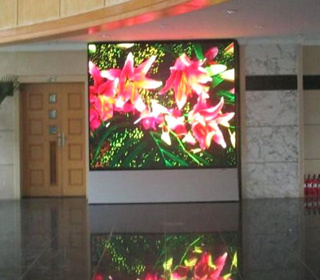

P5 SMD Full Color Display, high definition indoor LED display

1. High definition indoor LED display
2. Stable quality
3. Fast delivery
4. Quick response for aftersales-service

Application:
1. Traffic environmetns, such as bus stop, airport, part and so on as the guiding system.
2. Banks, estate, stock to show the information of stock, exchange, estate and so on.
3. Shops, gym, postoffice, hotel etc to show the important information.

Advantages
1. Professional manufacturering
2. Distributing scanning method and modularity in designs.
3. Constant static driving method and the brightness can be adjusted by itself.
4. Super brightness and pure pixels
5. Clear pictures with distortion and double images.
6. Can be controlled by LAN remotely.

Package:
1. Wooden case
2. Flight case (for rental)

Delivery:
Within 15~25 days after receiving the deposit.

Technical Specification of indoor led display
1	Pixel pitch (mm)	P5	P6	P7.62	P8	P10	P12
2	Module size (mm)	160*80	192*96	244*122	256*128	320*160	192*192
3	Cabinet size (mm)	640*480	768*576	976*732	1024*768	1280*960	768*576
4	Cabinet Resolution (pixels)	128*96	128*96	128*96	128*96	128*96	64*48
5	Pixel density (dots/sqm)	40000	27778	17222	15625	10000	6944
6	Brightness (nits)	2200	2000	1600	1500	1500	1000
7	Power Consumption (Max)	1700	1400	1000	1000	1000	800
8	Working Voltage	DC 5V
9	Power Supply	AC 110V or 220V
10	Working Temperature	(-20°C~+60°C )
11	Humidity	10%_90%RH
12	Pixel Configuration	1R1G1B, SMD
13	Color Temperature	5000_9500
14	Display Color	16M
15	View Angle	150°/150°
16	Control Distance	120 meters by LAN cable
17	Control Mode	Synchronous with PC
18	Drive Mode	1/8 duty				1/4 duty
19	Frame Rate	60Hz
20	Refresh Frequency	600 Hz
21	LED Lifetime	≥100,000 Hours
22	Operating Platform	WINDOWS(WIN98,WIN2000, WIN XP)

Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.

"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.

Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.

Welcome to our Showroom and My Products for more detailed offer info.
