Product Specifications
Prod Model: |
NT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inquiry Feedback: |
Within 12 Hours |
Delivery Period: |
20 Days |
Frequency: |
50-60Hz |
Inside Packing: |
Plastic Cover |
Outside Packing: |
Wooden Case |
Warranty: |
2 Year |
Install: |
Engineer Available |
Heat Origin: |
Electricity |
Brand: |
Nasan Microwave Dryer |
OEM: |
Available |
Type: |
Drying Oven |
Condition: |
New |
Application: |
Solidity |
Fuel: |
Electricity |
Operating Pressure: |
Normal or Vacuum |
Cloth Membrane Forms: |
by Request |
Fluid Bed Drying Equipment Type: |
by Request |
Product Description

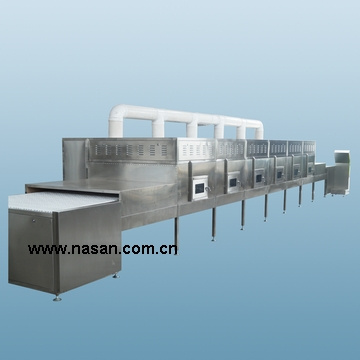

Nasan Shell Dehydration Equipment
Model | Unit | NT-18 | NT-30 | NT-60 | NT-90 | NT-120 | NT-200 | NT-300 |
Microwave power | KW | 18 | 30 | 60 | 90 | 120 | 200 | 300 |
Max Water Vaporize | Kg/h | 20 | 34 | 68 | 100 | 135 | 230 | 350 |
Apparent Power | KVA | ≤24 | ≤40 | ≤72 | ≤108 | ≤144 | ≤240 | ≤360 |
Voltage | V | 110-440 | 110-440 | 110-440 | 110-440 | 110-440 | 110-440 | 110-440 |
Frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Power Control | KW | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 |
Temperature Control | °C | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 | ≤±1 |
Drying Temperature | °C | 60-200 | 60-200 | 60-200 | 60-200 | 60-200 | 60-200 | 60-200 |
Microwave Leakage | Mw/ cm2 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Feeding Height | mm | 60-100 | 60-100 | 60-100 | 60-100 | 60-100 | 60-100 | 60-100 |
Feeding Width | M | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
Conveyor speed | M/Min | 0.1-3 | 0.1-3 | 0.1-3 | 0.1-3 | 0.1-3 | 0.1-3 | 0.1-3 |
Working Temperature | °C | -5-45 | -5-45 | -5-45 | -5-45 | -5-45 | -5-45 | -5-45 |
Working Humidity | % | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
Machine Width | mm | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
Machine Height | mm | 1600 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
Machine Length | mm | 7300 | 10200 | 15000 | 20500 | 26000 | 40300 | 59600 |
Machine Weight | Kg | 800 | 1200 | 2000 | 2800 | 3600 | 5800 | 8000 |
What is Microwave:
Microwave refers to the electromagnetic waves frequency between 300MHz-300GHz, wavelength is between 1mm to 1m. Microwave usually shows penetration, reflection and absorption characteristics. For glass, plastic and porcelain, microwave will penetrate it without being absorbed. For water and food, it will absorb microwave and heating itself. For metal material, it will reflect the microwave.Water molecule is polar molecule, it will change its polarity and friction motion cause by the effect of high speed change of high frequency electromagnetic field. Then the microwave electromagnetic field energy can be converted into heat energy, and achieve the purpose of drying. Microwave uniform heat up the material inside and outside because of the strong penetrability, will not appear outside dry but inside wet. Body heat source state formation shortens the time of heat conduction and save a lot of drying time.Microwave sterilization temperature is from 70°C to 105°C, period is from 90 to 180 seconds. Microwave thermal effects change the bacterial protein, make it lose nutrition, reproduction and survival conditions and death. Microwave electromagnetic field can make normal growth and stability of the genetic breeding of bacteria nucleic acid [RNA] and deoxyribonucleic acid [DNA] number of hydrogen bonds slack, breakage and recombination, thereby inducing genetic mutations, chromosomal aberrations and even rupture.
Microwave Drying Advantages:
1) Microwave drying equipment effect at once, power adjustable, transmission speed adjustable, no thermal inertia residues, compare with the conventional process equipment to save energy by 50%.
2) Microwave dryer make the material itself become body heat source state, no need heat transfer process, can achieve the drying temperature within a very short time.
3) Due to the fast drying speed, microwave drying machine maximally save the activity of the materials, nutrition ingredient and the original color.
4) Microwave uniform heat up the material inside and outside because of the strong penetrability, will not appear outside dry but inside wet.
5) Microwave can fast sterilization under low temperature sterilization, material store for a long time will not mildew.
6) Microwave leakage control in metal drying chamber and the waveguide, no radiation damage and harmful gas emissions, not produce waste heat and dust pollution, microwave drying is efficient and economic environmental drying mode.
Company Informaiton:
Shanghai Nasan Group Co., Ltd. located in the China's economic center Shanghai. Nasan has more than 11 years manufacturing experience of microwave drying machine. Nasan has excellent quality management team, professional research team and skilled production workers ensure consistent product quality.
At present Nasan product export to more than 30 countries and regions, such as United States, Germany, Switzerland, Japan, Singapore, Malaysia, Thailand, Burma, Vietnam, India, Russia, Kazakhstan, Ukraine, Turkey, Cyprus, Bahrain, United Arab Emirates, Saudi Arabia, Kuwait, Egypt, South Africa, Nigeria, Angola, Rwanda, Tanzania, Peru, Australia, New Zealand and so on, product was well received by these client.
Nasan will insist on company spirit of "pioneering spirit, never satisfied," business philosophy of "socially responsible", company culture of "honesty, pragmatism, innovation, development ", provide better quality products and services for every client around the world.
Our Services:
1. Delivery a set wearing part along with machine for free
2. Warrant is 2 years, send spare parts by express delivery for free
3. Layout design and install design for free
4. Client be trained in our factory for free
5. Engineer go to client place install machine for charge
6. Feedback with 24 hours
Please send an inquiry to us on the bottom , we will feedback within 12hours.
