Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Compound Semiconductor |
| Application: |
General Industry |
| Brand: |
Jpec |
Product Description
Product Information

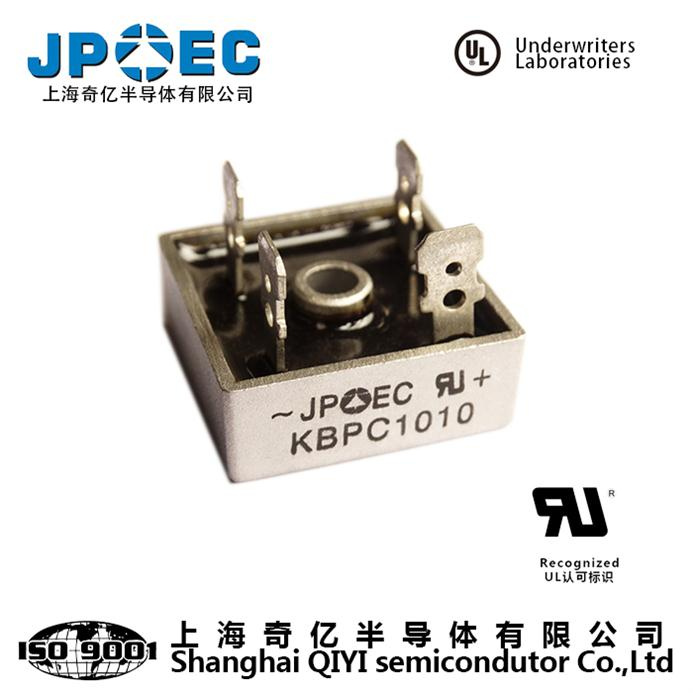

Name: Bridge Rectifier ;Rectifier Diode
KBPC 1010 10A1000V
Brand: Shanghai QIYI Semiconductors JPEC
10 Amperes Bridge Rectifer Diode
| TYPE NUMBER |
| KBPC10005 | KBPC1001 | KBPC1002 | KBPC1004 | KBPC1006 | KBPC1008 | KBPC1010 | UNITS |
| Maximum Recurent peak Reverse Voltage |
| 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
| Maximum Average Forward rectified Current(9.5mm)Lead Length at Ta=50ºC |
| 10 | A |
|
| Peak Forward Surge Current, 8.3ms Single half Sine-wave superimposed On rated load |
| 400 | A |
|
| Maximum Forward Voltage Drop Per Bridge Element at 25A D. C |
| 1.1 | V |
|
| Maximum DC Reverse Current Ta=25ºC |
| 10 | UA |
|
| StorageTemperatureRange |
| -65~90 | ºC |
| Operating TemperatureRange |
| -65~90 | ºC |
Our Main manufactures and provides: the rectifier tube, thyristor, diode, triode and its module products.Through introducing new advanced technique and key equipment from the United State in 2002, we have greatly improved the product's quality and our production efficiency. In recent years we have passed UL certification and ISO9001-2000 quality system certification to provide better service and products to our customers all over the world. We will always implement the the quality policy "meticulous, keep improving", to ensure that all the products can meet customers' satisfaction ".
We also provide rectifer diodes, thryristor modules, diodes, triodes, SSR, etc
If you have any questions, please dont hesitate to contact us. You are always welcomed. ~
Shanghai Qiyi Semiconductor Co., Ltd.
Mainly provides:
A) Rectifiers: KBPC QL SQL, etc
B) Thyristor: KP KK KS KG ZP ZK series, etc
C) SSR: JGC, JGX series, etc
