Product Specifications
| Prod Model: |
SD160 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Machine Weight: |
17t |
| Dimension(Long * Breadth * High): |
5410*3388*3032mm |
| Engine: |
Cat 6121 |
| Dozing Capacity: |
4.5m3 |
| Ripper: |
3 Shank Riper |
| Walking Mode: |
Crawler |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Bulldozer |
Product Description

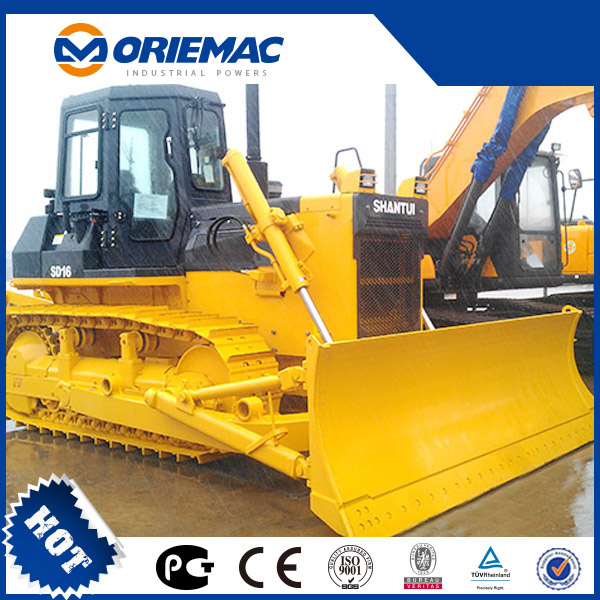

160HP China Top Brand Shantui Bulldozer SD16 Hot Sale
1. Engine: Shangchai C6121/Steyr WD615T1-3A
2. Rated power: 120 kw/160 HP
3. Operating weight: 17 t
| Categories: | Bulldozer |
| Model | SD16 |
| name | SD16 bulldozer |
| clicks: | 418 |
| Engine | Shangchai C6121ZG70B/Steyr WD10G175E15 |
| Weight | 17t |
| Specification Blade Type | Straight-tilt | Angle | U-type |
| Min.ground clearance(mm) | 400 | 400 | 400 |
| Ground pressure(MPa) | 0.067 | 0.067 | 0.067 |
| Min.turning radius(m) | 4.7 | 4.5 | 4.9 |
| Gradeability(°) | 30 | 30 | 30 |
| Track gauge(mm) | 1880 | 1880 | 1880 |
| Dozing capacity(m3) | 4.5 | 4.4 | 5.0 |
| Efficiency(Theoretical value in 40m)(m3 /h) | 225 | 225 | 250 |
| Blade width(mm) | 3388 | 3970 | 3556 |
| Blade height(mm) | 1149 | 1090 | 1120 |
| Max.drop below ground (mm) | 540 | 540 | 530 |
| Max.tilt adjustment(mm) | 400 | - | 400 |
ENGINE
Model^^^^^^^^^^^^^^^^^....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower^^^^^^^^^^^^..120kW
Rated revolution^^^^^^^^^^^^.......1850r/min
Cylinder number-bore×stroke^^^^^^.......6-126×130mm
Piston displacement^^^^^^^^^^^...9.726L
Min.fuel consumption^^^^^^^^^^......214g/KW.h
Max. torque^^^^^^^^^^^^^^^....764N.m
TRAVEL SPEED
| Gear | 1st | 2nd | 3rd |
| Foward(km/h) | 0-3.29 | 0-5.28 | 0-9.63 |
| Reverse(km/h) | 0-4.28 | 0-7.59 | 0-12.53 |
