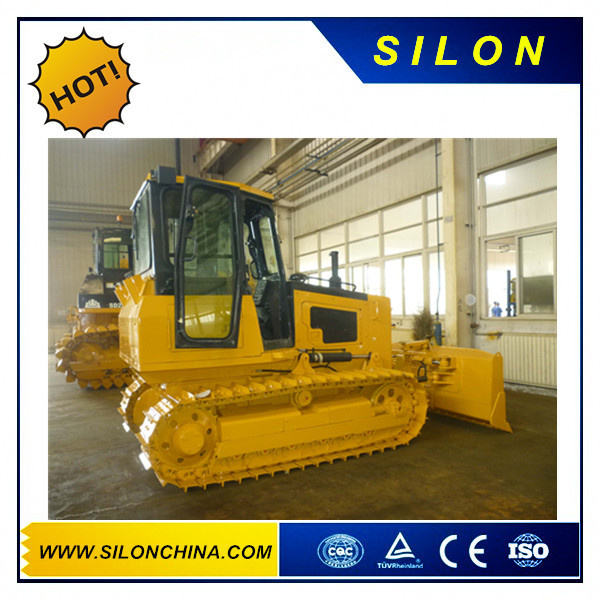

Shantui 80 HP Small Crawler Bulldozer SD08-3 with Weichai Engine
Product Specifications
| Prod Model: |
SD08-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Weight(Not Including Ripper): |
76500kg |
| Bulldozer Blade (W*;H): |
2553*890mm |
| Engine Flywheel Power: |
63kw |
| Overall Dimensions(Lxwxh): |
3973 *2553 *2785mm |
| Engine Model: |
Weichai Wp4g90e235 |
| Max. Digging Depth (Mm): |
383mm |
| Dozing Capacity: |
2.02 M3 |
| Number Of Carriers (Each Side): |
1 |
| Number Of Track Rollers (Each Side): |
6 |
| Number Of Track Shoes (Each Side): |
41 |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Crawler |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
Features
Shantui 80 HP Small Crawler Bulldozer SD08-3 with Weichai
1. Weichai WP4G90E235 engine, 59 KW
2. Operating Weight: 7.65 Tons
Features:
1. The turbo charged engine features strong power, high efficiency and energy saving capabilities, and has a large torque reserve coefficient;
2. The extended track ensures low ground pressure, high reliability and strong traction;
3. The planetary power shift transmission features a compact structure, smooth gear shifting, high efficiency and a long service life;
4. Forward and reverse motion, gear shifting and steering are all controlled by a single PPC lever;
5. Integrated dashboard design makes observation of machine processes more logical;
6. The hexahedron cab has a beautiful appearance, wide visibility and is very comfortable;
7. Equipped with a straight angle blade, which is used for excavating, transporting, and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.
Technical Parameters
| ITEM | UNIT | SD08-3 |
| L×W×H (Ripper not included) | mm | 3973×2553×2785 |
| Operating weight (Ripper not included) | t | 7.65 |
| Engine | - | Weichai WP4G90E235 |
| Rated power | kW/rpm | 63/2350 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade |
| Blade width | mm | 2553×890 |
| Dozing capacity | m3 | 2.02 |
| Ma× drop below ground of blade | mm | 383 |
| Lift height of blade | mm | 850 |
| Ripper type | - | - |
| Ripping depth of ripper | mm | - |
| Lifting height of ripper | mm | - |
| Number of carriers (each side) | - | 1 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1450 |
| Ground length and ground pressure | mm/MPa | 2185-0.038 |
| Pitch | mm | 154.25 |
| Forward speed | km/h | 0-2.53 |
| 0-4.55 |
| 0-7.57 |
| Reverse speed | km/h | 0-2.76 |
| 0-4.95 |
