Product Specifications
| Prod Model: |
SD16F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Weight: |
23800kg |
| Engine: |
Cummins Kta19-C280s10 |
| Flywheel Power: |
169/230 |
| Walking Mode: |
Crawler |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
| Load And Unload Method: |
Front Discharge |
| Type: |
Bulldozer |
Product Description

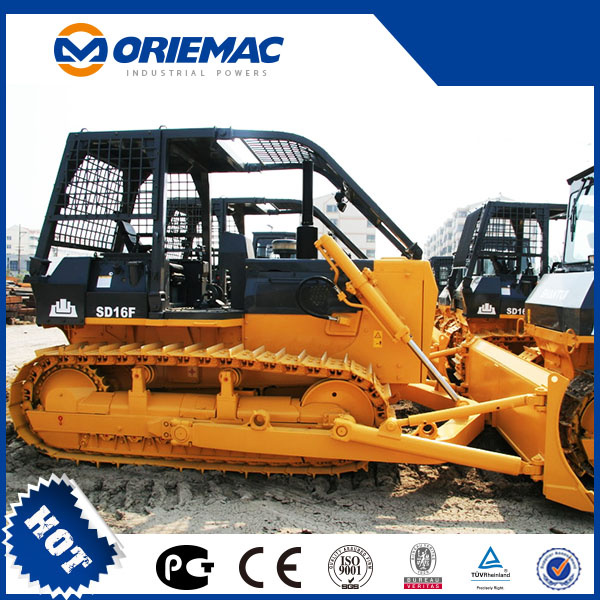

Shantui crawler bulldozer SD16F forest bulldozer 160HP
Rated Power: 120kW@1850rpm
Engine Model: Shangchai SC11CB184G2B1/Weichai WD10G178E25
Operating Weight: 17.5 Tons
The SD16F forest bulldozer has been developed for operation in forests. The SD16F is equipped with a hydraulic drive system with hydraulic control technology, a front-extending ROPS canopy, and an advanced structure, providing reliable performance and convenient and flexible operation, and easily adapting it to operations in the forest.
|
ITEM |
UNIT |
SD16F |
|
L×W×H (Ripper not included) |
mm |
5345×3388×3032 |
|
Operating weight (Ripper not included) |
t |
17.5 |
|
Engine |
- |
Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
|
Rated power |
kW/rpm |
120/1850 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Straight tilt blade U blade Angle blade |
|
Blade width |
mm |
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
|
Dozing capacity |
m 3 |
Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
|
Ma× drop below ground of blade |
mm |
540 |
|
Lift height of blade |
mm |
1095 |
|
Ripper type |
- |
Three-shank ripper |
|
Ripping depth of ripper |
mm |
572 |
|
Lifting height of ripper |
mm |
592 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
7 |
|
Number of track shoes (each side) |
- |
39 |
|
Width of track shoe |
mm |
560 |
|
Track gauge |
mm |
1880 |
|
Ground length and ground pressure |
mm/MPa |
2635-0.062 |
|
Pitch |
mm |
203.2 |
|
Forward speed |
km/h |
0–3.29 |
|
0–5.82 |
|
0–9.63 |
|
Reverse speed |
km/h |
0–4.28 |
|
0–7.59 |
