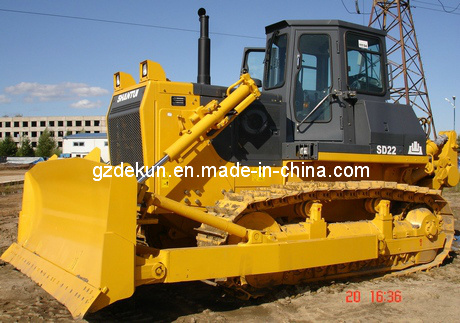

Shantui SD22 Crawler Bulldozer with AC /CE

Name: Shantui SD22 Crawler Bulldozer with AC /CE
Brand: china-manufacturer-directory.com
SKU: 722204595
Availability: InStock
Rating: 4.9 (131 reviews)

Supplier:	Guangzhou Dekun Construction Machinery Co., Ltd.
Price:	US $ 140000-160000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SD22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension(Long * Breadth * High):	5750X3725X3395mm
Machine Weight:	23.4ton
Rated Powe/Speed:	162/1800 Kw/Rpm
Track Center Distance:	2000mm
Ground Contact Land:	2730mm
Track Width:	560mm
Engine Model:	Wd12g240e26/Ntaa855-C280s20
Blade Digging Depth:	540mm
Blade Capacity:	6.4 Cbm
Ripper Type:	Single/Three Teeth Ripper
Walking Mode:	Crawler
Condition:	New
Certification:	ISO9001: 2000

Product Description

Engine: NTAA855-C280S20
CE approved
Can adopt with diferent type of blade
Operating weight: 23.4Ton.

Two type of ripper for your select according to your requirements (Tridentate ripper OR single ripper)

Tridentate ripper: Ripper digging depth: 666mm
Ripper lifging height: 555mm

Single ripper: Ripper digging depth: 695mm
Ripper lifting height: 515mm

SD22 bulldozer is powerful machine for pushing earth or rocks, used in road building, farming, construction, and wrecking; It consists of a heavy, broad steel blade or plate mounted on the front of a tractor. Sometimes it uses a four-wheel-drive tractor, but usually a track or crawler type, mounted on continuous metal treads, is employed.

Should you be interested in this bulldozer, just contact me at any time to talk detail.

Main Specification		SD22
Overall dimension	mm	575037253395
Operating Weight	t	23.4(without ripper)
Engine Model		WD12G240E26/NTAA855-C280S20
Rated Power/Speed	kw/rpm	162/1800
Track Center Distance	mm	2000
Ground Contact Land	mm	2730
Land Pressure	Mpa	0.077
Forward speed	kw/h	F1: 0~3.6 F2: 0~6.5 F3: 0~11.2


Rear speed	kw/h	R1: 0~4.3 R2: 0~7.7 R3: 0~13.2


Blade Digging Depth	mm	540
Ripper digging depth	mm	(T)666/ (S)695
Blade Lifting Height	mm	1210
Ripper lifting height	mm	(T)555/ (S)515
Grade Ability	°	30
Track Width	mm	560
Blade capacity	m³	Semi- U blade:7.0 Stright blade:6.4 Angle balde:4.7 Standard U balde:7.5
Blade Type		stright, Semi-U, angle, U
Blade Length*Width	mm	(S)37251315, (Angle)43651055 U38001343, (Semi-U), 37251374
Ripper type	Single/Three teeth ripper
