Price: | US $ 380-405/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union |
No. | Channel | DMX value | Description |
1 | Pan | 0-255 | |
2 | Pan fine | 0-255 | |
3 | Tilt | 0-255 | |
4 | Tilt fine | 0-255 | |
5 | Pan/Tilt speed | 0-255 | Speed adjustment |
6 | Gobo |
0-3 4-7 8-11 12-15 16-19 20-23 24-27 28-31 32-35 36-39 40-43 44-47 48-51 52-55 56-59 60-63 64-67 68-71 72-113 114-118 119-160 161-165 166-171 172-177 178-183 184-189 190-295 296-201 202-207 208-213 214-219 220-225 226-231 232-237 238-243 244-249 250-255 |
Open Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Gobo7 Gobo8 Gobo9 Gobo10 Gobo11 Gobo12 Gobo13 Gobo14 Gobo15 Gobo16 Gobo17 Gobo rotation, forward Stop Gobo rotation, backward Stop Gobo2 Shake(slow to quick) Gobo3 Shake(slow to quick) Gobo4 Shake(slow to quick) Gobo5 Shake(slow to quick) Gobo6 Shake(slow to quick) Gobo7 Shake(slow to quick) Gobo8 Shake(slow to quick) Gobo9 Shake(slow to quick) Gobo10 Shake(slow to quick) Gobo11 Shake(slow to quick) Gobo12 Shake(slow to quick) Gobo13 Shake(slow to quick) Gobo14 Shake(slow to quick) Gobo15 Shake(slow to quick) Gobo16 Shake(slow to quick) |
7 | Color |
0-5 6-11 12-17 18-23 24-29 30-35 36-41 42-47 48-53 54-59 60-65 66-71 72-77 78-83 84-89 90-95 96-101 102-107 108-113 114-119 120-125 126-131 132-137 138-143 144-149 150-155 156-161 162-167 168-173 174-179 180-182 183-255 |
white white / orange orange orange / light blue light blue light blue/ light green light green light green / green green green / Rose Rose Rose / Pink Pink Pink / Yellow Yellow Yellow / Light red Light red Light red / blue Blue Blue / light orange Light orange Light orange / warm white Warm white Warm white / light yellow Light yellow Light yellow / dark blue Dark blue Dark blue / white Color 29 Color 30 Stop Color rainbow effect from slow to fast |
8 | Prism |
0-127 128-255 |
No prism Prism |
9 | Prism rotation |
0-127 128-190 191-192 193-255 |
0°-540° Prism rotation, forward Stop Prism rotation, backward |
10 | Frost | 0-255 | Focus |
11 | Focus | 0-255 | Focus |
12 | Flash |
0-3 4-250 251-255 |
off Strobe from slow to fast on |
13 | Dimmer | 0-255 | Dark à bright |
14 | Rest |
0-25 26-76 77-127 128-255 |
No function Reset Pan/ Tilt reset Completely reset |
15 | Lamp |
0-25 26-100 101-255 |
No function Lamp On Lamp Off |
16 | No function | 0-255 | |
17 | Gobo speed | 0-255 | |
18 | Color speed | 0-255 | |
19 | Focus speed | 0-255 | |
20 | Auto | 0-255 |

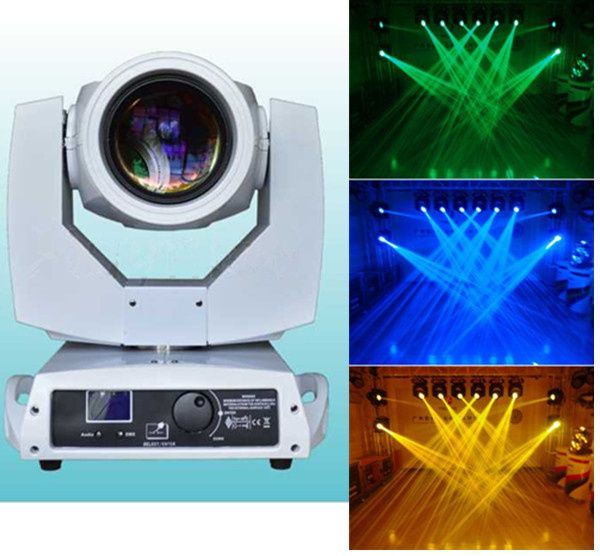

Prod Model: | YC-8200 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rotating Gobos: | 1 Gobos Wheel with 16 Fixed Gobos+Open |
Colors: | 1 Color Wheel with 14 Fixed Colors+Open |
Prism: | Rotating 8-Facet Prism |
Channel: | 20CH |
IP Rating: | IP20 |
Strobe: | Electronic Strobe |
Certification: | RoHS |
Voltage: | 220V |
Control Mode: | DMX512, Automatic and Master/Slave Mode |
Light Source: | Philips UHP Lamp |
Control Channel: | 20CH |
