Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Quality: Wintech has significant experience in manufacturing and has a large number of skilled talents.
1) Plate type independent research and development ability;
2) Plate molding mold capacity for independent design and production;
3)Large simulation computing power;
4) Professional thermal experiment and calculation software;
5) Independent intellectual property patents.
Product:

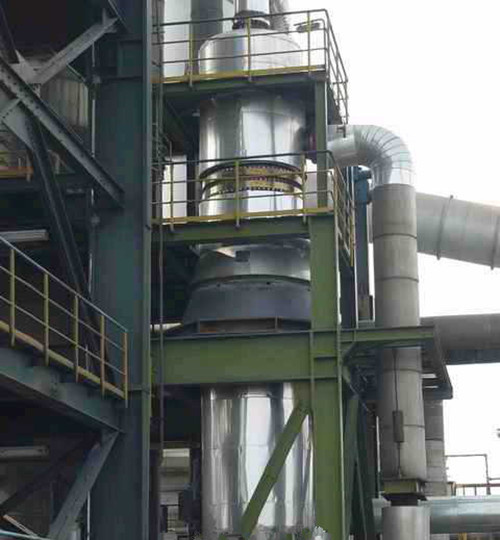

Large plate and shell heat exchanger is mainly used in catalytic reforming, hydrogenation and aromatics unit. Can also be applied in the atmospheric and vacuum, ketone benzene, catalysis and gas separation, methanol and air separation, oil refining, chemical, fertilizer and other devices and oil refining, chemical industry, fertilizer industry, electric power, metallurgy, environmental protection and other industries of various liquids, gases and steam heating, cooling, evaporation and condensation, heat recovery, etc. The use requirements of the device is particularly suitable for large-scale. Strict on pressure drop and heat transfer area for very big application situations, the effect is more outstanding.
Compared with the tube and shell heat exchanger, plate heat exchanger of the cold end and the hot end temperature difference is small, heat recovery, thus saving operation cost of the plant. In the case of the same heat transfer task, plate and shell heat exchanger and the tube and shell heat exchanger compared with small volume, light weight, can greatly save the user's equipment installation space and installation costs.
Technical parameters:
Design temperature | ≤550ºC |
Design pressure | 6.0MPa |
The assembly area | ≤12000m2 |
The thickness of the plate | 0.7~1.2 |
The minimum temperature difference | 1 ºC |
Plate width | ≤2m |
The depth of the corrugated | 3 ~ 5mm |
Plate material | 304,316L,321, 254SMO,2205,2507,etc |
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
---|---|
Lead Time: | It Depends on The Scale of Order. Generally, Goods |
Shipping: | Qingdao Port and Tianjin Port |
Plate Material: | 304,316L,321, 254smo,2205,2507,etc |
Certificates: | ISO9001 |
Principle: | Recuperative Heat Exchanger |
Structure Material: | Metal Material |
Application: | Heater |
Heat Transfer Surface: | Plate Heat Exchanger |
Core: | Plate |
Style: | Shell and Plate |
Recuperative Heat Exchanger Type: | Shell and Plate |
