Product Specifications
| Prod Model: |
THT 9401GYY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tank Volume: |
＞30000L |
| Storage: |
Oil |
Product Description
THT9401GYY

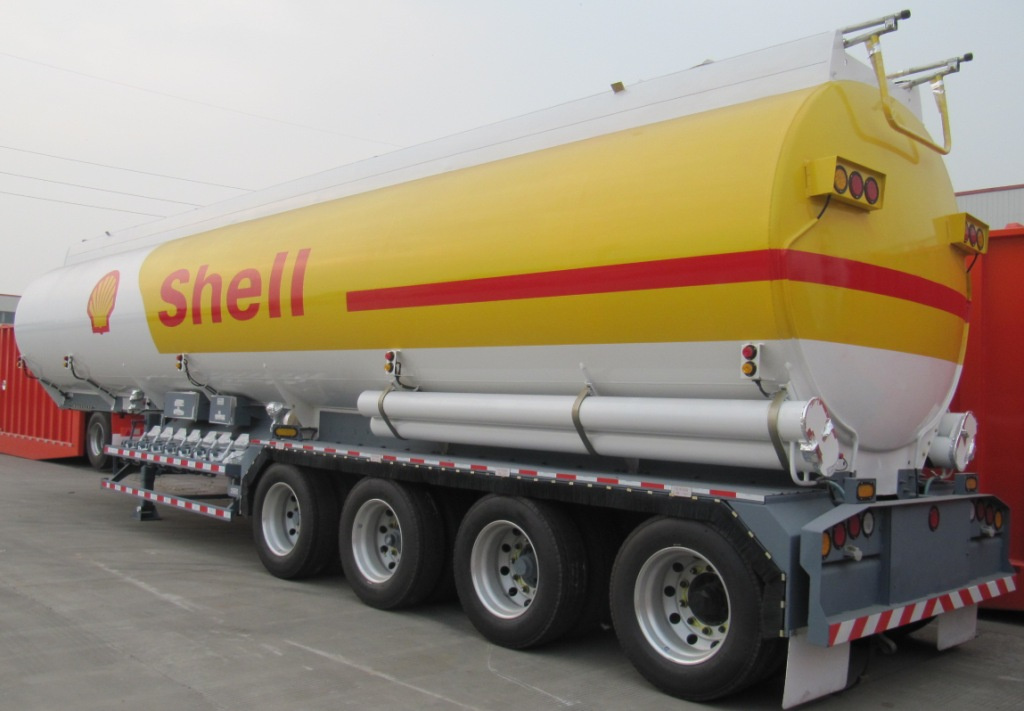

U SPECIFICATION FOR MILD STEEL PETROL TANKER
A. Vehicle technique parameter
1. Type
. THT9401GYY
2. Tare Weight
12300kg.
3. Pay Load
30500kg.
4. G. V. W.
42800kg.
5. Dimensions
Mm
12990(L)x2485(W)x3900(H).
6. Axle Spacing
Mm
7200+1350+1350.
7. Axle
Quantity
3.
B. RUNNING GEAR
1. Skid Plate
Heavyduty 12m high tensile steel skid plate bolts directly to the double web reinforced
Under frame at front completed with 3.5" SAE standard kingpin.
12m, . 3.5" SAE
2. Landing Legs
Jost A400
3. Axles
BPW 13 Ton axle ECO, drum brake and 10 stud, 2040mm track...
4. Hubometer
A hubometer shall be fitted to the centre axle (triaxle) or lead axle (bogie) on the
Near side of the trailer.
3; 2.
Nil.
5. Anti loose
Indicators
Wheel nuts to be fitted with anti loose indicators (wheel nut torque).
6. Axle Lift
No lifting axle.
1st axle lifting with automatic lift control.
, . 7. Suspension
BPW Air suspension.
THT series Under mount triaxle suspension with equalizer; 4leaf spring.
8. Suspension
Frame
High tensile steel fabricated for heavy duty usage.
9. Brake
System
Two line airbrake systems comprising of emergency relay valve, brake chamber, spring
Brake chamber, air reservoir and contact type couplings.
Type 30/30 spring chamber on two axles.
2 30/30.
1set of WABCO 4S/2M ABS.
Without ABS.
10. Slack Adjuster Manual slack adjuster. Automatic slack adjuster.
. 11. Tyres
7pcs of Goodyear Radial Tubeless tyres 425/65R22.5 anti static tyres(including one
Spare tires). ( supply by customer)
7 425/65R22.5, 1. ()
12. Wheel Rim
7pcs of local steel Wheel Rim 13.00x22.5 PCD 335mm, 10studs(including one spare
Wheel rim).
7 13.00x22.5, pcd 335mm,
13. Lights &
Wiring
Harness: Oil and vapour proof cable.
24V, 1Pcs 15pole plug placed at front. All Lamps are LED, Torch Brand.
Front: Clearance Lamp 4Pcs for semi trailer.
Side:
Mark lamp 4Pcs/side.
Turning lamp 1Pcs/side.
Rear Bump:
ZJV9409GRYTHB Page 3 of 11
Reverse lamp 1Pcs.
Foglight 1Pcs.
Turning lamp RL 2Pcs.
Brake lamp RL 2Pcs.
Register plate light 1Pcs.
Noise reverse signal 1Pcs.
Rear top:
Clearance Lamp 2Pcs
Brake lamp 1Pcs.
24V, 1 15, , LED.
C. TANK BARREL
1. Material
Mild Steel Q345D.
Q345D.
Mild Steel Q345A.
Q345A.
A) Top
6.0mm nominal.
6.0mm.
B) Sides
6.0mm nominal.
6.0mm.
C) Bottom
6.0mm nominal.
6.0mm.
2. Shell Finish
Tank barrel outer surface cleaned out & painted. Painting colour according to the
35kpa.
Follow Chinese Standard GB18564.12006.
Hydrostatic test to 5 psi (35 Kpa) on each compartment.
ZJV9409GRYTHB Page 4 of 11
GB18564.12006.
35kpa.
5. Capacity
48000Litres including max 10% Ullage. The minimum ullage required is 3% litres per
Compartment.
48000L, 3%, 10%.
6.
Compartments
3compartments (18000L, 14000L, 14000L) Front to rear.
3, (18000L, 14000L, 14000L).
7. Bulkhead &
Dishend
/
All single heads dished and flanged.
All internal bulkheads have exclusive design sealing ring.
Degassing plug 3/8" on top & bottom of each bulkhead.
End Plate and Bulkhead plate are allowed to be jointed plate by two plates.
.
. System
1) when the main bar is not close properly, the brake is lock
2) when the vapour recovery adaptor is actuated, the brake is lock.
3) Emergency cut off switch will close the footvalve & air vent to stop the
Operation ( loading or unloading)
Yangzhou CIMC Tonghua Special Vehicles Co., Ltd. is an important backbone subsidiary company of CIMC Vehicles (Group) Co., Ltd. (CIMC Vehicles for short) in east China. The company was established in August, 1992 and it joined in CIMC Vehicles in March, 2003. It is State Class National Torch Program High Technology Enterprise and complete chassis exporting base enterprise. It has a total investment capital of 210 millions RMB and a registered capital of 51millions RMB.
It is located in economic development zone in Yangzhou covering an area of 590, 000 m2 including 160, 000 m2 manufacturing workshop. It has more than 3000 employees at present.
As one of the National Torch Program high-technology enterprise, our company has advanced equipments and inspection instruments. Most of them are imported. The company passed GB/T9001-2000. It has American Bureau of Shipping Certification, Germany TUV Certification. And it is the first company of passing GJB9001A-2001 among the competitors in China. Jiangsu Special Vehicles Technology Research Center of our company, consisting of national mechanical specialists, leaders of Jiangsu 333 over-century technology research group, advanced engineers with professor title and other technician, is in charge of development and research of new products and national scientific research on special vehicles. Among the 9 series of products, which include more than 200 types of bulletined special vehicle models, 13 kinds of products are enlisted as Jiangsu New Hi-tech Products, 9 kinds are enlisted as State Class Key New Product. 75 patents are registered and protected. 4are enlisted as National Torch Program and 1 as Provincial Torch Program.
Our company now has producing lines of normal container semi-trailer, mild steel tank, stainless steel tank, aluminum tank, American chassis, special vehicle and cement mixer. The main products are tank container, van, car-carrier, container chassis, platform, low-bed, dumper and other special hi-tech and valuable semi-trailers under Tonghua Brand. And the tank products are in leading status in China.
Now our company has achieved a producing capacity of more than 40, 000 units of vehicles per year, and producing capacity for tank is about 4, 000 units. In 2010, the company has produced and sold about 22, 000 units and accomplished a total sales amount of 2.4 billions RMB.
The company has established over 10 offices and sales spots in main cities and areas in China. It has completed primarily the countrywide sales network. Meanwhile, with the support of thirty 4S shops of CIMC Vehicles, our company is able to offer more perfect service. Our company is authorized the right to import and export directly. Our products are widely exported in 16 countries in Southeast Asia, America, Australia, Africa and Middle East.
