Product Specifications
| Prod Model: |
ZY8310 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Luminous Flux: |
50000 Lm |
| Working Lifetime(Hour): |
28500 |
| Cable Diameter: |
8mm-10mm |
| Spacing Height Ratio: |
2.2 |
| Anti Corrosion Grade: |
Wf2 |
| Warranty: |
3 Years |
| Size: |
420*445mm |
| N.W.: |
7.2kg |
| IP Rating: |
IP65 |
| Material: |
Aluminum |
| Certification: |
ISO9001 |
| Type: |
Spotlight |
| Light Source: |
Metal Halide |
Product Description
Specifications
1) 250W 400W Metal Halide Spot Light
2) OSRAM MH or HPS lamp
3) 220VAC, IP65, anti corrosion
4) 36000 or 50000 hrs life time

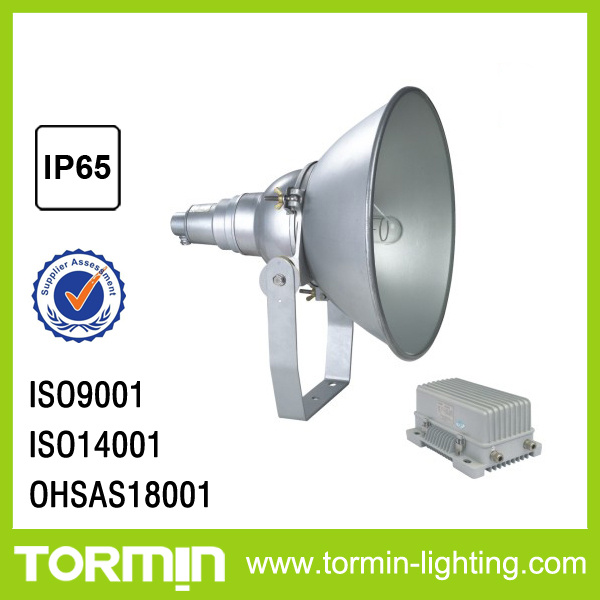

ZY8310 250W 400W Metal Halide Spot Light
CERTIFICATION & APPROVALS:
Ingress Protection: IP65
Anti Corrosion Grade: WF2
Application:
This product is ideal to use as wide area floodlighting in all kinds of plant ,workshop, construction site, electric power station, rail way station , and some other indoor and outdoor site.
Characteristics of Performance :
· Metal Halide or high pressure sodium lamp as light source ensures 80% energy saving comparing with incandescent lamp of the same watts.
· Average light source lifetime is 12,000 hours. Free maintenance.
· Ingenious ventilating device can balance the interior and exterior pressure difference.It also eliminate the condensation phenomena.
· The shock proof structure can avoids the break of bracket as well as bulb falling off from the lamp when there is intense shock.
· Housing material: Light weight aluminum alloy with latest spray coating. Anti rust, corrosion resistant. Ideal for any extreme condition.
· It is well sealed to IP65
· Optional shock-absorber is available according to customers' requirement.It ensure the usage in all kinds of vehicle and any other device with intense shock.
Major Technical Specification:
Power Supply |
AC 220V / 50Hz |
Ingress Protection |
IP65 |
Anticorrosion Grade |
WF2 |
Insulation Grade |
I |
Spacing Height Ratio |
2.2 |
Cable Diameter |
Ø10 - Ø14mm |
Dimension |
Lamp Ø426 x 445mm |
Ballast Box 260 x 220 x 160mm |
Weight |
Lamp 7.2kg |
Ballast Box 7kg |
Light Source:
Model No. |
Light Source |
Wattage |
Luminous Flux |
Average service life
(h) |
ZY8310-J250 |
MH(OSRAM) |
250W |
25000 lm |
12000 |
ZY8310-J400 |
MH(OSRAM) |
400W |
36000 lm |
12000 |
ZY8310-N250 |
HPS(OSRAM) |
250W |
27500 lm |
30000 |
ZY8310-N400 |
HPS(OSRAM) |
400W |
50000 lm |
30000 |
