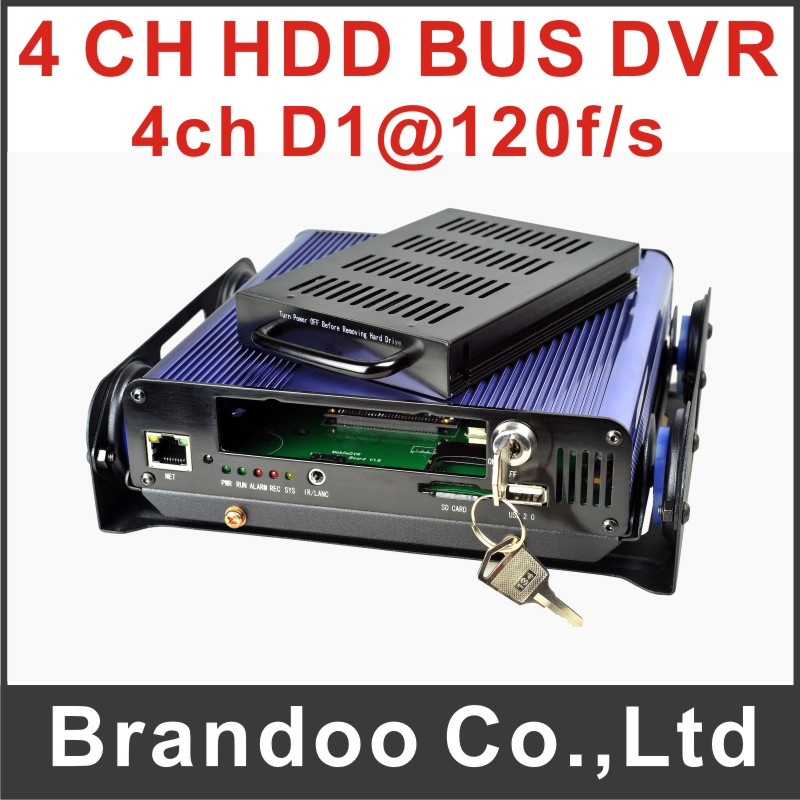

Shockproof HDD Type 4CH D1 Mobile DVR, Support 3G, WiFi, GPS, Free Cms Client and Server Software Provide by Brandoo
| Price: |
US $ 280/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
This is a professional shockproof mobile DVR, it suit for long time recording requirement. The patent shockproof housing helps to protect the HDD memory won't lost files when driving. 4ch D1 video resolution brings better view of bus running. We offer customized language and start screen.Features:> Edit serial number for different cars
> Advanced H.264 compression
> 4CH D1 Higher resolution for each channel, NTSC: 704 x 480 / PAL: 704 x 576.
> Built-in SATA 2.5" Hard Drive up to 500GB memory and 128GB SD card .
> Support 3G,WIFI,and GPS functions
> Working temperature: approved range: -40 ~ 70DVR detail instruction:

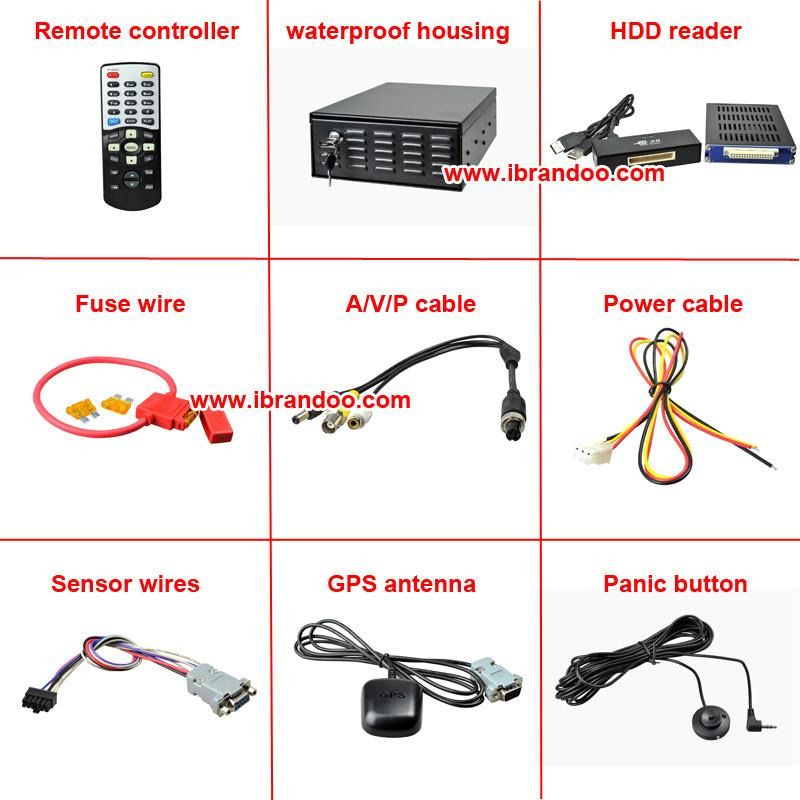

Accessories
|
Item |
Parameter |
Description |
|
System |
Language |
Chinse Simplified/Chinese Traditional/
English/Japanese/French/Russian |
|
Interface |
Graphical User Interface |
|
Security |
Administor and user password protected |
|
Video |
Video Input |
1/2/4channel video input, 1.0V,p-p,75Ω,BNC |
|
Video Output |
1 channel vidoe output, 1.0V,p-p,75Ω,BNC |
|
Display |
1/2/4channel display |
|
Video Standard |
PAL (25fps) NTSC (30fps) |
|
Audio |
Audio Input |
1/2/4channel audio input, 20KΩ,RCA |
|
Audio Output |
1 channel audio output, 500Ω,RCA |
|
Output level |
1V ~2V, p-p |
|
Recording mode |
Audio and video simultaneously recording |
|
Compression |
G711 |
Storage
|
Video Compression |
H.264 High Profile |
|
Resolution |
D1 at 100fps |
|
Video bitrate |
D1: 200Kbps ~ 2Mbps,4 selectable quality |
|
Audio bitrate |
8KB/s(Compressed) |
|
Storage |
Hard drive,SD card,External USB device(memory stick or hard drive) |
|
Format |
AVI (audio and video output directly synchronization) |
|
Sensor |
Sensors |
1 speed sensor, 1 ignition sensor, 3 common use senseors |
|
Communication |
COM |
Two RS232 connector and one RS485 connector |
|
Network |
RJ45,10M/100M Lan port |
|
GPS |
Support external GPS module, geographic coordinates, speed can be written in code stream |
|
Software |
Player |
|
|
3 rd party player |
VLC media player,Storm player,WINAMP |
|
Firmware update |
Via SD card or USB disk |
|
Power |
Power input |
DC:+8V ~ +32V |
|
Power output |
[email protected];+5V@1A |
|
Power consumption |
Less than 5W ;less than 0.1W in standby mode |
|
Working temperature |
-10~ +60 |
|
Size |
180mm ( Length ) ×180mm ( width ) ×42mm ( Height ) |
| Prod Model: |
BD-303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compression: |
H.264 |
| Resolution: |
4CH D1(704X576) |
| HDD Memory: |
500GB |
| SD Memory: |
1PCS 128GB |
| Shockproof Bracket: |
Yes |
| Vibration And Temperature Testing: |
Yes |
| Remote Controller: |
Support |
| Extenal Panic Button: |
Support |
| Extra Built In 3G Module/WiFi Module: |
Support |
| Compression Format: |
H.264 |
| Interface: |
BNC |
Brandoo Co., Limited, was founded in 2007, we mainly focus on mobile DVR systems, and car safety solutions, and SD card type recorders in Shenzhen, China.
We have over 6 years experienced in design, manufacture, marketing and sales of mobile security products, especially for SD card recorders and 2CH car MMS alarm system, we are patent owner of them. Anyway, we still a young team, so, we are great-hearted and brave to face any problem and troubles.
We always study from our customers, because we want to establish a long term cooperation ship with you. We are not only business partner, we hope we are good friend also when you know us. We also hopes that we can go better and better together!
Why will you choose Brandoo
If you like our products, just tell our staff and you will get answers soon.
We are not always have a special products, or have a very good price. But we will face all of your questions and answer you actively, and try our best to help you solve all problems.
If you do not like our products, just let us know what products you are looking for, our staff will try best to help you find a supplier and let you know the contact information.
