Shoe Outsole Flexing Test Measuring Instrument
Product Specifications
| Prod Model: |
HS-5005HA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
125~150cpm |
| Structure: |
Portable |
| Driven Type: |
Electric |
| Control Type: |
CNC |
| Sampling: |
4PCS |
| Size: |
95*56*63cm |
| Counter: |
LCD,0~999,999 |
| Displacement Of Moveable Clamp: |
41.5±0.5mm |
| Flexing Angle: |
30°,35°,45°,50°,60°,90° |
| Type: |
Bending Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

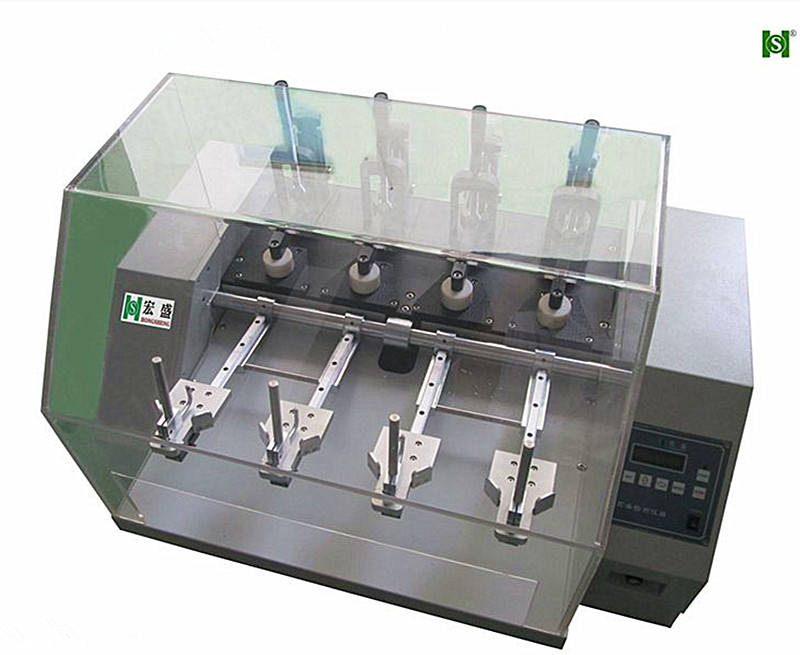

Shoe Outsole Flexing Tester
Application
This machine is used to test the use life after the sole flexed.The sole may break or craze after long-time roller bending.When using this machine,impale several holes at the place where has max bending rate,
then fix the two ends of the sole, with end fixed and the other movable.During test, make the circular shaft rise repeatedly,
after bended enough times, check its stretch stage through magnifying glass.
Standard: ISO-17707,SATRA TM161
Parameter
| Model | HS-5005HA |
| Displacement of moveable clamp | 41.5±0.5mm |
| Diameter of moveable flexing axle | 30 ± 1mm |
| Speed | 125~150cpm |
| Flexing Angle | 30°,35°,45°,50°,60°,90° |
| Sampling | 4 pcs |
| Counter | LCD,0~999,999 |
| Dimension(W×D×H) | 95×56×63 cm |
| Weight | 182kg |
| Power | 1∮AC 220V, 50/60 Hz, 3A (Specified by user) |
NOTE:
1.All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
2.If any specification or content of product has changed, please refer to our company's actual price list.
3.If you want to know more details about the product, please feel free to contact us.
After-sales service: We will provide professional guidance if you consult with us, and once we reach the trade, we would provide warranty in one year.
