Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Precision Higher, Service-Life Longer, Efficiency |
| Advantage: |
380V |
| Feature: |
Tidying up The Effciency High |
Product Description
Specifications

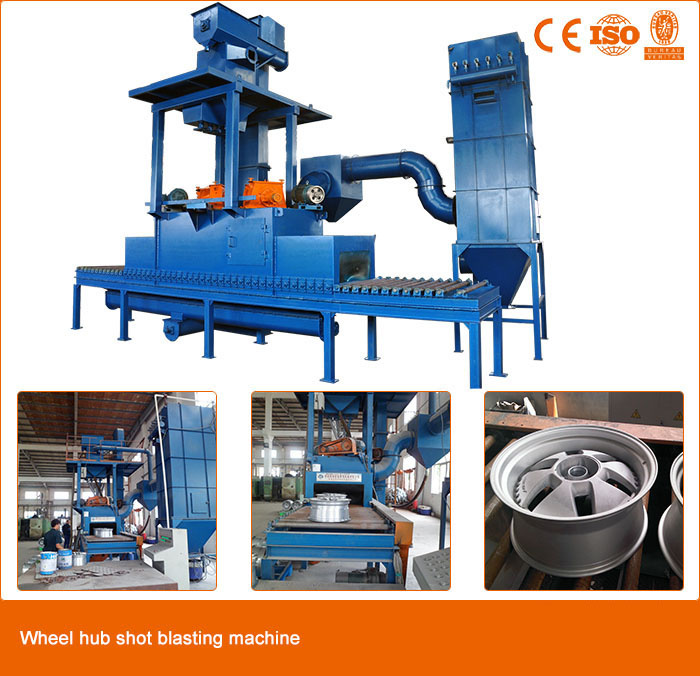

The Spiral Spring/Wheel Hub Shot Blasting Machine is specifically designed to treat crank axle,connecting rod, wheel hub, etc.
It is equiped with 2 V+S blast wheels which are the 4th generation cantilever centrifugal type with high shot blasting rate and speed.The work pieces will be rotating as passing the blasting chamber to be blasting or strengthened.
The separator adopts the technology of the BE separator from American Pangborn company.The shots circulatory system adopts the automatic detection device.
Technology parameter |
Item Type |
ZJ186 |
ZJ187 |
ZJ210 |
ZJ300 |
Size of cleaning workpiece (mm) |
φ335-φ540 |
φ335-φ500 |
φ88-φ150 |
φ88-φ300 |
Height of workpiece (mm) |
340 |
300 |
220-240 |
220-600 |
Transporting velocity (m/min) |
0.5-3 |
0.5-3 |
0.72-3.6 |
0.72-3.6 |
Shot blasting rate (kg/min) |
2*250 |
2*200 |
2*250 |
2*250 |
Pills charge weight first time(kg) |
4000 |
4000 |
4000 |
4000 |
Total blast volume (m3/h) |
5000 |
4500 |
8000 |
8000 |
Total power (KW) |
50.15 |
42.85 |
55 |
58 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
