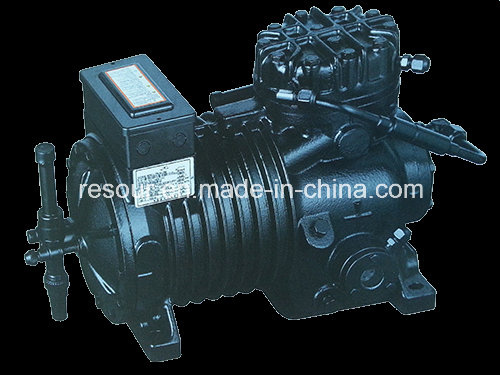

Shr31 Series Resour Compressor, Semi-Hermetic Reciprocating Compressor

Product Specifications

Prod Model:	SHR31 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Low Noise
Type:	Piston
Drive Mode:	Electric
Piston Type:	Semi-Closed
Configuration:	Stationary
Power Source:	AC Power
Material:	Carbon Steel
Lubrication Style:	Lubricated
Mute:	Not Mute
Application:	Back Pressure Type

Product Description

Technical Parameter


Refrigeration Capacity-R22

Model	Condensing TemperatureºC	Refrigerating Capacity / W
		Evaporating Temperature / ºC
		12.5	10	7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45	-50
SHR31 SHR31A	30						8430	6800	5350	4070	2730	1860
	40						7380	5820	4530	3370
	50						6300	5820	3840	2560
SHR41	30				14350	12330	10590	8430	6750	5180	3840	2500
	40				13250	10820	9200	7270	5700	4250
	50					9780	7910	6160	4760	3430
SHR51	30						13140	10760	8720	6860	5300	3840
	40						11750	9600	7620	6050
	50						10380	8370	6570	5030
SHR81	30				28140	22790	19300	15580	12320	9650	7270	5350
	40				25580	20930	16970	13480	10500	8250
	50				23260	19180	14650	11740	9070	6740
SHR101	30						26510	21620	17450	13276	10128	7592	5530	3794
	40						23730	19420	15350	11259	8536	6198	4349	2921
	50						21040	17090	13490	9292	6838	4809	3234	2168
SHR151	30						38960	31750	25350	19024	14393	10860	7921	5411
	40						34890	28260	22560	16041	12216	8891	6181	4118
	50						30700	24880	19650	13331	9892	7043	4871	3020
SHR151H	40				50320	42560	34190	27030	22560
	45				48430	40480	32460	25620
	50				46740	38600	30930	30930
4RS151L	30						52300	42700	34450	27350	21300	16400	12000	8310
	40						46850	38100	30500	24050	18500	13840	9800	6440
	50						41700	33700	26800	20900	15800	11500	7920	4970
4RS251H	30	99300	91200	83600	76500	63700	52600	42950	34650	27500	21400	16260
	40	89700	82300	75400	68900	57300	47150	38350	30800	24250	18670	13940
	50	80500	73800	67600	61700	51100	41950	33950	27050	21100	16030
4RS201L	30						60000	48950	39500	31400	24500	18940	13920	9670
	40						53700	43700	35100	27750	21500	16080	11430	7530
	50						47800	38750	30950	24200	18350	13390	9230	5790
4RS301H	30	114200	104800	96000	87800	73100	60400	49300	39800	31650	24700	18840
	40	103000	94500	86500	79100	65700	54000	44000	35350	27950	21650	16330
	50	92300	84600	77400	70700	58600	48100	39000	31200	24500	18810
6RS251L	30						78500	64100	51700	41050	31950	24600	18010	12460
	40						70300	57200	45850	36100	27750	20750	14710	9660
	50						62600	50600	40250	31350	23700	17240	11870	7440
6RS351H	30	149100	136900	125500	114800	95600	79000	64500	52000	41300	32200	24400
	40	134600	123500	113200	103500	86000	70800	57600	46200	36400	28050	20900
	50	120900	110800	101400	92700	76800	63000	51000	40600	31700	24050
6RS321L	30						90000	73500	59300	47100	36750	28400	20850	14480
	40						80600	65600	52700	41600	32200	24100	17130	11280
	50						71700	58200	46500	36300	27500	20050	13840	8670
6RS401H	30	171300	157200	144100	131800	109700	90600	74000	59700	47500	37100	28300
	40	154600	141800	129800	118600	98500	81100	66000	53000	41900	32450	24500
	50	138500	127000	116200	106100	88000	72200	58500	46800	36750	28200
6RS401L	30						106100	86800	70100	55900	43800	34000	25100	17600
	40						95300	77700	62600	49650	38700	29150	20900	13960
	50						85100	69200	55600	43600	33250	24450	17060	10890
6RS501H	30	201400	184800	169400	155000	129100	106700	87300	70600	56300	44150	33900
	40	181700	166700	152800	139800	116300	95900	78300	63100	50100	39050	29700
	50	163200	149700	137100	125300	104100	85700	69700	56000	44250	34250
2YL-2	30						9110	7430	5980	5150	4030	3100	2330	1700
	40						7970	6430	5110	4370	3370	2550	1870	1330
	50						6790	5400	4200	3520	2660	1960	1390
2YH-3	30	17280	15860	14530	13290	11060	9120	7440	5990	4740	3670	2770
	40	15400	14110	12910	11780	9750	7980	6450	5120	3970	3000	2160
	50	13490	12320	11230	10220	8380	6780	5390	4190	3160	2270
2YL-3	30						11350	9290	7500	6390	5040	3890	2940	2160
	40						9880	8010	6380	5400	4160	3140	2290	1600
	50						8370	6680	5230	4450	3340	2430	1680
2YH-4	30	21400	19650	18020	16490	13750	11360	9290	7510	5970	4660	3550
	40	18960	17380	15910	14540	12050	9890	8020	6390	5000	3800	2780
	50	16490	15080	13760	12520	10290	8350	6670	5210	3960	2880
4YL-3	30						12760	10380	8310	7070	5540	4260	3190	2300
	40						11220	9030	7140	6010	4650	3510	2560	1790
	50						9650	7670	5950	4960	3770	2770	1940
4YH-5	30	24400	22350	20500	18720	15540	12780	10390	8320	6550	5030	3740
	40	21800	19960	18250	16650	13750	11230	9040	7150	5530	4130	2950
	50	19180	17530	15980	14530	11920	9640	7660	5950	4480	3220
4YL-4	30						15780	12860	10350	8820	6930	5340	4010	2910
	40						13840	11180	8880	7550	5860	4440	3270	2300
	50						11860	9450	7360	6160	4690	3450	2420
4YH-6	30	29950	27500	25200	23050	19160	15800	12880	10360	8200	6350	4780
	40	26750	24500	22400	20450	16930	13860	11190	8890	6910	5210	3770
	50	23450	21450	19570	17810	14630	11850	9440	7350	5560	4020
4YL-5	30						19140	15600	12540	10300	8110	6260	4690	3380
	40						16830	13590	10800	8830	6880	5220	3820	2650
	50						14480	11550	9020	7280	5570	4120	2920
4YH-7	30	36400	33400	30600	28000	23250	19160	15610	12540	9910	7670	5760
	40	32500	29750	27200	24850	20550	16830	13600	10800	8400	6340	4590
	50	28500	26100	23800	21700	17830	14480	11560	9030	6850	4970
4YL-6	30						22950	18740	15120	12000	9340	7070
	40						20250	16410	13090	10230	7780	5700
	50						17510	14010	10990	8390	6160
4YH-9	30	43300	39750	36450	33350	27800	22950	18750	15120	12000	9330	7060
	40	38900	35650	32600	29800	24700	20250	16420	13100	10240	7790	5710
	50	34250	31350	28650	26100	21500	17500	14010	10990	8380	6150
4YL-8	30						30700	25200	20450	16370	12880	9830	7320	5220
	40						27100	22150	17840	14150	11000	8200	5920	4010
	50						23450	19050	15250	11880	9050	6640	4610	2910
4YH-12	30	57100	52400	48100	44000	36700	30350	24800	20050	15930	12410	9410
	40	50800	46650	42750	39100	32550	26800	21850	17550	13850	10680	7980
	50	44400	40700	37250	34050	28200	23150	18770	14980	11730	8950
4YL-10	30						35650	29250	23700	18940	14860	11330	8390	5920
	40						31450	25700	20700	16390	12710	9500	6850	4630
	50						27300	22150	17700	13800	10510	7700	5330	3350
4YH-15	30	68400	62800	57600	52700	43800	36150	29500	23750	18810	14590	11000
	40	60900	55900	51200	46800	38850	31950	26000	20800	16360	12550	9320
	50	53300	48900	44700	40800	3380	27700	22400	17860	13940	10610
4YL-12	30						41150	33750	27400	21900	17210	12990	9600	6760
	40						36650	29950	24150	19170	14910	11040	7960	5400
	50						32050	26050	20850	16150	12280	8980	6200	3880
4YH-20	30	79100	72600	66600	61000	50800	41900	34250	27600	21900	16980	12810
	40	70600	64800	59300	54200	45000	37000	30100	24100	18920	14500	10750
	50	61900	56700	51900	47400	39250	32150	26000	20650	16050	12130
4VL-15	30						52300	42700	34450	27350	21300	16400	12000	8310
	40						46850	38100	30500	24050	18500	13840	9800	6440
	50						41700	33700	26800	20900	15800	11500	7920	4970
4VH-25	30	99300	91200	83600	76500	63700	52600	42950	34650	27500	21400	16260
	40	89700	82300	75400	68900	57300	47150	38350	30800	24250	18670	13940
	50	80500	73800	67600	61700	51100	41950	33950	27050	21100	16030
4VL-20	30						60000	48950	39500	31400	24500	18940	13920	9670
	40						53700	43700	35100	27750	21500	16080	11430	7530
	50						47800	38750	30950	24200	18350	13390	9230	5790
4VH-30	30	114200	104800	96000	87800	73100	60400	49300	39800	31650	24700	18840
	40	103000	94500	86500	79100	65700	54000	44000	35350	27950	21650	16330
	50	92300	84600	77400	70700	58600	48100	39000	31200	24500	18810
6WL-25	30						78500	64100	51700	41050	31950	24600	18010	12460
	40						70300	57200	45850	36100	27750	20750	14710	9660
	50						62600	50600	40250	31350	23700	17240	11870	7440
6WH-35	30	149100	136900	125500	114800	95600	79000	64500	52000	41300	32200	24400
	40	134600	123500	113200	10350	86000	70800	57600	46200	36400	28050	20900
	50	120900	110800	101400	92700	76800	63000	51000	40600	31700	24050
6WL-30	30						90000	73500	59300	47100	36750	28400	20850	14480
	40						80600	65600	52700	41600	32200	24100	17130	11280
	50						71700	58200	46500	36300	27500	20050	13840	8670
6WH-40	30	171300	157200	144100	131800	109700	90600	74000	59700	47500	37100	28300
	40	154600	141800	129800	118600	98500	81100	66000	53000	41900	32450	24500
	50	138500	127000	116200	106100	88000	72200	58500	46800	36750	28200
6WL-40	30						106100	86800	70100	55900	43800	34000	25100	17600
	40						95300	77700	62600	49650	38700	29150	20900	13960
	50						85100	69200	55600	43600	33250	24450	17060	10890
6WH-50	30	201400	184800	169400	155000	129100	106700	87300	70600	56300	44150	33900
	40	181700	166700	152800	139800	116300	95900	78300	63100	50100	39050	29700
	50	163200	149700	137100	125300	104100	85700	69700	56000	44250	34250
6WDL-20	30									35500	29700	24500	19970	15960	12400	9180
	40									34750	29100	24050	19560	15560	11940	8590
	50									34050	28500	23600	19210	15220
6WDL-25	30									40800	34050	28150	22900	18320	14230	10540
	40									39900	33400	27600	22450	17860	13700	9860
	50									39100	32750	27100	22050	17470
6WDL-30	30									48800	40750	33700	27400	21900	17030	12610
	40									47750	39950	33000	26850	21350	16390	11790
	50									46750	39200	32450	26400	20900

Relating to 20ºC suction gas temperature,50Hz,without liquid subcooling.
VARICOOL system,additional cooling,position of suction valve changed.
Additional cooling or limited suction gas temperature
Additional cooling and CIC system.


Refrigeration Capacity-R404a/R507

Model	Condensing TemperatureºC	Refrigerating Capacity / W
		Evaporating Temperature / ºC
		7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45	-50	-55	-60	-65	-70
SHR51	30	24000	22200	18600	15400	12600	10200	8500	6700	5300	4000	3000
	40	20400	18900	15800	13100	10700	8700	7200	5700	4500	3400	2600
SHR81	30	31400	28700	24000	20000	16400	13400	10700	8500	6500	4900	3700
	40	26400	24100	20200	16800	13800	11300	9000	7100	5500	4200	3100
SHR101	30	44800	44200	35100	29000	23900	19400	15600	12300	9500	7200	5300
	40	38100	35600	29800	24600	20300	16500	13200	10500	8100	6100	4500
SHR151	30	69000	64500	54300	45200	37300	30500	25600	19600	15300	11700	8900
	40	58700	54800	46200	38400	31700	25900	21800	16700	13000	9900	7500
4RS151L	30				58500	48400	39700	32200	25750	20250	15560	11630	8350
	40				49850	41150	33600	27100	21500	16730	12660	9240	6380
	50					33950	27600	22050	17330	13270	9820	6920
4RS251H	30	90700	83200	69700	57900	47750	38950	31350	24800	19210	14460	10460
	40	77400	71000	59500	49400	40650	33000	26450	20800	15930	11800	8320
	50	64500	59100	49500	41000	33600	27200	21600	16830	12740	9260	6340
4RS201L	30				67100	55500	45400	36750	29350	23000	17600	13060	9260
	40				57200	47300	38700	31200	24800	19250	14540	10540	7160
	50					38750	31650	25450	20100	15480	11510	8120
4RS301H	30	103800	95300	79900	66500	54900	44900	36250	28800	22450	17040	12480
	40	89100	81800	68600	57000	47000	38250	30700	24200	18610	13860	9850
	50	74300	68200	57100	47400	38900	31500	25100	19580	14840	10810	7410
6RS251L	30				87900	72500	59300	47800	38000	29700	22650	16740	11850
	40				74700	61600	50200	40400	31900	24700	18590	13440	9130
	50					50500	41150	33000	25950	19920	14760	10390
6RS351H	30	136000	124800	104500	86900	71600	58400	47000	37200	28800	21700	15720
	40	116300	106600	89300	74100	60900	49450	39600	31100	23800	17670	12480
	50	96600	88600	74100	61400	50400	40700	32400	25250	19160	14000	9670
6RS321L	30				98300	81200	66400	53600	42700	33350	25400	18760	13210
	40				84000	69300	56600	45550	36050	27900	21000	15130	10210
	50					57600	46900	37600	29550	22600	16720	11710
6RS401H	30	156100	143200	120000	99900	82500	67400	54300	43150	33600	25550	18730
	40	133400	122400	102700	85400	70300	57300	46000	36300	28000	20900	14940
	50	110800	101800	85400	70900	58300	47350	37800	29550	22500	16450	11330
6RS401L	30				118800	98100	80100	64700	51400	40100	30500	22400	15600
	40				100900	83100	67600	54300	42800	32950	24600	17570	11680
	50					68300	55300	44050	34300	26050	18990	13060
6RS501H	30	184400	169300	142200	118600	98100	80400	65200	52100	40900	31400	23450
	40	157900	145000	121700	101300	83600	68300	55000	43600	33850	25600	18620
	50	131000	120200	100800	83800	68900	56000	44800	35150	26950	19960	14090
2YL-2	30				10110	8340	6810	5490	4360	3390	2570	1880	1300
	40				8490	68980	5670	4530	3560	2720	2020	1420	920
	50				6900	5640	4550	3600	2780	2080	1490	990
2YH-3	30	15940	14630	12260	10200	8420	6870	5540	4400	3420	2590	1890
	40	13510	12390	10380	8610	7080	5750	4600	3610	2760	2040	1430
	50	11110	10180	8500	7030	5740	4630	3660	2820	2110	1510	1000
2YL-3	30				12470	10290	8400	6780	5380	4190	3180	2330	1630
	40				10510	8650	7040	5640	4440	3420	2550	1810	1200
	50				8590	7050	5710	4550	3540	2690	1950	1340
2YH-4	30	19440	17840	14960	12450	10280	8400	6770	5380	4190	3170	2320
	40	16470	15110	12660	10520	8660	7050	5650	4450	3420	2540	1810
	50	13550	12430	10400	8620	7070	5720	4550	3540	2690	1960	1340
4YL-3	30				13720	11330	9260	7470	5940	4630	3510	2580	1800
	40				11560	9520	7740	6200	4880	3750	2790	1980	1310
	50				9450	7740	6260	4970	3860	2910	2110	1430
4YH-5	30	21550	19790	16590	13810	11400	9320	7520	5970	4650	3530	2580
	40	18240	16740	14020	11650	9580	7790	6240	4900	3760	2790	1970
	50	14970	13730	11470	9500	7780	6280	4980	3860	2900	2090	1410
4YL-4	30				17330	14290	11660	9400	7450	5800	4390	3210	2220
	40				14440	11870	9650	7720	6070	4650	3450	2440	1590
	50				11650	9550	7720	6130	4760	3590	2590	1750
4YH-6	30	27500	25200	21100	17580	14500	11830	9530	7550	5860	4420	3210
	40	23150	21250	17780	14750	12120	9840	7860	6160	4700	3470	2420
	50	18930	17360	14490	11980	9790	7890	6240	4820	3600	2570	1710
4YL-5	30				21100	17420	14220	11470	9100	7080	5370	3930	2730
	40				17650	14520	11810	9460	7440	5720	4250	3010	1980
	50				14300	11730	9490	7550	5880	4440	3220	2190
4YH-7	30	32600	29900	25000	20800	17120	13950	11210	8860	6860	5160	3720
	40	27500	25200	21100	17490	14350	11630	9270	7250	5510	4040	2800
	50	22500	20600	17210	14230	11620	9350	7380	5690	4240	3010	1980
4YL-6	30				24950	20650	16900	13670	10900	8540	6530	4840	3420
	40				21100	17420	14200	11420	9030	6980	5240	3770	2540
	50				17320	14220	11520	9190	7180	5460	4000	2770
4YH-9	30	38800	35600	29900	24900	20600	16880	13660	10890	8530	6530	4840
	40	32850	30150	25300	21100	17410	14210	11440	9050	7000	5250	3770
	50	27050	24850	20900	17380	14310	11620	9280	7240	5480	3960	2660
4YL-8	30				33050	27250	22200	17890	14170	10990	8300	6040	4150
	40				27750	22800	18480	14760	11560	8830	6520	4580	2960
	50					18350	14790	11710	9070	6800	4880	3260
4YH-12	30	51500	47200	39450	32750	26900	21900	17550	13830	10650	7960	5700
	40	43500	39850	33300	27550	22600	18260	14530	11320	8590	6270	4320
	50	35400	32400	27050	22350	18230	14650	11550	8880	6590	4650	3020
4YL-10	30				38300	31600	25750	20700	16390	12690	9550	6910	4690
	40				32300	26500	21500	17130	13400	10220	7520	5240	3350
	50					21500	17290	13660	10550	7890	5640	3760
4YH-15	30	61500	56400	47100	39050	32100	26000	20800	16320	12490	9240	6500
	40	52200	47850	39950	33050	27050	21850	17360	13490	10190	7390	5020
	50	42600	39000	32500	26750	21800	17430	13680	10460	7710	5380	3420
4YL-12	30				44000	36250	29550	23750	18810	14580	11000	7980	5470
	40				37300	30600	24800	19810	15510	11840	8740	6120	3950
	50					24850	20000	15820	12210	9120	6510	4300
4YH-20	30	71000	65100	54500	45250	37200	30250	24250	19070	14640	10860	7660
	40	60500	55400	46250	38200	31250	25200	20000	15530	11730	8510	5820
	50	49900	45650	37900	31100	25250	20150	15760	12010	8840	6180	3980
4VL-15	30				58500	48400	39700	32200	25750	20250	15560	11630	8350
	40				49850	41150	33600	27100	21500	16730	12660	9240	6380
	50					33950	27600	22050	17330	13270	9820	6920
4VH-25	30	90700	83200	69700	57900	47750	38950	31350	24800	19210	14460	10460
	40	77400	71000	59500	49400	40650	33000	26450	20800	15930	11800	8320
	50	64500	59100	49500	41000	33600	27200	21600	16830	12740	9260	6340
4VL-20	30				67100	55500	45400	36750	29350	23000	17600	13060	9260
	40				57200	47300	38700	31200	24800	19250	14540	10540	7160
	50					38750	31650	25450	20100	15480	11510	8120
4VH-30	30	103800	95300	79900	66500	54900	44900	36250	28800	22450	17040	12480
	40	89100	81800	68600	57000	47000	38250	30700	24200	18610	13860	9850
	50	74300	68200	57100	47400	38900	31500	25100	19580	14840	10810	7410
6WL-25	30				87900	72500	59300	47800	38000	29700	22650	16740	11850
	40				74700	61600	50200	40400	31900	24700	18590	13440	9130
	50					50500	41150	33000	25950	19920	14760	10390
6WH-35	30	136000	124800	104500	86900	71600	58400	47000	37200	28800	21700	15720
	40	116300	106600	89300	74100	60900	49450	39600	31100	23800	17670	12480
	50	96600	88600	74100	61400	50400	40700	32400	25250	19160	14000	9670
6WL-30	30				98300	81200	66400	53600	42700	33350	25400	18760	13210
	40				84000	69300	56600	45550	36050	27900	21000	15130	10210
	50					57600	46900	37600	29550	22600	16720	11710
6WH-40	30	156100	143200	120000	99900	82500	67400	54300	43150	33600	25550	18730
	40	133400	122400	102700	85400	70300	57300	46000	36300	28000	20900	14940
	50	110800	101800	85400	70900	58300	47350	37800	29550	22500	16450	11330
6WL-40	30				118800	98100	80100	64700	51400	40100	30500	22400	15600
	40				100900	83100	67600	54300	42800	32950	24600	17570	11680
	50					68300	55300	44050	34300	26050	18990	13060
6WH-50	30	184400	169300	142200	118600	98100	80400	65200	52100	40900	31400	23450
	40	157900	145000	121700	101300	83600	68300	55000	43600	33850	25600	18620
	50	131000	120200	100800	83800	68900	56000	44800	35150	26950	19960	14090
6WDL-20	30								31900	27450	23300	19440	15910	12760	10020	7690	5770	4230
	40								30600	26350	22350	18610	15230	12240	9640	7420	5540
	50								29350	25200	21350	17810	14630	11800	9280
6WDL-25	30								36200	31300	26600	22250	18220	14620	11480	8830	6630	4870
	40								34900	30100	25500	21300	17420	14000	11040	8500	6350
	50								33450	28750	24350	20350	16720	13490	10620
6WDL-30	30								43400	37400	31750	26500	21700	17420	13690	10540	7920	5800
	40								41500	35700	30300	25300	20700	16680	13170	10150	7590
	50								39500	34000	28850	24100	19870	16060	12650

Relating to 20ºC suction gas temperature,50Hz,without liquid subcooling.
Additional cooling or limited suction gas temperature.
Additional cooling and CIC system.

Model	Nominal Power HP/KW	Displacement m³/h 50Hz	Number of Cylinders× Diameter×Stroke	Exhaust & Suction Valve mm/In		Filling Oil Volume L	Power V/ph/Hz	Electrical Parameter		Crankcase Heater (220V)/W	Oil Supply Method	Weight (Including Oil) /Kg
				DL Exhaust Valve	SL Suction Valve			Max Operating Current (A)	Starting/ Locked Current (A)
SHR31 SHR31A	3/2.2	12.2/14.6	2×φ47.6×39.2	Φ19.05 (3/4")	Φ19.05 (3/4")	1.25	380-420/3/50 440-480/3/60	5.2 5.7	24/26 30/32	60	Splashing Lubrication	62 63
SHR41	4/3	14.7/17.8	2×φ54×37	Φ19.05 (3/4")	Φ25.4 (1")	1.25		7.6	38/44	60		85
SHR51 SHR51A	5/3.7	18.4/22.1	2×φ54×46	Φ19.05 (3/4")	Φ25.4 (1")	1.85		7.6 8.6	38/44 53/58	60		87 91
SHR81	8/5.5	26.6/32.1	2×φ64×48	Φ25.4 (1")	Φ31.75 (1+1/4")	3.5		15	74/81	120		133
SHR101 SHR101A	10/7.5	36/43.2	2×φ64×64	Φ25.4 (1")	Φ31.75	3.5		15.6 17.6	93/103 112/126	120		137 140
SHR151 SHR151A	15/10.5	54/64.8	3×φ64×64	Φ28.58 (1+1/8")	Φ38.1 (1+1/2")	4.8		22.3 24.3	133/150 162/184	180		172 175
SHR151H	15/10.5	54/64.8	3×φ64×64	Φ28.58 (1+1/8")	Φ38.1 (1+1/2")	4.8		28	162/184	180		180
4RS151L	15/10.5	73.7	4×φ70×55	Φ28 (1+1/8")	Φ42 (1+5/8")	4		31	81/132	140	Forced-lubrication	183
4RS251H	25/18.5	73.7	4×φ70×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		45	116/193	140		203
4RS201L	20/15	84.6	4×φ75×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		37	97/158	140		192
4RS301H	30/22	84.6	4×φ75×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		53	135/220	140		206
6RS251L	25/18.5	110.5	6×φ70×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		45	116/193	140		224
6RS351H	35/25.5	110.5	6×φ70×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		61	147/262	140		235
6RS321L	30/22	126.8	6×φ75×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		53	135/220	140		228
6RS401H	40/30	126.8	6×φ75×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		78	180/323	140		238
6RS401L	40/30	151.6	6×φ82×55	Φ42 (1+5/8")	Φ54 (2+1/8")	4.75		78	180/323	140		239
6RS501H	50/37	151.6	6×φ82×55	Φ42 (1+5/8")	Φ54 (2+1/8")	4.75		92	226/404	140		241
2YL-2	2/1.5	13.4	2×Φ50×39.3	φ16(5/8")	φ22 (7/8")	1.5	220-240/ 380-420Y/3/50 265-290/ 440-480Y/3/60	11.9/6.9	53.7/30.7	120	Centrifugal lubrication	67.5
2YH-3	3/2.2	13.4	2×Φ50×39.3	φ16(5/8")	φ22 (7/8")	1.5		13.5/7.8	64/37	120		70.5
2YL-3	3/2.2	16.2	2×Φ55×39.3	φ16(5/8")	φ22 (7/8")	1.5		14.8/8.5	64/37	120		70
2YH-4	4/3	16.2	2×Φ55×39.3	φ16(5/8")	φ22 (7/8")	1.5		16.4/9.4	76.6/44.2	120		70
4YL-3	3/2.2	18.1	4×φ41×39.3	φ16(5/8")	φ22 (7/8")	2		15.9/9.2	76.6/44.2	120		82
4YH-5	5/3.7	18.1	4×φ41×39.3	φ16(5/8")	φ22 (7/8")	2		18.7/10.8	107.7/62.2	120		86
4YL-5	5/3.7	26.8	4×φ50×39.3	Φ22 (7/8")	Φ28 (1+1/8")	2		23.4/13.5	107.7/62.2	120		85.5
4YH-7	7/5.1	26.8	4×φ50×39.3	Φ22 (7/8")	Φ28 (1+1/8")	2		27.5/15.9	142.8/82.4	120		88.5
4YL-6	6/4.4	32.5	4×φ55×39.3	Φ22(7/8")	Φ28 (1+1/8")	2		27.5/15.9	142.8/82.4	120		90.5
4YH-9	9/6.6	32.5	4×φ55×39.3	Φ22 (7/8")	Φ28 (1+1/8")	2		34.5/20	142.8/82.4	120		90.5
4YL-8	8/5.5	41.3	4×φ60×42	Φ28 (1+1/8")	Φ35 (1+3/8")	2.6	380-420YY/3/50 440-480YY/3/60	17	49/81	120		134
4YH-12	12/8.8	41.3	4×φ60×42	Φ28 (1+1/8")	Φ35 (1+3/8")	2.6		24	69/113	140		141
4YL-10	10/7.5	48.5	4×φ65×42	Φ28 (1+1/8")	Φ35 (1+3/8")	2.6		21	59/99	140		139
4YH-15	15/10.5	48.5	4×φ65×42	Φ28 (1+1/8")	Φ42 (1+5/8")	2.6		31	81/132	140		147
4YL-12	12/8.8	56.2	4×φ70×42	Φ28 (1+1/8")	Φ35 (1+3/8")	2.6		24	69/113	140		141
4YH-20	20/15	56.2	4×φ70×42	Φ28 (1+1/8")	Φ42 (1+5/8")	2.6		37	97/158	140		150
4VL-15	15/10.5	73.7	4×φ70×55	Φ28 (1+1/8")	Φ42 (1+5/8")	4		31	81/132	140	Forced-lubrication	183
4VH-25	25/18.5	73.7	4×φ70×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		45	116/193	140		203
4VL-20	20/15	84.6	4×φ75×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		37	97/158	140		192
4VH-30	30/22	84.6	4×φ75×55	Φ28 (1+1/8")	Φ54 (2+1/8")	4.5		53	135/220	140		206
6WL-25	25/18.5	110.5	6×φ70×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		45	116/193	140		224
6WH-35	35/25.5	110.5	6×φ70×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		61	147/262	140		235
6WL-30	30/22	126.8	6×φ75×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		53	135/220	140		228
6WH-40	40/30	126.8	6×φ75×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		78	180/323	140		238
6WL-40	40/30	151.6	6×φ82×55	Φ42 (1+5/8")	Φ54 (2+1/8")	4.75		78	180/323	140		239
6WH-50	50/37	151.6	6×φ82×55	Φ42 (1+5/8")	Φ54 (2+1/8")	4.75		92	226/404	140		241
6WDL-20	20/15	110.5	6×φ70/70×55	Φ35 (1+3/8")	Φ42 (1+5/8")	4.75		37	97/158	140		220
6WDL-25	25/18.5	126.8	6×φ75/75×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		45	116/193	140		233
6WDL-30	30/22	151.6	6×φ82/82×55	Φ35 (1+3/8")	Φ54 (2+1/8")	4.75		53	135/220	140		234
