Product Specifications
| Prod Model: |
MB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material:ss304: |
capacity:3000-10000bph |
| Packaging Materials: |
Plastic |
| Application: |
Machinery & Hardware |
Product Description

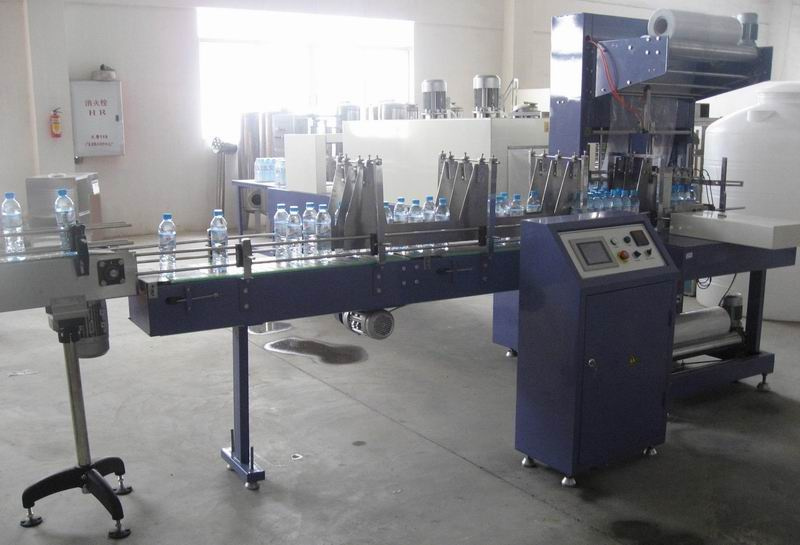

1. Thermal shrinkage area adopts dual recycling thermal wind to form thermal current rotating in the area, in order to ensure temperature equilibrium in the shrinkage area.
2. Safe automatic protection systems such as photoelectric detection, Chinese indication of failure diagnosis, alarm and automatic half of failure, etc.
3. PLCmicroprocessor control, operating on touch screen, words and numeric display, automatic counting, automatic counting, automatic stepless regulation, easy to operation.
4. Thermal shrinkage chamber adopts infrared heating to save energy.
5. Continuous working temperature difference between thermal shrinkage and thermal sealing stable.
6. Membrane bag packing is adjustable according to size of packing articles for various packing size.
7. Material conveyor belt has function of extending and shortening for short or soft packing articles.
Application Area:
Paper carton or other similar article arraying and stacking, automatic material categorizing, automatic membrane packaging and bag packaging of articles, automatic package molding by hot air shrinkage, such as solid articles of medical, food, drinking, electronic and daily commodities industries.
Packaging Materials: All thermal shrinkage membranes, such as POF etc
Main technical parameters
Output: 10packages/min (Varies with Packaging size)
Packaging size:
Max Length: 560mm
Max Width: 300mm
Max Height: 400mm
Working Noise: ≤65dB(A)
Overall Dimensions:
Shrinkage Machine: 5150*2470*1940mm
Conveyor belt: 2300*1000*1050mm
Weight: 1000kg
Zhangjiagang Beierde Beverage Machinery Co., Ltd., located by the side of the Yangtze River, National Civilization City- China Zhangjiagang City, enjoys pleasant scenery and convenient communications of land ways and water ways, renowned as " A land of fish and rice" and " An oasis of the South Yangtze River".
As the leading beverage bottling machinery in China, we own more than 500 production lines running all over the world.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.2000-23000 BPH Table-Water Bottling Line;
2.2000-16000 BPH Hot Bottling Line;
3.2000-15000 BPH Carbonated Beverage Bottling Line;
4.100-1800 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. PET Preform Injector and Bottle Blow moulding machine;
6. Water Treatment;
7. Packing machine;
8. Carbonating Mixer;
9. Turn key Project.
Our company regards "Honesty first and Quality first" as our management principle and has set up a strict quality control system.
