Product Specifications
Prod Model: |
GH-3015L+SF-4525 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shrink Film: |
POF |
Packing Speed: |
15 M/Min |
Screen: |
Touch |
Packing Type: |
Fully Closed |
Applications: |
Pallet,Ladder,Furniture, Mattress,Carton |
Voltage: |
AC 380/220V 3pH 50/60Hz+AC 380/220V 3pH 50/60Hz |
Automatic Type: |
Fully Automatic |
Power: |
1.8kw +9kw |
Machine Type: |
Shrink Wrapping Machine |
Type: |
Automatic Wrapping Machine |
Automatic Grade: |
Automatic |
Driven Type: |
Electric |
Packaging Type: |
Bottles |
Applicable Industry: |
Apparel |
Application: |
Dairy Products |
Structure: |
Fully-Auto Side Sealer |
Product Description

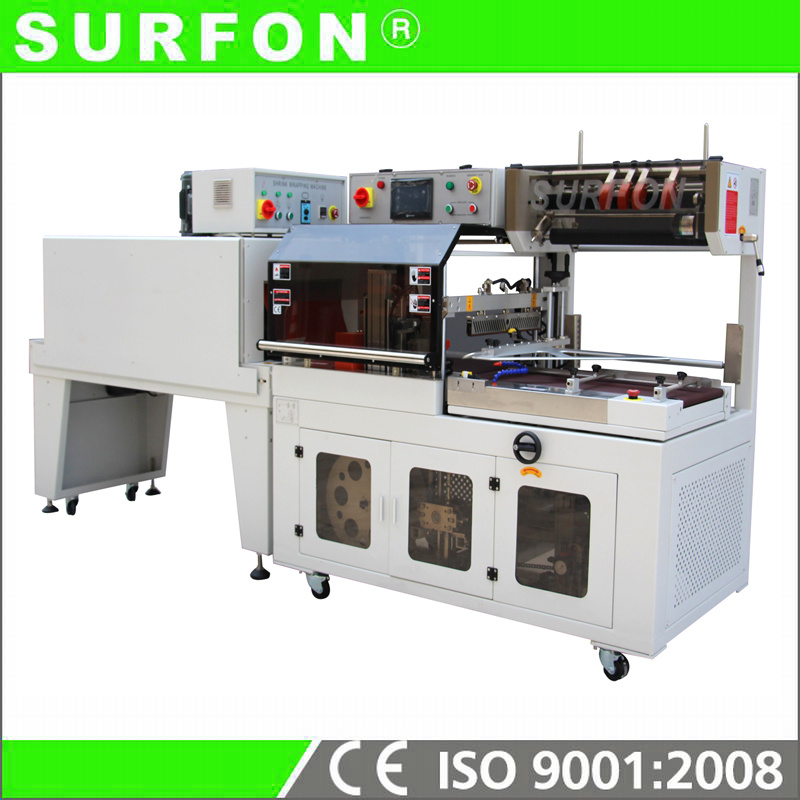

Automatic Board Side Sealer And Shrink Wrapping Machine
Video link : http://www.youtube.com/watch?v=wYdseGChR90&feature=youtu.be
Features:
1. GH-3015L is an economical fully-auto unmanned operation side sealer by our company's independent research and development, which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width;
2. The horizontal blade of sealing part adopts vertical driving, while the vertical cutter uses international advanced thermostatic side cutter; The sealing line is straight and strong and we can guarantee seal line in the middle of the product to achieve perfect sealing effect;
3. When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability;
4. The machine adopts the most advanced Schneider PLC programmable controller, with safety protection and alarm devices, while the sealing system can have a continuous sealing order without replacement; Maintenance is very simple;
5. Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect;
6. Two groups of horizontal and vertical electric eyes are easy to switch for thin or small packages which can easily complete sealing packaging operations;
7. Automatic rolling waste material : Using a separate motor to control which is not too loose or too tight to crack and is easy to remove the waste;
8. It has automatic blowing function;
9. Front in feeding power conveyor and back non-power storage table can be selected as your demands.
Technical parameter:
Model | GH-3015L | SF-4525 |
Power | 1.8kw | 9 kw |
Power Supply | AC 380/220V 3PH 50/60Hz | AC 380/220V 3PH 50/60Hz |
Max.Packing Size L×W×H | L(Unlimited)*W300*H150mm | 1000*300*200mm |
Tunnel Size L×W×H | / | 1100*450*250mm |
Sealing Blade Length | 490mm | / |
Packing Speed | 15m/min. | 0-15m/min. |
External Air Source | 6-8kg/cm2 | / |
Shrink Film | PE/POF | POF |
Machine Size L×W×H | 1615×960×1550mm | 1300×800×1520mm |
Packaging Size L×W×H | 1700×950×1700mm | 1350×850×1670mm |
G./N. Weight | 350/310kgs | 320/280kgs |
The Parts we Use:
Sealer Parts | Brand | Country |
Sensor | Banner | USA |
Solid Relay | Aole | Taiwan |
Cylinder | Airtec | Taiwan |
Solenoid Valve | Airtec | Taiwan |
Gear Motor | Li Ming | Taiwan |
PLC | OMRON | Japan |
Film Motor | Haitec | Taiwan |
Intermediate Relay | SIEMENS | Germany |
Temperature Controller | Autonics | Korea |
Time Relay | Schneider | France |
Electrical Braker | Schneider | France |
Gas Spring | GUTE | China |
Tunnel Parts | Brand | Country |
Sensor | Banner | USA |
Solid Relay | Aole | Taiwan |
Gear Motor | Li Ming | Taiwan |
Intermediate Relay | SIEMENS | Germany |
Temperature Controller | OMRON | Japan |
Time Relay | Schneider | France |
Electrical Braker | Schneider | France |
Gas Spring | GUTE | China |
